Products

ACCENT  |  1.25″ dia.
3W (200lm)  |  12V  |  HK LED

Our smallest Accent Light for low plantings, small trees, and discreet highlights.

Aluminum Black



  • 3W integrated HK LED delivering 200 lumens. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, the anodized and powder coated to create a highly durable, marine grade finish.
  • Innovative hydrophobic lens coating ensures clean, bright light for years to come.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled Glare Shield and ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOAL08

Overview
Accessories
Specification

Our smallest Accent Light delivers up to 200 lumens from an integrated HK LED. It is ideal for illuminating small trees under 10 feet, sculptural elements, and low plantings. The small fixture and soft output make it a smart choice for discreet residential accents.

Compact and precise, the 1.25″ ARTOAL08 Accent Light is machined from billet aluminum, anodized, and then powder coated to create a robust, marine-grade finish. Integrated HK LED delivers reliable, long-life performance.

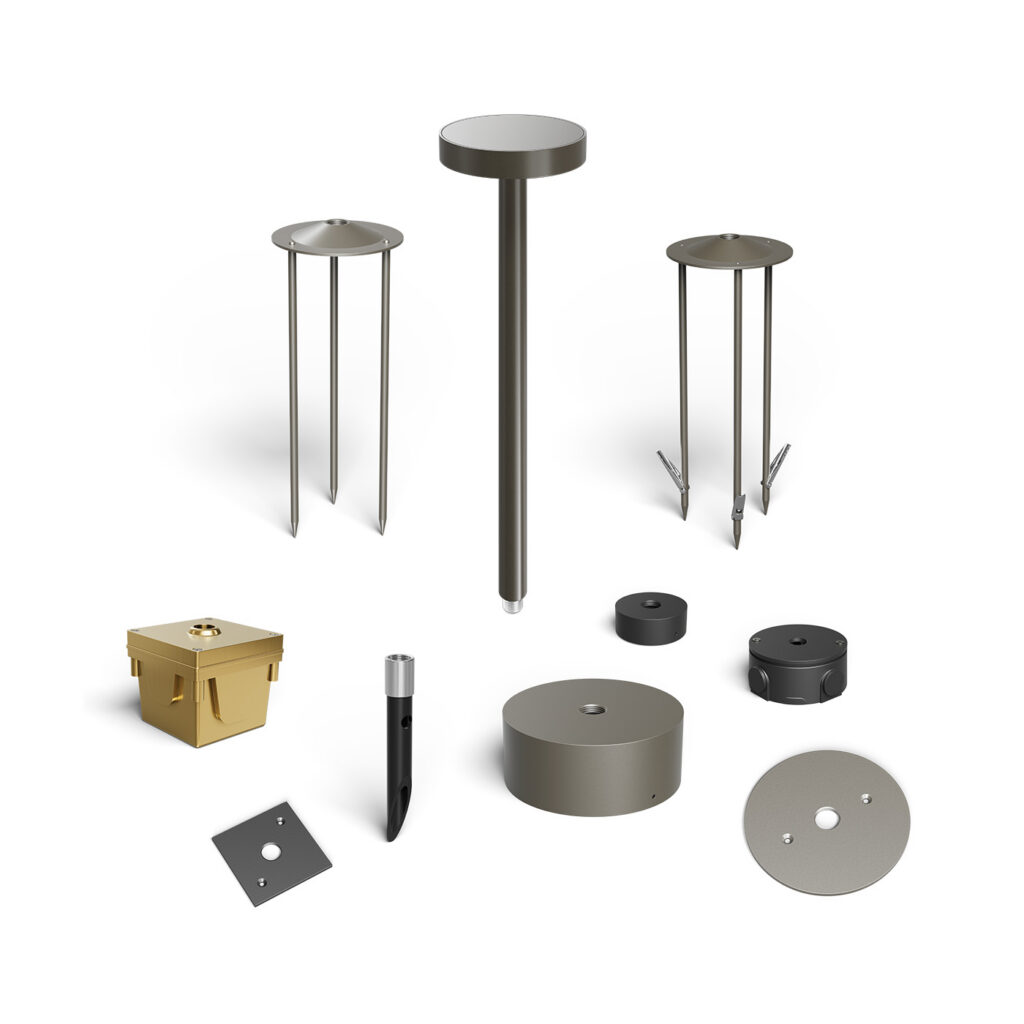

Accessories

Field-changeable lenses, single- or three-prong in-ground stakes, and color-matched architectural mounts expand ARTOAL08 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AGSA

GLARE SHIELD

Angled Glare Shield

ALVR

OPTICAL

Hexcel louver



AOSL

OPTICAL

Overall Spread Lens

ALSL

OPTICAL

Linear Spread Lens

ASOL

OPTICAL

SOLITE Soft Focus Lens

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AJB-1

GROUND MOUNT

Brass Junction Box

AEXS-11-12

MOUNTING / EXTENSION

12″ Square Extension Stem

AEL-11

MOUNTING / EXTENSION

Stem Mount Angle Link

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOAL08 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Hood and Glare Shield

Weeping Hood Style. Angled Glare Shield available. (See page 4 of Spec Sheet for details)

LIGHT OUTPUT

Optics

Narrow (19º), Medium (26º), and Wide (51º) beam spread options available. Accepts up to 3 accessory optical accessories (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

3W HK LED, delivering 200 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOAL08 Dimensions

The ARTOAL08 Accent Light is built to your specifications. Configure optics, light color, finish, and select from available glare shield and mounting options. Ships in 2 to 4 weeks.

WHERE TO BUY

Products

ACCENT  |  1.65″ dia.
7W (675lm)  |  12V  |  HK LED

A preferred residential Accent Light for trees up to 80 feet, façades, and architectural features.

Aluminum Black



  • Compact and powerful round, directional 12V LED modern accent light for residential landscape and architectural environments. Most appropriate for medium to tall trees, architectural columns, and residential façades from 30 to 80 feet.
  • 7W integrated HK LED delivering 675 lumens. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • Innovative hydrophobic lens coating ensures clean, bright light for years to come.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled Glare Shield and ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOAL11

Overview
Accessories
Specification

The preferred residential outdoor Accent Light delivers up to 675 lumens from an integrated HK LED. Its compact form and powerful output for its size make it ideal for illuminating medium to tall trees, architectural columns, and residential façades from 30 to 80 feet. Multiple fixed beam optic options support precise lighting control.

Compact 1.65″ ARTOAL11 Accent Light is machined from billet aluminum, then anodized and powder coated for a robust, marine-grade finish. Integrated HKLED ensures long-life performance. Optional Angled Glare Shield eliminates visible light at the source.

Accessories

Field-changeable lenses, single- or three-prong in-ground stakes, and color-matched architectural mounts expand ARTOAL11 performance and installation versatility.

COMPATIBLE ACCESSORIES

AGSA

GLARE SHIELD

Angled Glare Shield

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

ALVR

OPTICAL

Hexcel louver

AOSL

OPTICAL

Overall Spread Lens

ALSL

OPTICAL

Linear Spread Lens

ASOL

OPTICAL

SOLITE Soft Focus Lens

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

AJB-1

GROUND MOUNT

Brass Junction Box

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AEXS-11-12

MOUNTING / EXTENSION

12″ Square Extension Stem

AEL-11

MOUNTING / EXTENSION

Stem Mount Angle Link

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOAL11 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Hood and Glare Shield

Weeping Hood Style. Angled Glare Shield available. (See page 4 of Spec Sheet for details)

LIGHT OUTPUT

Optics

Narrow (29º), Medium (40º), and Wide (57º)

beam spread options available. Accepts up

to 3 accessory optical accessories (hexcel

louver, optical lenses, etc.). Secured in place

with metal snap ring.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field.

Color Quality

CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

7W HK LED delivers 675 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOAL11 Dimensions

The ARTOAL11 Accent Light is built to your specifications. Configure optics, light color, finish, and select from available glare shield and mounting options. Ships in 2 to 4 weeks.

WHERE TO BUY

Products

ACCENT  |  2.25″ dia.
5 – 10W (500 – 950lm)  |  12V  |  HK LED

Our most powerful and only true adjustable-beam Accent Light. Winner of the CEDIA Smart Home Award for Best New Hardware 2025.

Aluminum Black



  • Our newest and most versatile directional low voltage (12V) LED Accent Light, features the Adjustable Beam Optic for precise light aiming residential landscape environments. Most appropriate to illuminate mature trees and larger architectural elements.
  • Adjustable Beam Optic enables easy beam angle adjustment from 14º to 70º with a quick hood slide, locking securely in place with a set screw for precise and reliable positioning.
  • 5W, 10W integrated HK LED delivering 500 to 950 lumens. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined and anodized aircraft grade aluminum (6061-T6). Powder coated to create a highly durable, marine and natatorium grade finish.
  • Innovative hydrophobic lense coating ensures clean, bright light for years to come.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Includes integrated weeping, Angled Glare Shield. Maintains less than 1% field light for superior glare control.
  • Modular components, field changeable LED.
  • Ground, surface, and canopy mounting options available.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOAL16

Overview
Accessories
Specification

Our most powerful and only true adjustable-beam Accent Light delivers up to 950 lumens from an integrated HK LED. The field-adjustable beam ranges from 14º to 70º and is ideal for illuminating mature trees and larger architectural elements. Beam spread can be fine-tuned on site and as the project evolves.

SEE THE DIFFERENCE

Timeless Design

The ARTOAL16 integrates cleanly into any landscape, combining timeless form with industrial precision. Its field-adjustable optic elevates the environment while letting the light take focus after dark.

Powerful Performance

The high-output ARTOAL16 delivers strong, adaptable illumination from its compact, adjustable form. It blends discreetly into the landscape without sacrificing impact on trees or architectural features.

Enduring Quality

Machined from aircraft-grade billet aluminum and finished to marine-grade standards, the ARTOAL16 is built for durability, corrosion resistance, and long-term performance in the harshest conditions.

With less than 1% field light and no glare at the fixture, the ARTOAL16 delivers clean, focused illumination exactly where it’s needed and nowhere else.

Accessories

Single or three-prong in-ground stakes and color-matched architectural mounts expand ARTOAL16 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AJB-1

GROUND MOUNT

Brass Junction Box

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

AEXS

MOUNTING / EXTENSION

12″ Square Extension Stem

AEL

MOUNTING / EXTENSION

Stem Mount Angle Link

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOAL16 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Hood and Glare Shield

Weeping Hood Style with integrated Angled Glare Shield.

LIGHT OUTPUT

Optics

The Adjustable Beam Optic allows precise beam angle adjustment from a very narrow 14º spotlight to an extra wide 70º flood, locking securely with the hood screw. It maintains less than 1% field light levels.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K CCT.

Color Quality

CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

5W, 10W HK LED delivers 500 to 950 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

UL Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant.

ARTOAL16 Dimensions

The ARTOAL16 Adjustable Accent Light is built to your specifications. Configure lumen output, light color, finish, and select from available mounting options. Ships in 2 to 4 weeks.



WHERE TO BUY

Products

ACCENT  |  2.25″ dia.
7.5W (640lm)  |  12V  |  SORAA, LED Lamp, Halogen

MR16 Lamp-based modern Accent Light for trees, palms, and architectural features.

Aluminum Black



  • Versatile round, directional MR16 (GU 5.3) modern accent light for residential landscape and outdoor architectural environments.
  • Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • Innovative hydrophobic lens coating ensures clean, bright light for years to come.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Field changeable optical lensing available.
  • Available with adjustable Angled Glare Shield and ground, surface, or canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOA16

Overview
Accessories
Specification

Our modern side-pivot Accent Light uses a replaceable MR16 lamp to deliver up to 640 lumens of flexible output. It’s ideal for highlighting trees, palms, or architectural elements where you want lamp choice and long-term serviceability. The distinctive side-pivot arm offers a clean, contemporary form.

Patented Thermobuster™ lamp base improves heat dissipation, allowing even the highest wattage SORAA® lamps to operate at full performance and lifespan.

Accessories

Field-changeable lenses, single or three-prong in-ground stakes, and color-matched architectural mounts expand ARTOA16 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AGSA

GLARE SHIELD

Angled Glare Shield

ALVR

OPTICAL

Hexcel Louver

AOSL

OPTICAL

Overall Spread Lens

ALSL

OPTICAL

Linear Spread Lens

ASOL

OPTICAL

SOLITE Soft Focus Lens

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AJB-1

GROUND MOUNT

Brass Junction Box

AEXS-16-12

MOUNTING / EXTENSION

12″ Square Extension Stem

AEL-16

MOUNTING / EXTENSION

Stem Mount Angle Link

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOA16 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Hood and Glare Shield

Weeping Hood Style. Angled Glare Shield available. (See page 4 of Spec Sheet for details)

LIGHT OUTPUT

Optics

Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Lamp Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring.

Light Engine

MR16 Halogen lamp or MR16 SORAA LED lamp. Provided SORAA Lamp is CRI 90 and available in 2700K or 3000K CCT. (More information in the SORAA MR16 GU5.3 lamp selection of SORAA website)

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen lamp.

Dimming

MLV, ELV Phase Control dimming. (Please refer to SORAA website for SORAA MR16 dimmer compatibility)

Lamp Base/Socket

Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOA16 Dimensions

The ARTOA16 Accent Light is built to your specifications. Configure lamp type, optics, finish, and select from available glare shield and mounting options. Ships in 2 to 4 weeks.



WHERE TO BUY

Products

ACCENT  |  2.25″ dia.
7.5W (640lm)  |  12V  |  SORAA, LED Lamp, Halogen

MR16 Lamp-based traditional Accent Light for trees, palms, and architectural features.

Aluminum Black



  • Versatile round, directional MR16 (GU 5.3) traditional Center Pivot accent light for residential landscape and outdoor architectural environments.
  • Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • Innovative hydrophobic lens coating ensures clean, bright light for years to come.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Field changeable optical lensing available.
  • Available with Angled Glare Shield and ground, surface, or canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOA16 CP

Overview
Accessories
Specification

This traditional center-pivot Accent Light uses a replaceable MR16 lamp to deliver up to 640 lumens of flexible output. It’s ideal for highlighting trees, palms, or architectural elements where you want lamp choice and long-term serviceability. The distinctive side-pivot arm offers a clean, contemporary profile.

Patented Thermobuster™ lamp base improves heat dissipation, allowing even the highest wattage SORAA® lamps to operate at full performance and lifespan.

Accessories

Field-changeable lenses, single- or three-prong in-ground stakes, and color-matched architectural mounts expand ARTOA16 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AGSA

GLARE SHIELD

Angled Glare Shield

ALVR

OPTICAL

Hexcel Louver

AOSL

OPTICAL

Overall Spread Lens

ALSL

OPTICAL

Linear Spread Lens

ASOL

OPTICAL

SOLITE Soft Focus Lens

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AEXR-16-12

MOUNTING / EXTENSION

12″ Round Extension Stem

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AJB-1

GROUND MOUNT

Brass Junction Box

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOA16 Center Pivot Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Hood and Glare Shield

Weeping Hood Style. Angled Glare Shield available. (See page 4 of Spec Sheet for details)

LIGHT OUTPUT

Optics

Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Lamp Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring.

Light Engine

MR16 Halogen lamp or MR16 SORAA LED lamp. Provided SORAA Lamp is CRI 90 and available in 2700K or 3000K CCT. (More information in the SORAA MR16 GU5.3 lamp selection of SORAA website)

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen lamp.

Dimming

MLV, ELV Phase Control dimming. (Please refer to SORAA website for SORAA MR16 dimmer compatibility)

Lamp Base/Socket

Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOA16 Center Pivot Dimensions

The ARTOA16 CP Accent Light is built to your specifications. Configure lamp type, optics, finish, and select from available glare shield and mounting options. Ships in 2 to 4 weeks.

WHERE TO BUY

Products

FLOOD  |  1.13″
3W (100lm)  |  12V  |  HK LED

Our smallest Flood Light for signage, low plantings, and soft architectural accents.

Aluminum Black



  • Our smallest and discrete 12V LED flood light for residential landscape environments. Most appropriate for the soft illumination of low plantings, signage, and architectural accents.
  • 3W integrated HK LED delivering 100 lumens of soft, pleasing light. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • 360º vertical and 360º horizontal adjustment via unique swivel stem design.
  • Integrated, innovative Glare Shield and Solite Lens minimizes glare and ensures soft, even distribution of light.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOFL08

Overview
Accessories
Specification

Our smallest Flood Light delivers up to 100 lumens from a compact 1.25” fixture. The integrated HK LED and soft, wide beam is perfect for the soft illumination of low plantings, signage, and architectural accents. The discreet profile and integrated glare shield help reduce source visibility day and night.

Integrated Glare Shield and Solite Lens minimize glare to deliver soft, even light distribution.

Accessories

Single or three-prong in-ground stakes and color-matched architectural mounts expand ARTOFL08 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

AJB-1

GROUND MOUNT

Brass Junction Box

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AEXS-11-12

MOUNTING / EXTENSION

12″ Square Extension Stem

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOFL08 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

Glare Shield

Integrated Glare Shield included.

LIGHT OUTPUT

Optics

Wide Flood Optic included with installed Solite Lens to deliver soft light and minimize glare.

Light Engine

Innovative HK LED light engine. CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

3W HK LED, delivers 100 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOFL08 Dimensions

The ARTOFL08 Flood Light is built to your specifications. Configure light color, finish and select from available mounting options. Ships in 2 to 4 weeks.


WHERE TO BUY

Products

IN-GRADE  |  1.00″ dia.

1.7W (150lm)  |  12V  |  HK LED

Ultra-compact 1″ step and marker light that installs anywhere and enhances details, plantings, and pathways.

Black Powder Coated Brass



  • Ultra-compact 1″ low voltage (12V) LED fixture for use as a Step, Marker, or In-Grade light in architectural outdoor and landscape applications.

  • 1.7W integrated HK LED delivering 150 lumens. 2700 – 3000K CCT.
  • Available in Standard Direct View, Glare Shield, Top Cover 360° and Top Cover 180°. Top Cover 360° and Top Cover 180° configurations meet Dark Sky requirements.
  • Installs vertically or horizontally into masonry, stone, wood, pavers, decking—anywhere a 1″ hole can be drilled or PVC sleeve cast.
  • Wet Location Listed, IP68 Standard.
  • Precision-machined from corrosion-resistant brass. Finishes include Black and Bronze.
  • 360° rotation adjustment after installation.
  • PVC Outer Sleeve simplifies installation in soil or poured concrete.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOGL1

Overview
Accessories
Specification

Compact and discreet, the ARTOGL1 is machined from solid brass and delivers 150 lumens with marine-grade durability. It installs into any drilled 1″ opening to highlight walls, plantings, steps, and pathways with subtle precision.

Focused illumination that shapes and defines the outdoor experience, delivering performance typically found in larger in-grade housings.

Installs in any nominal one-inch drilled hole. Placement in soil, decking, or concrete is simple, and the rotational aim system aligns the fixture cleanly without tools.

Explore the Complete Series

Download our brochure outlining features, performance specifications, and available configuration options.

VIEW PDF

Accessories

Field-configurable Shield Accessories let you shape the light effect as needed. Outer Sleeves simplify installation in concrete or soil.

COMPATIBLE ACCESSORIES

ASDV-G1

IN GROUND

Standard Direct View Glare Shield

AGLR-G1

IN GROUND

Glare Shield

A360-G1

IN GROUND

Top Cover 360º Glare Shield

A180-G1

IN GROUND

Top Cover 180º Glare Shield

AOS-G1

IN GROUND

PVC Outer Sleeve

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

ALVR

OPTICAL

Hexcel Louver

ALSL

OPTICAL

Linear Spread Lens

ASOL

OPTICAL

Solite lens

Specifications

ARTOGL1 Specs

BUILD

Materials

Machined from billet 360 brass with 316 stainless steel hardware and silicone placement gaskets.

Finish

Superior corrosion resistant Black or Bronze powdercoat for a robust marine grade finish.

Optional Shields

Glare, Top Cover 360° and Top Cover 180° Shields available.

LIGHT OUTPUT

Optics

Narrow (20°), Medium (35°), and Wide (60°) beam spread options available for Standard Direct View and Glare Shield Styles. Accepts a single optical accessory. Top Cover Style includes Shield Optimized optic

Light Engine

Innovative HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K or 3000K.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

1.7W HK LED delivers 150 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts directly in ground, poured concrete, or any material where a 1″ hole can be drilled, including any standard (schedule 40) 1″ PVC pipe. Optional PVC Outer Sleeve is available to aid installation. (See page 4 for details)

LISTINGS

CSA Listed for Wet Location, IP68 Standard. Standard Direct View and Top Cover 180° Shields are drive-over rated. Top Cover 360° and Top Cover 180° Shields meet Dark Sky requirements. RoHS Compliant.

ARTOGL1 Dimensions

The ARTOG1 Step & Marker Light is built to your specifications. Configure optics, shield style, light color, and finish. Ships in 2 to 4 weeks.

WHERE TO BUY

Products

FLOOD  |  2.25″ dia.

8W (500lm)  |  12V  |  HK LED

Our strong Flood Light for walls, hedges, and large-scale plantings.

Aluminum Black



  • Compact and powerful 12V LED round flood light for residential landscape and architectural environments. Most appropriate to illuminate walls, hedges, and large-scale plantings.
  • 8W integrated HK LED delivering 500 lumens. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • 360° vertical and 360° horizontal adjustment via unique swivel stem design.
  • Available ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOFL16

Overview
Accessories
Specification

Our most powerful Flood Light delivers up to 500 lumens from a compact 2.25″ form. Precision optics cast a wide, even light that is ideal for walls, hedges, and architectural surfaces. Balanced output reveals texture and form without glare.

For larger surfaces or broader reach, use ARTOFL16 fixtures in multiples to create a clean wall wash that backlights landscapes or highlights wall textures.

Accessories

Single or three-prong in-ground stakes and color-matched architectural mounts expand ARTOFL16 performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

AJB-1

GROUND MOUNT

Brass Junction Box

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

AEXF-12

MOUNTING / EXTENSION

12″ Flood Extension Stem

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOFL16 Specs

BUILD

Material

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

LIGHT OUTPUT

Optics

Includes Solite Soft Focus lens for smooth, even distribution of light.

Light Engine

Innovative HK LED light engine. CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

8W HK LED delivering 500 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details).

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOFL16 Dimensions

The ARTOFL16 Flood Light is built to your specifications. Configure light color, finish and select from available mounting options. Ships in 2 to 4 weeks.



WHERE TO BUY

Products

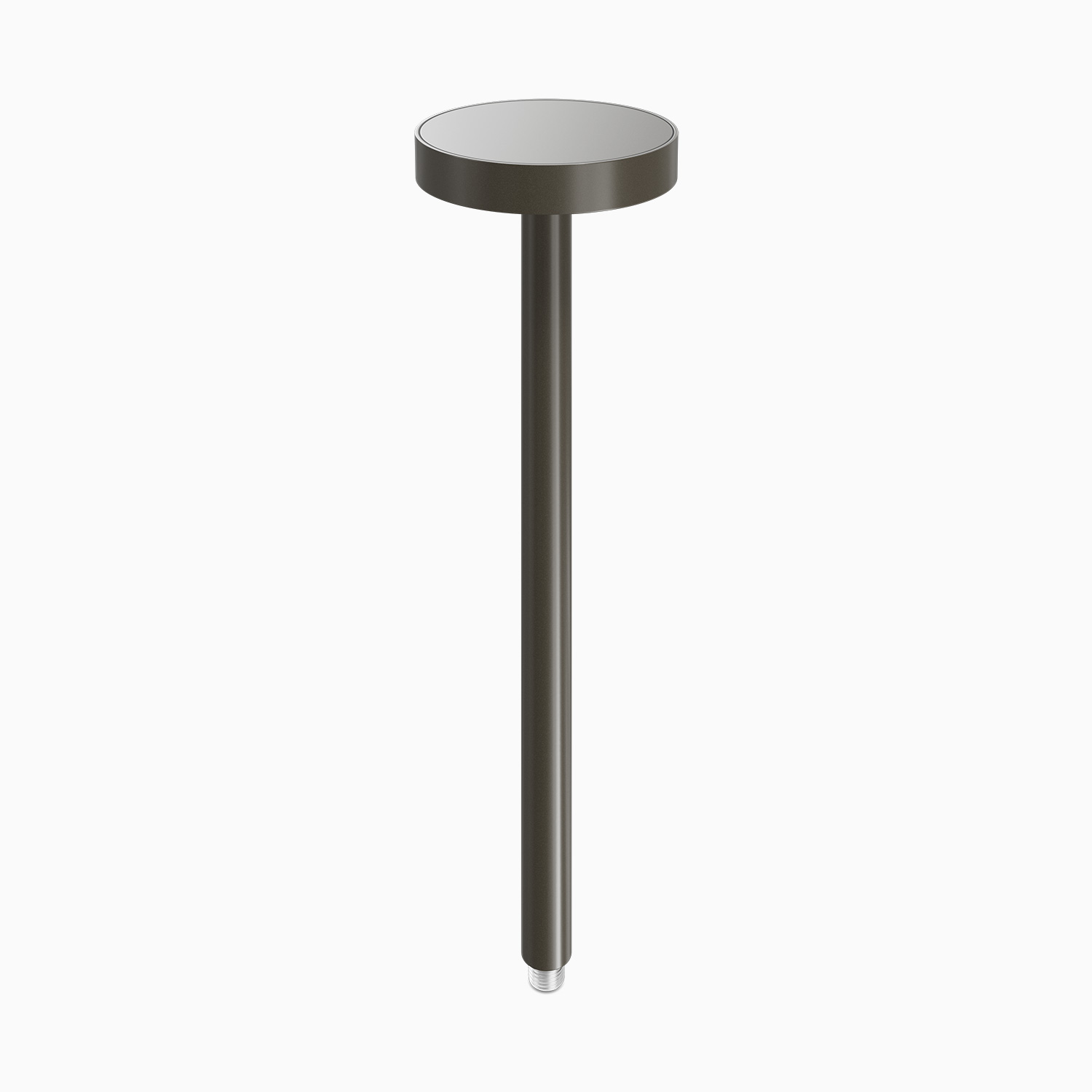

PATH  |  5.75″ dia.

1-3W (120-315lm)  |  12V  |  HK LED

Versatile low voltage (12V) LED fixture designed for architectural outdoor and landscape path and ground area lighting applications.

Aluminum Black



  • Minimalist center-mount design with a precision optical system delivering smooth, balanced 360° illumination.
  • 1W or 3W integrated HK LED delivers 120–315 lumens.
  • Available in 2700K or 3000K CCT.
  • Wet Location Listed. IP67 standard.
  • Precision crafted from machined 6061-T6 aluminum and die-cast A360 aluminum components, then anodized and powder coated for a highly durable, corrosion-resistant, marine-grade finish.
  • Available mounting heights of 18″ or 24″
  • Dark Sky compliant.
  • Full fixture with shade ships in 2 weeks.
SPEC SHEET
WHERE TO BUY

Radius

Overview
Accessories
Specification

FEWER FIXTURES.

MORE ELEGANT LAYOUTS.

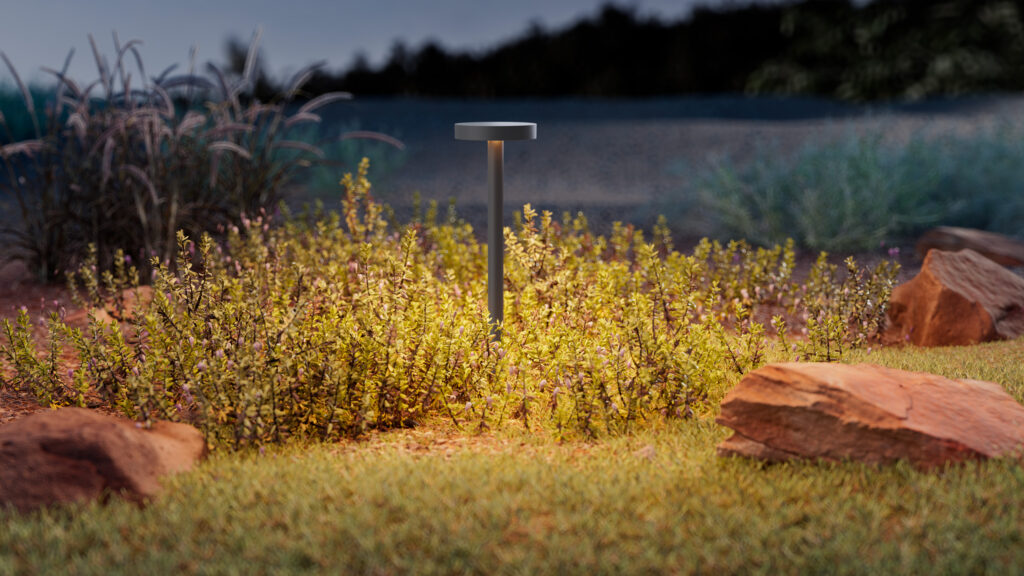

Radius delivers smooth, high-output illumination with refined optical control. Wider fixture spacing supports cleaner, more open landscape designs with fewer fixtures and a quiet visual presence.

PROFESSIONAL-GRADE,

WITH A TIMELESS PRESENCE

  • Up to 3W, 315 lumens from a compact path-scale fixture
  • 18″, 24″, and custom heights
  • Theft-resistant ground mounting
  • Designed for residential and architectural applications.

Precise, uniform light
without distraction

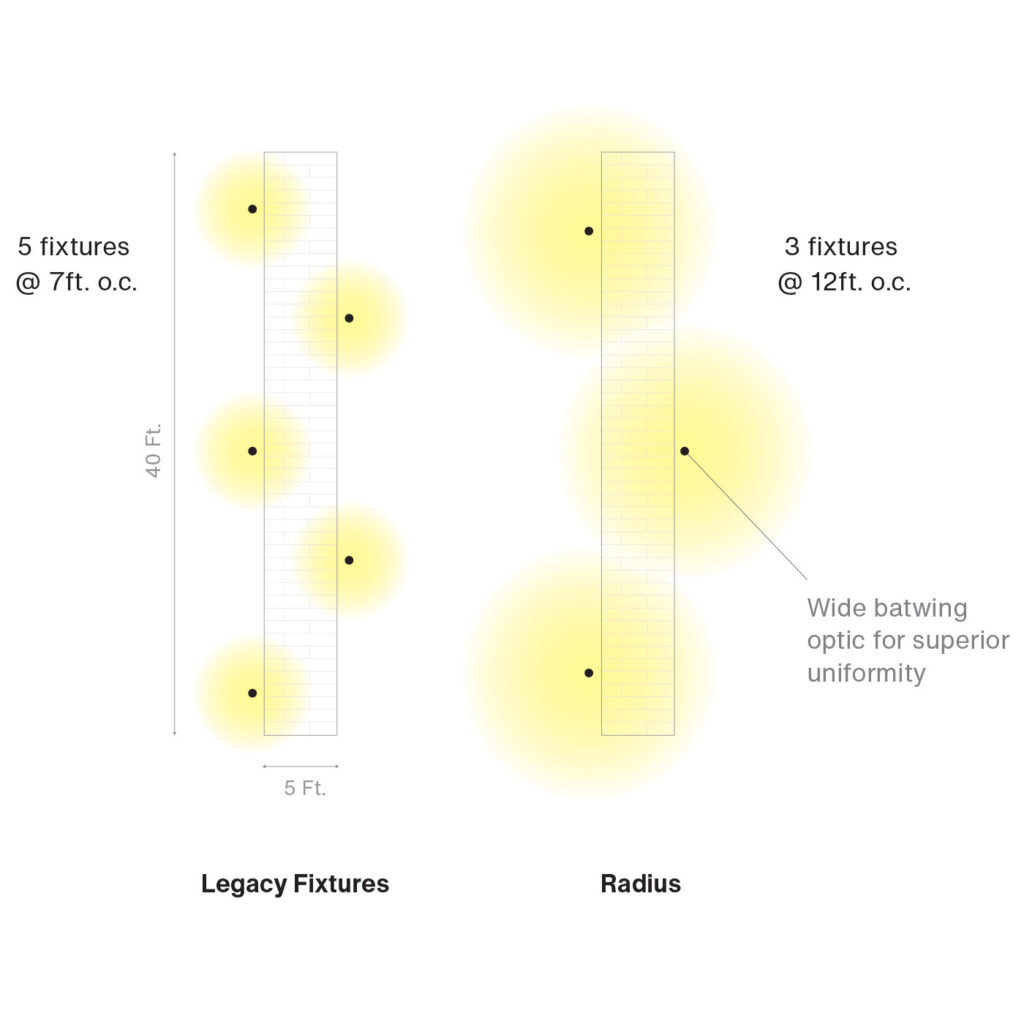

Higher output and controlled distribution extend spacing. Combined with higher mounting heights, this reduces fixture counts without sacrificing visual comfort.

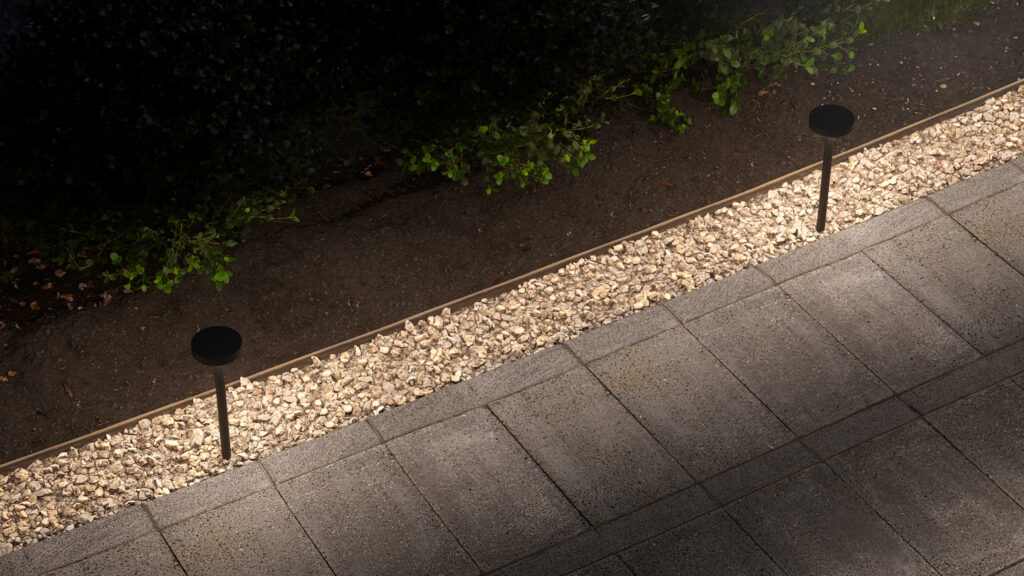

Light without visual noise

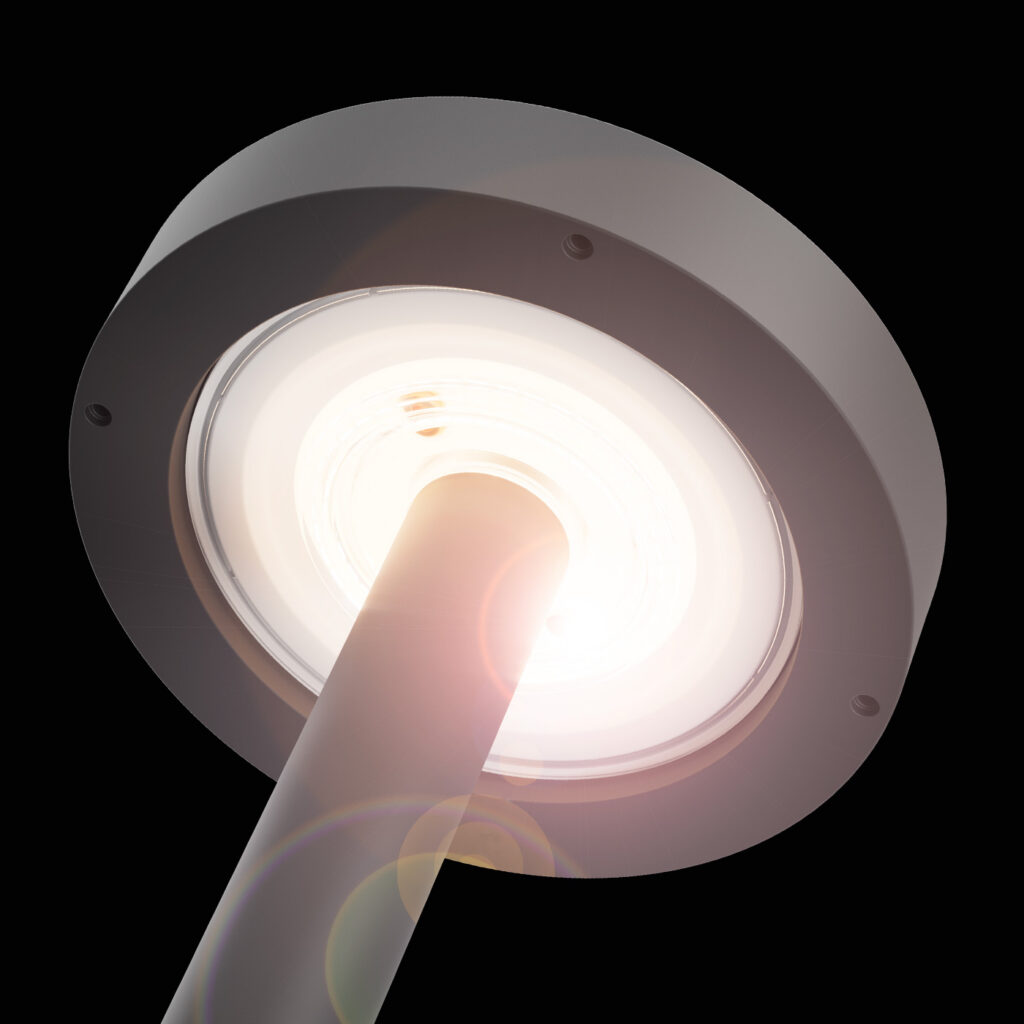

Precision optics keep the mounting stem dark and minimizes the visible light source, allowing paths, plantings, and architectural edges to read clearly. Controlled cutoff above the light source supports Dark Sky requirements.

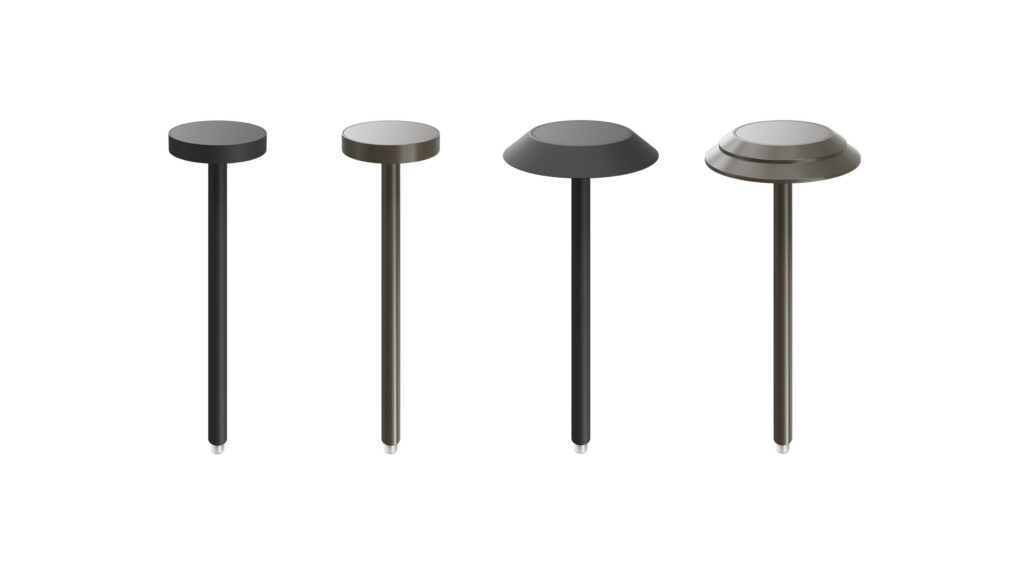

Customize the look, preserve the light

Available in modern and pagoda styles, these optional shades give the client more options to tailor the fixture’s look without affecting Radius performance.

Accessories

Flexible mounting. Stable installation.

Durable, corrosion-resistant construction is paired with mounting options for hardscape and softscape applications. Once installed, re-aiming and adjustment are unnecessary.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AMH02-12-RA

GROUND MOUNT

12″ Spike Ground Mount, Theft Resistant

AJB-1

GROUND MOUNT

Brass Junction Box

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

Radius Specs

BUILD

Materials

LIGHT MOUNT: Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel.



LIGHT HEAD: Die Cast A360 corrosion resistant aluminum with 316 stainless steel hardware.



SHADE: Die Cast A360 corrosion resistant aluminum.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish.

Shades

Optional Modern or Pagoda architectural shade accessories.

LIGHT OUTPUT

Optics

Precision engineered polycarbonate optical lens with batwing distribution for smooth, even illumination.

Light Engine

HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K, 3000K.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

1W, 3W delivers 120–315 lumens.

Dimming

MLV or ELV phase control dimming, or secondary 12VAC dimming.

MOUNTING

Mounts using 1/2″-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheets for details)

LISTINGS

CSA Listed for Wet Location, IP67 Standard. RoHS Compliant. Meets Dark Sky requirements.

Radius Dimensions

The Radius delivers a refined approach to residential path lighting, pairing precise illumination with a quiet architectural presence. Its advanced optical system casts smooth, welcoming light across walkways and surrounding landscapes while minimizing glare and visual distraction.

RADIUS SERIES BROCHURE
WHERE TO BUY

Products

PATH  |  5.75″ dia.

1W (100lm)  |  Solar |  HK LED

Radius Solar offers a more refined approach to solar lighting. Constructed to the same standards as our wired fixtures, it provides lasting performance and architectural quality well beyond conventional solar products.

Aluminum Black
  • Integrated photovoltaic system with onboard battery management for autonomous dusk-to-dawn operation.
  • Lithium Iron Phosphate (LiFePO₄) battery, user-replaceable for long-term serviceability.
  • Minimalist center-mount design with a precision optical system delivering smooth, balanced 360º illumination.
  • 1W integrated HK LED delivers 100 lumens. Available in 2700K or 3000K CCT.
  • Wet Location Listed. IP67 standard.
  • Precision crafted from machined 6061-T6 aluminum and die-cast A360 aluminum components, then anodized and powder coated for a highly durable, corrosion-resistant, marine-grade finish.
  • Custom photovoltaic glass lens resists hazing and daytime reflection.
  • Available mounting heights of 18″ or 24″.
  • Dark Sky compliant.
  • Full fixture with shade ships in 2 weeks.
SPEC SHEET
WHERE TO BUY

Radius Solar

Overview
Accessories
Specification

A REFINED

SOLAR EXPERIENCE

Radius Solar delivers architectural-grade path lighting with the same elegant form and controlled optical performance as Radius Low Voltage. It functions effortlessly where wiring is impractical or unavailable.

Built to the same standards as HK Lighting’s wired fixtures, Radius Solar is built as a lasting architectural lighting solution rather than a disposable solar product. Marine-grade materials and a tempered glass photovoltaic surface ensure long-term durability and consistent performance.

ENGINEERED SOLAR PERFORMANCE

  • 1W, 150 lumens
  • Custom low-reflective tempered glass photovoltaic collector
  • Automatic dusk-to-dawn operation with adaptive output
  • Lithium Iron Phosphate (LiFePO₄) battery
  • User-replaceable battery
  • 18″, 24″, and custom heights

Premium lithium battery

We use advanced Lithium Iron Phosphate (LiFePO₄) battery technology to provide dependable, long-lasting performance.



Developed for years of daily charging and nighttime operation, it delivers consistent illumination through changing seasons and temperatures.

Designed to age gracefully

Radius Solar features a custom tempered glass solar surface designed for long-term outdoor durability.



Unlike plastic collectors that can haze or discolor over time, the glass surface maintains a clean appearance, supports consistent solar charging, and integrates seamlessly into the fixture’s refined architectural design.

Customize the look, preserve the light

Available in modern and pagoda styles, these optional shades give the client more options to tailor the fixture’s look without affecting  performance.

Accessories

Flexible mounting.
Stable installation.

Durable, corrosion-resistant construction is paired with mounting options for hardscape and softscape applications. Once installed, re-aiming and adjustment are unnecessary.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AMH02-12-RA

GROUND MOUNT

12″ Spike Ground Mount, Theft Resistant

AJB-1

GROUND MOUNT

Brass Junction Box

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

Specifications

Radius Solar Specs

BUILD

Materials

LIGHT MOUNT: Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel.



LIGHT HEAD: Die Cast A360 corrosion resistant aluminum with 316 stainless steel hardware.



SHADE: Die Cast A360 corrosion resistant aluminum.



BATTERY: Lithium Iron Phosphate (LiFePO₄ / LFP) rechargeable battery with high safety and long service life.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish.

Shades

Optional Modern or Pagoda architectural shade accessories.

LIGHT OUTPUT

Optics

Precision engineered polycarbonate optical lens with batwing distribution for smooth, even illumination.

Light Engine

HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K, 3000K.

BATTERY / POWER

Battery

Integrated photovoltaic charging system with onboard battery management and user-replaceable Lithium Iron Phosphate (LiFePO₄) battery for autonomous dusk-to-dawn operation. Runtime varies based on geographic location, seasonal daylight availability, and solar exposure conditions.

Wattage

1W delivers 100 lumens.

Solar Collector

Photovoltaic charging surface utilizes a custom tempered glass engineered to maintain solar charging performance over time. It resists hazing, discoloration, scratching, and unwanted daytime reflections.

MOUNTING

Mounts using 1/2″-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheets for details)

LISTINGS

CSA Listed for Wet Location, IP67 Standard. RoHS Compliant. Meets Dark Sky requirements.

Radius Solar Dimensions

Radius Solar provides architectural-grade path lighting in locations where wiring is impractical or unavailable. It maintains the same refined form and controlled optical performance as the wired Radius while operating independently from site power.

RADIUS SERIES BROCHURE
WHERE TO BUY
