ARTOFL08
FLOOD | 1.13″
3W (100lm) | 12V | HK LED
Our smallest Flood Light for signage, low plantings, and soft architectural accents.
FEATURES
- Our smallest and discrete 12V LED flood light for residential landscape environments. Most appropriate for the soft illumination of low plantings, signage, and architectural accents.
- 3W integrated HK LED delivering 100 lumens of soft, pleasing light. 2700K, 3000K CCT.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- 360º vertical and 360º horizontal adjustment via unique swivel stem design.
- Integrated, innovative Glare Shield and Solite Lens minimizes glare and ensures soft, even distribution of light.
- Every fixture tested end of line for water tightness and light quality.
ARTOFL08
Our smallest Flood Light delivers up to 100 lumens from a compact 1.25” fixture. The integrated HK LED and soft, wide beam is perfect for the soft illumination of low plantings, signage, and architectural accents. The discreet profile and integrated glare shield help reduce source visibility day and night.

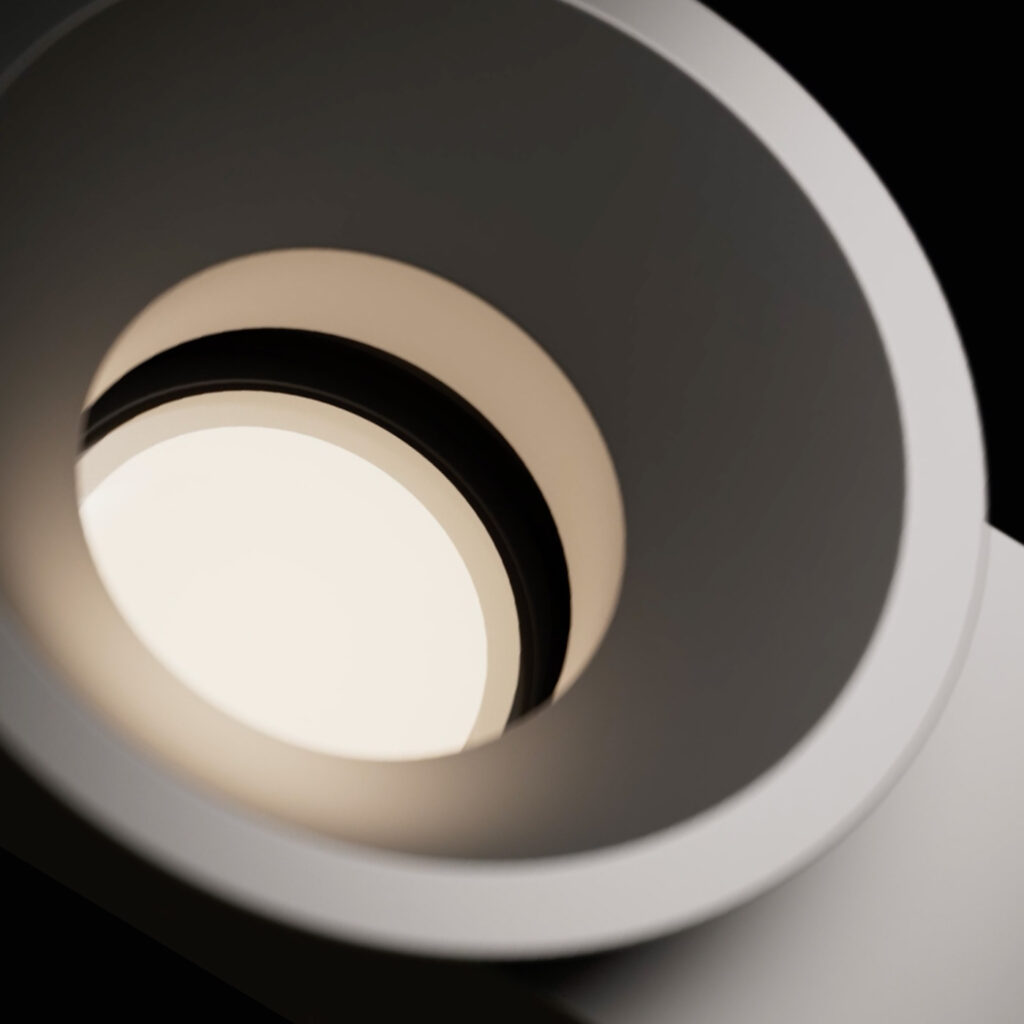

Integrated Glare Shield and Solite Lens minimize glare to deliver soft, even light distribution.
Accessories
Single or three-prong in-ground stakes and color-matched architectural mounts expand ARTOFL08 performance and installation versatility.
COMPATIBLE ACCESSORIES
AMH02-06
GROUND MOUNT
6″ Spike Ground Mount
AMH02-12
GROUND MOUNT
12″ Spike Ground Mount
ACM3
CANOPY MOUNT
4.75″ Square Canopy Mounting Plate
ACM5
CANOPY MOUNT
5″ Round Canopy Mounting Plate
AMHCS-12
GROUND MOUNT
12″ PVC Stake Ground Mount
AMHCS-06
GROUND MOUNT
6″ PVC Stake Ground Mount
AJB-1
GROUND MOUNT
Brass Junction Box
ACMLJ
SURFACE MOUNT
Compact Round Surface Mount Box
ACB4.0
SURFACE MOUNT
4″ Weatherproof Round Surface Mount Box
ACB5.5
SURFACE MOUNT
5″ Weatherproof Round Surface Mount Box

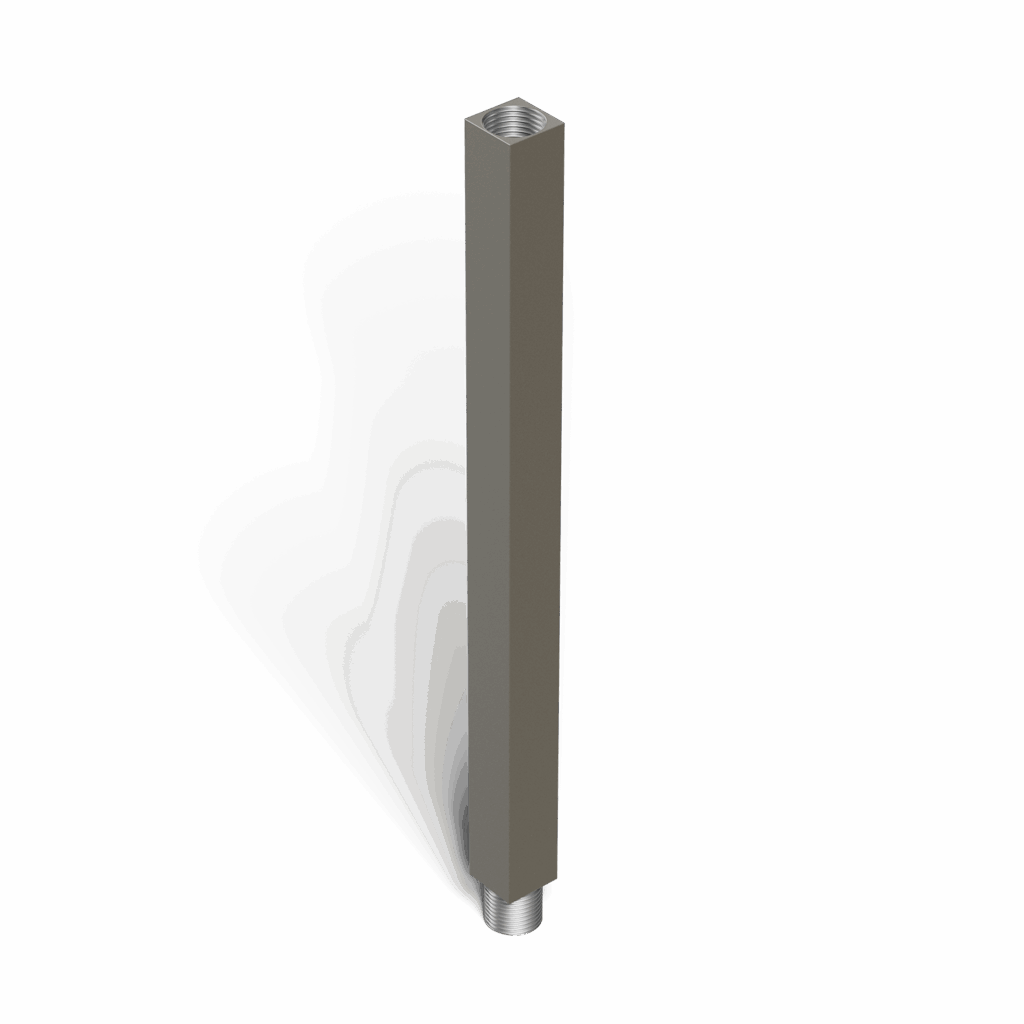

AEXS-11-12
MOUNTING / EXTENSION
12″ Square Extension Stem
ATXM
TRANSFORMER
Outdoor Magnetic Transformer
Specifications
ARTOFL08 Specs
BUILD
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.
Glare Shield
Integrated Glare Shield included.
LIGHT OUTPUT
Optics
Wide Flood Optic included with installed Solite Lens to deliver soft light and minimize glare.
Light Engine
Innovative HK LED light engine. CRI 90 Standard. 2700K, 3000K CCT.
POWER & CONTROLS
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage
3W HK LED, delivers 100 lumens.
Dimming
MLV or ELV Phase Control dimming.
MOUNTING
Mounts using 1/2″-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details).
LISTINGS
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

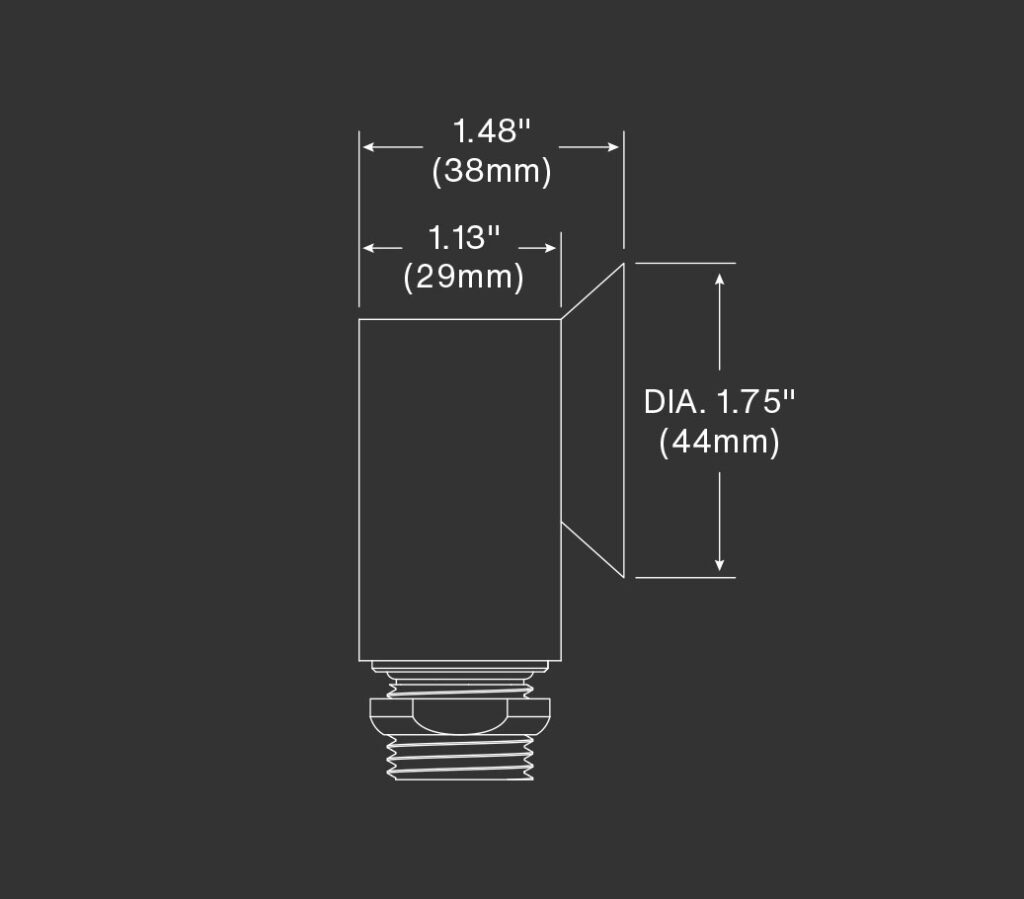

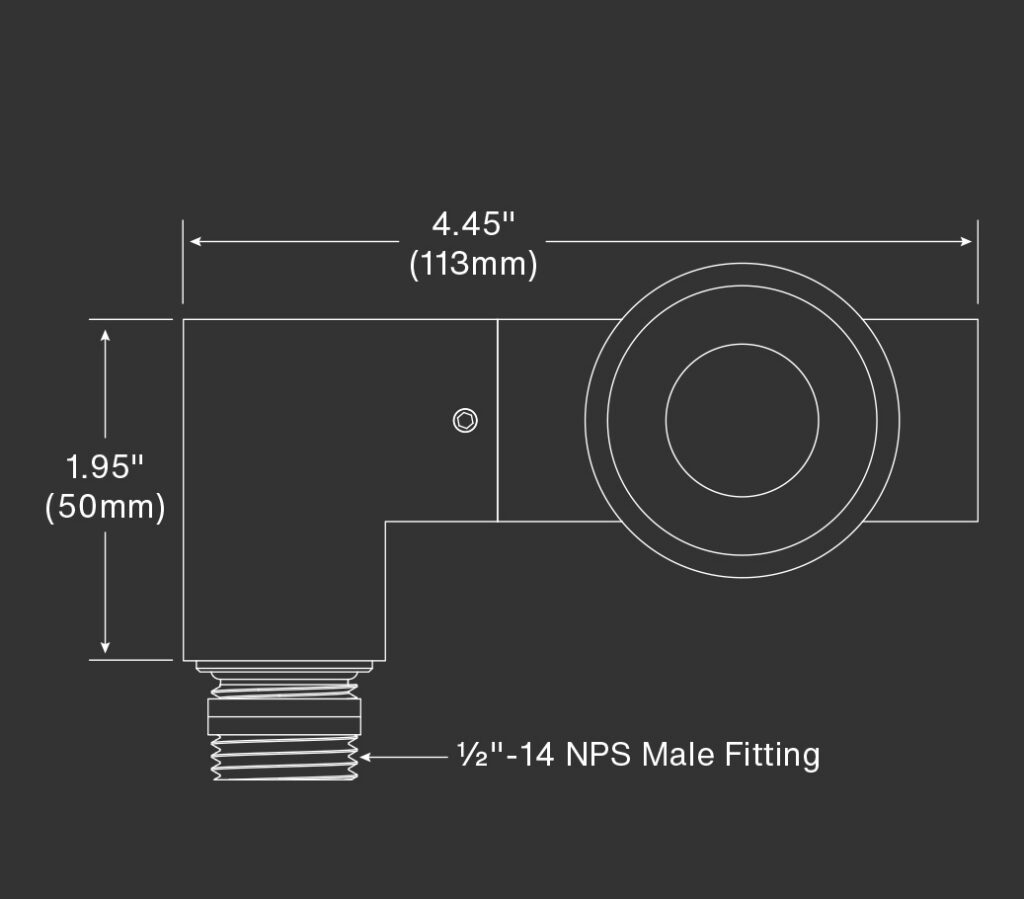

ARTOFL08 Dimensions
The ARTOFL08 Flood Light is built to your specifications. Configure light color, finish and select from available mounting options. Ships in 2 to 4 weeks.
