Sentinel ARTOS16 CP
SECURITY | 2.25″ dia.
7.5W (640lm) | 12V | SORAA, LED Lamp, Halogen

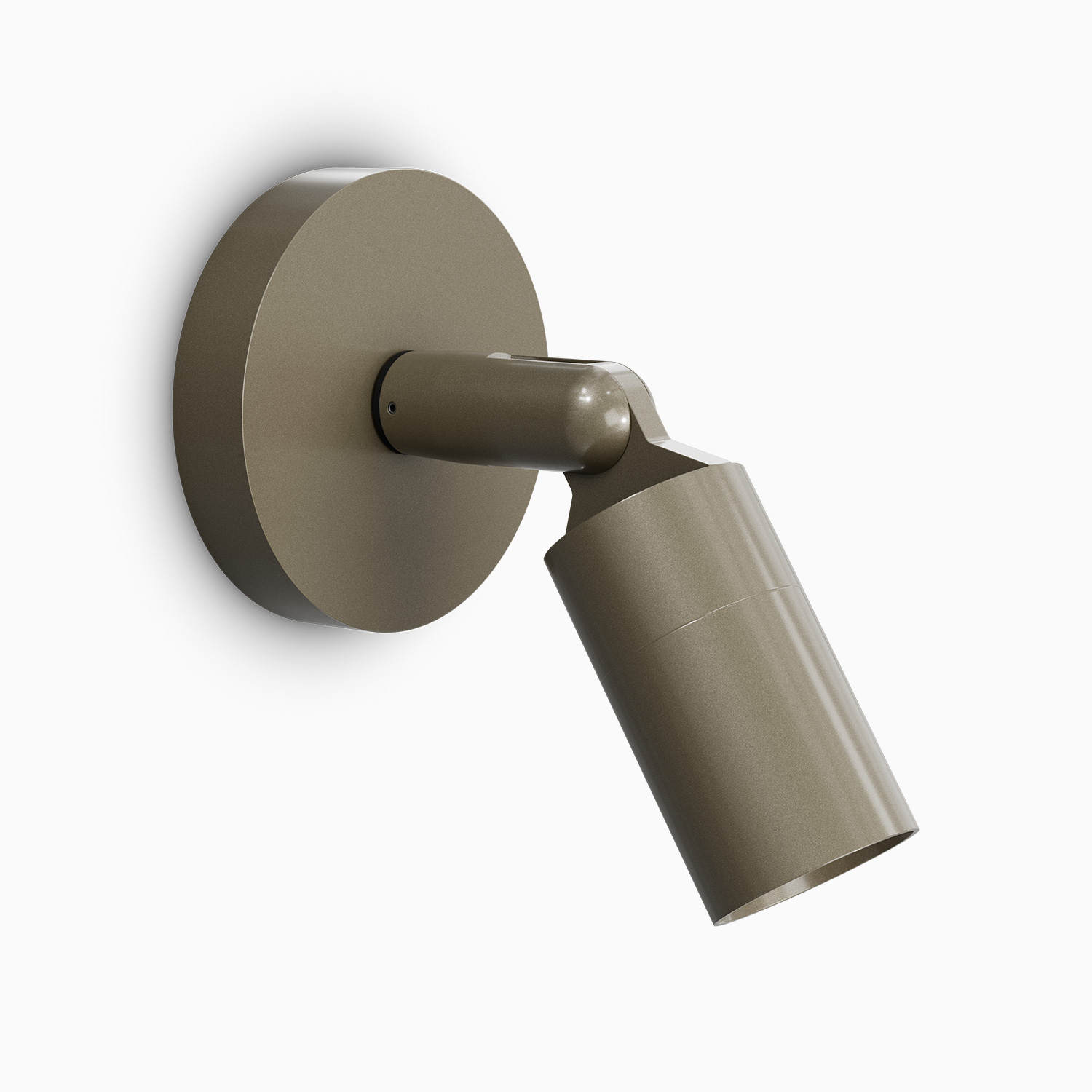

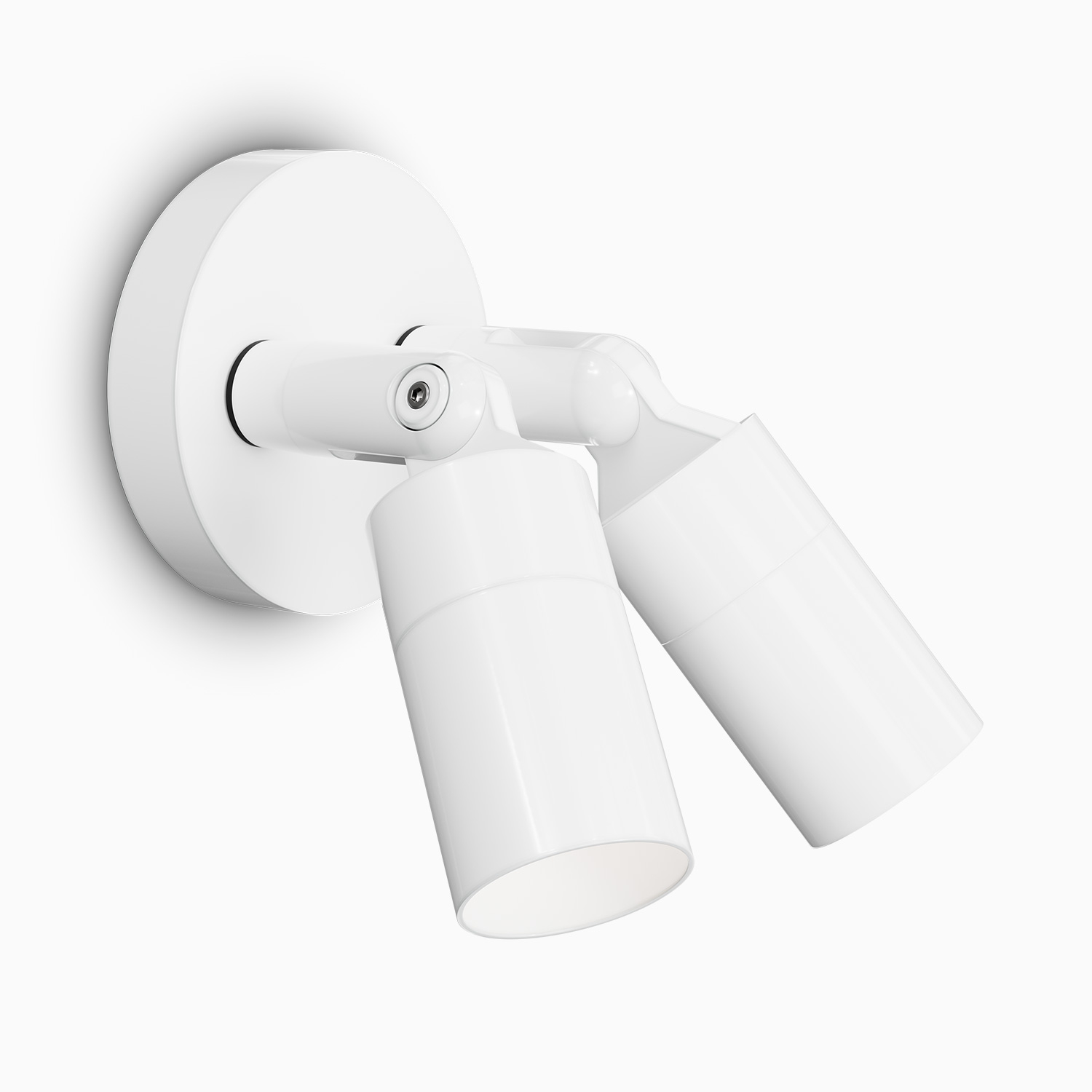

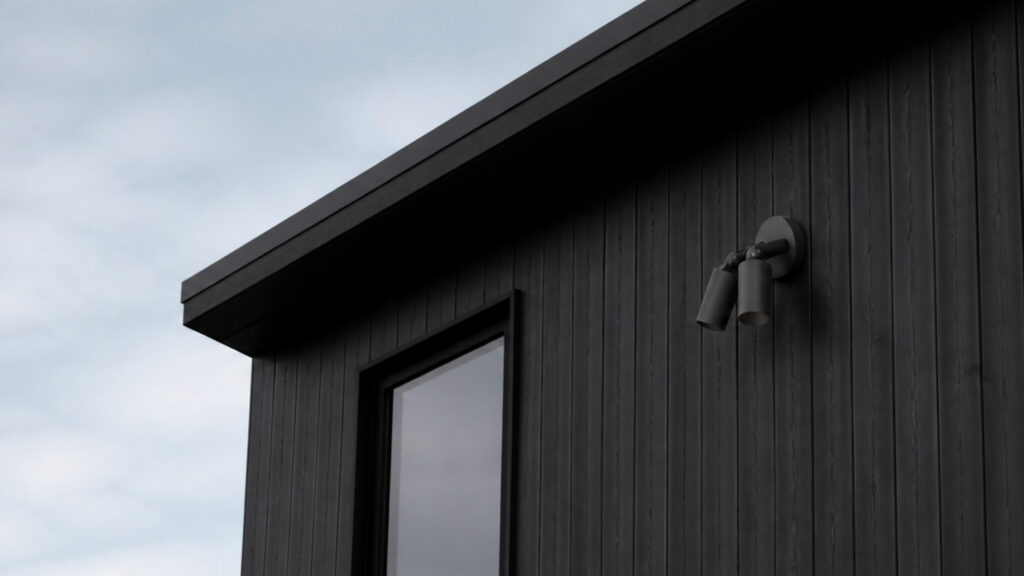

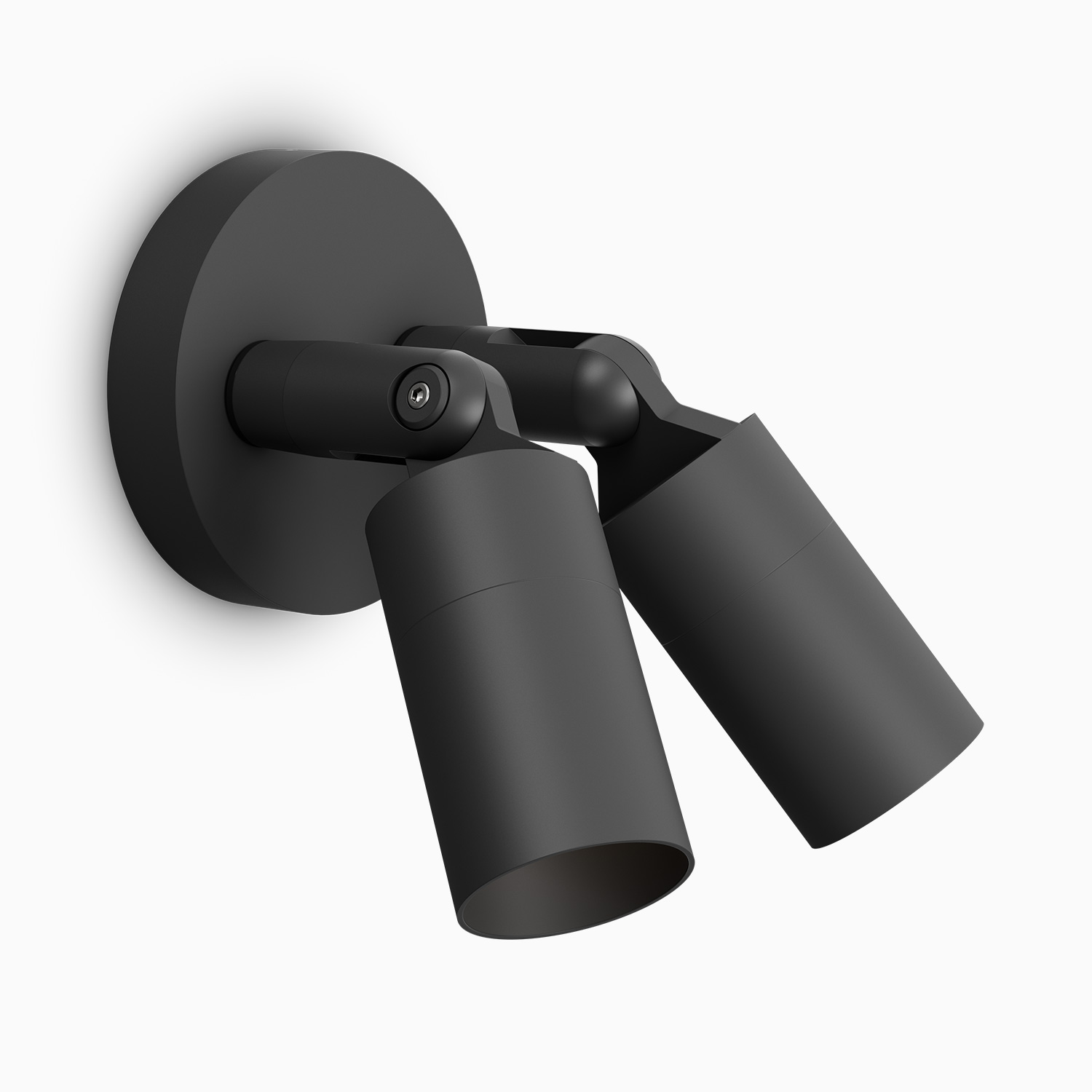

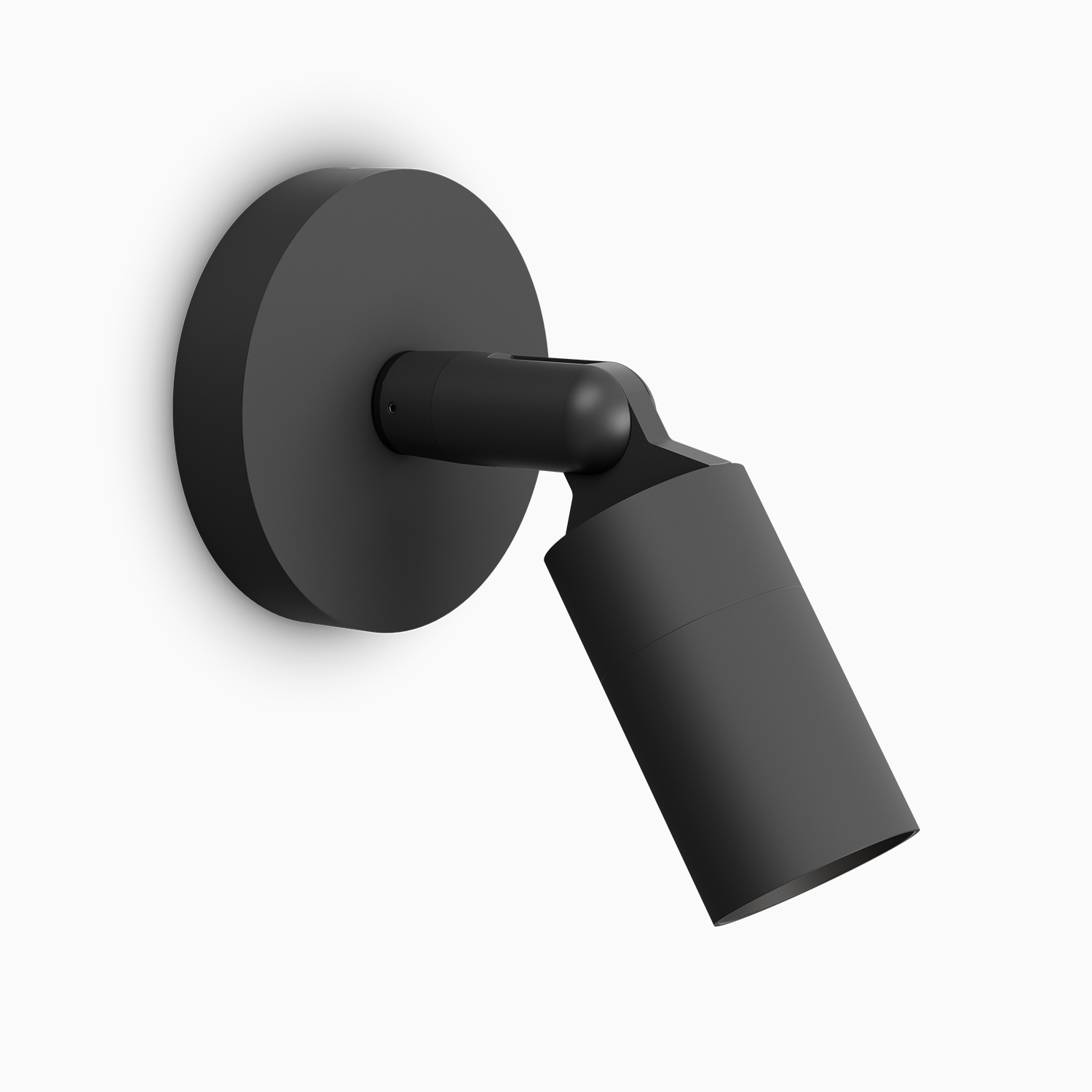

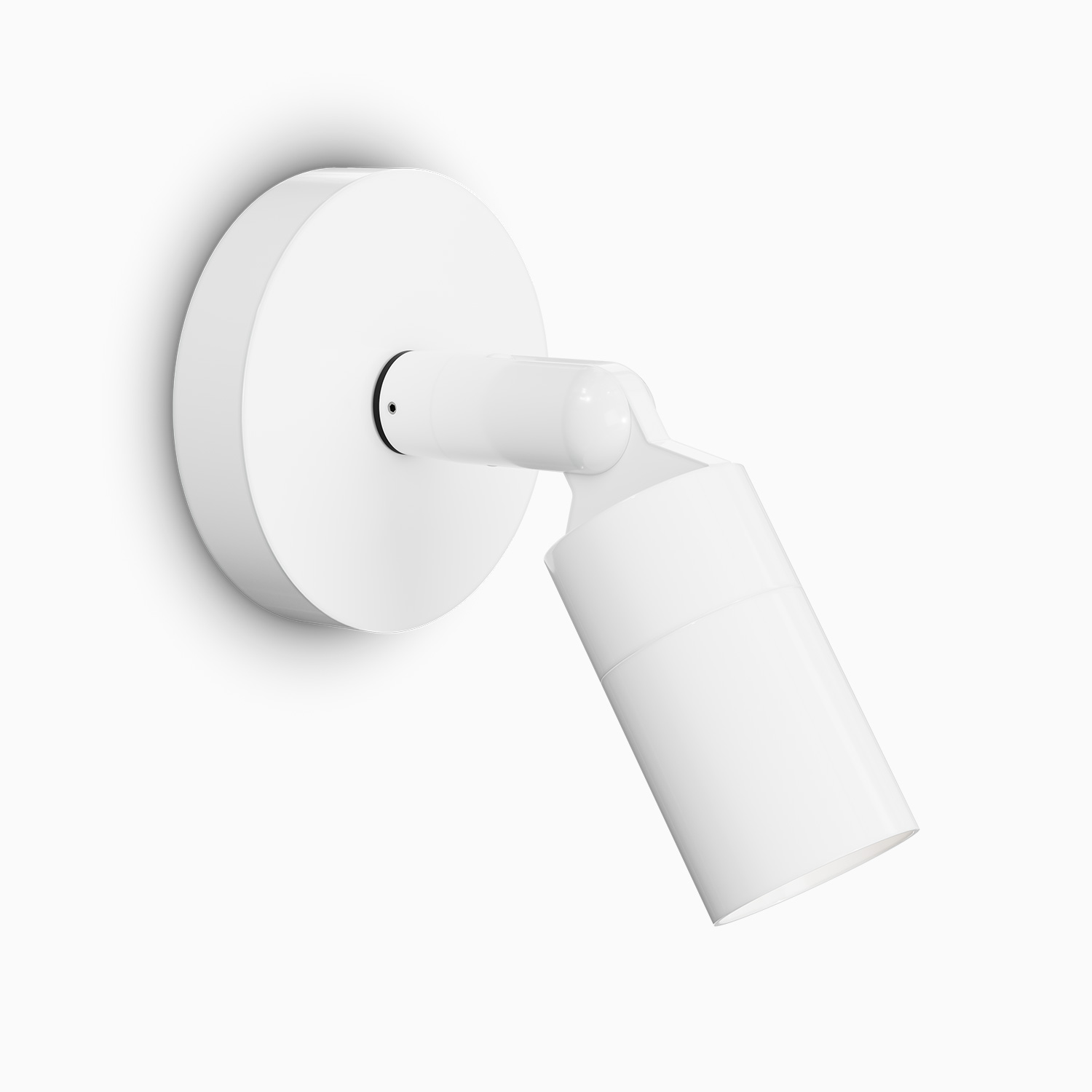

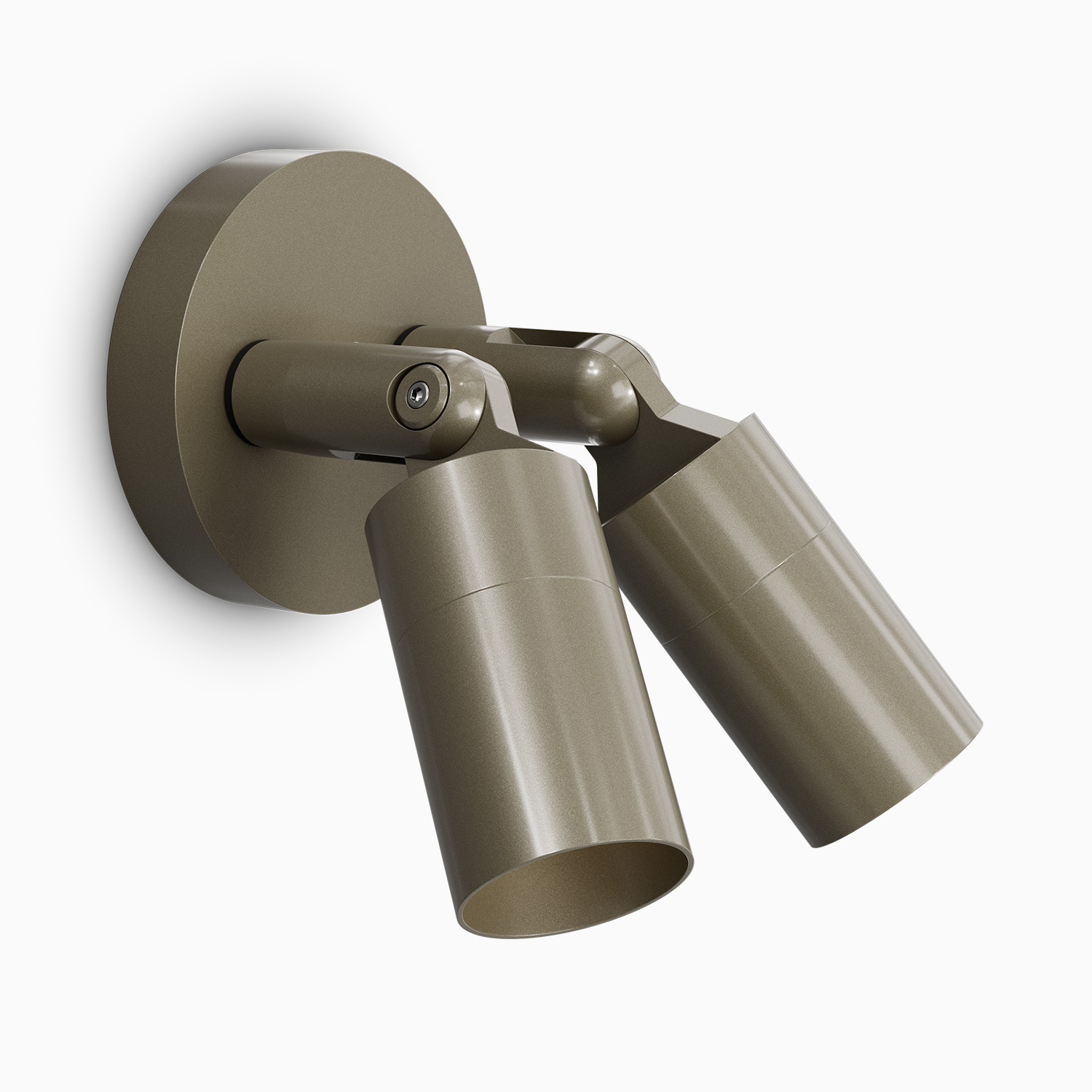

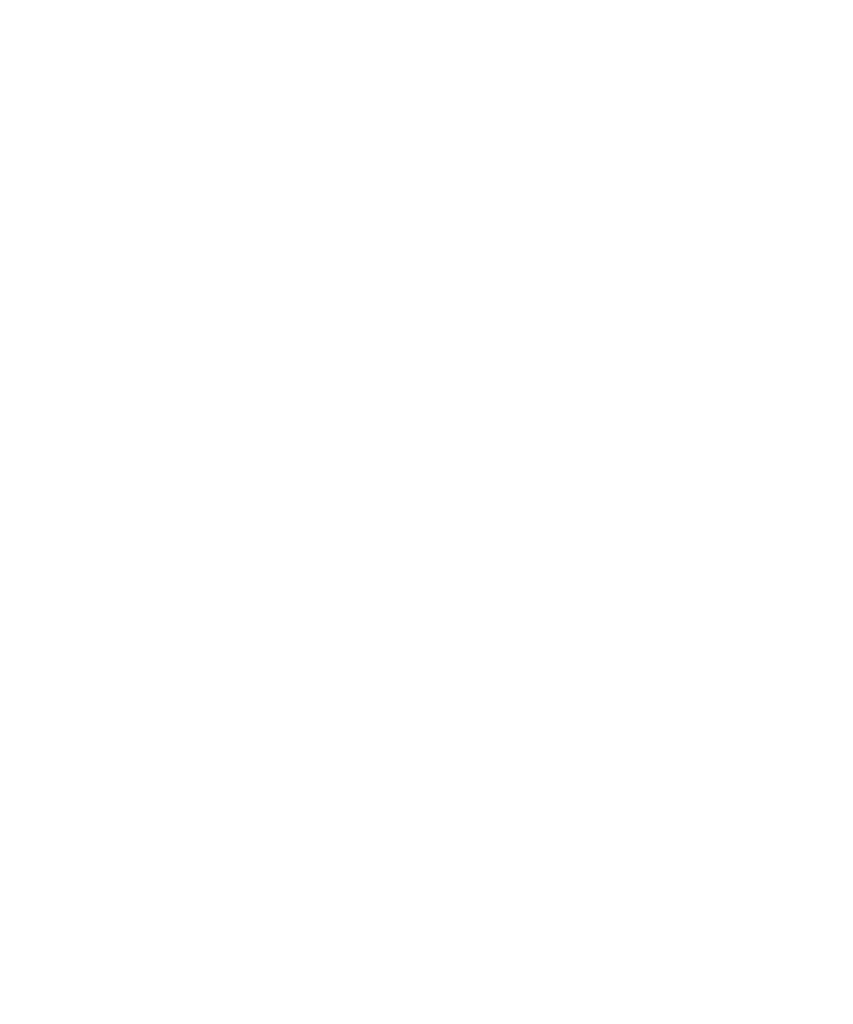

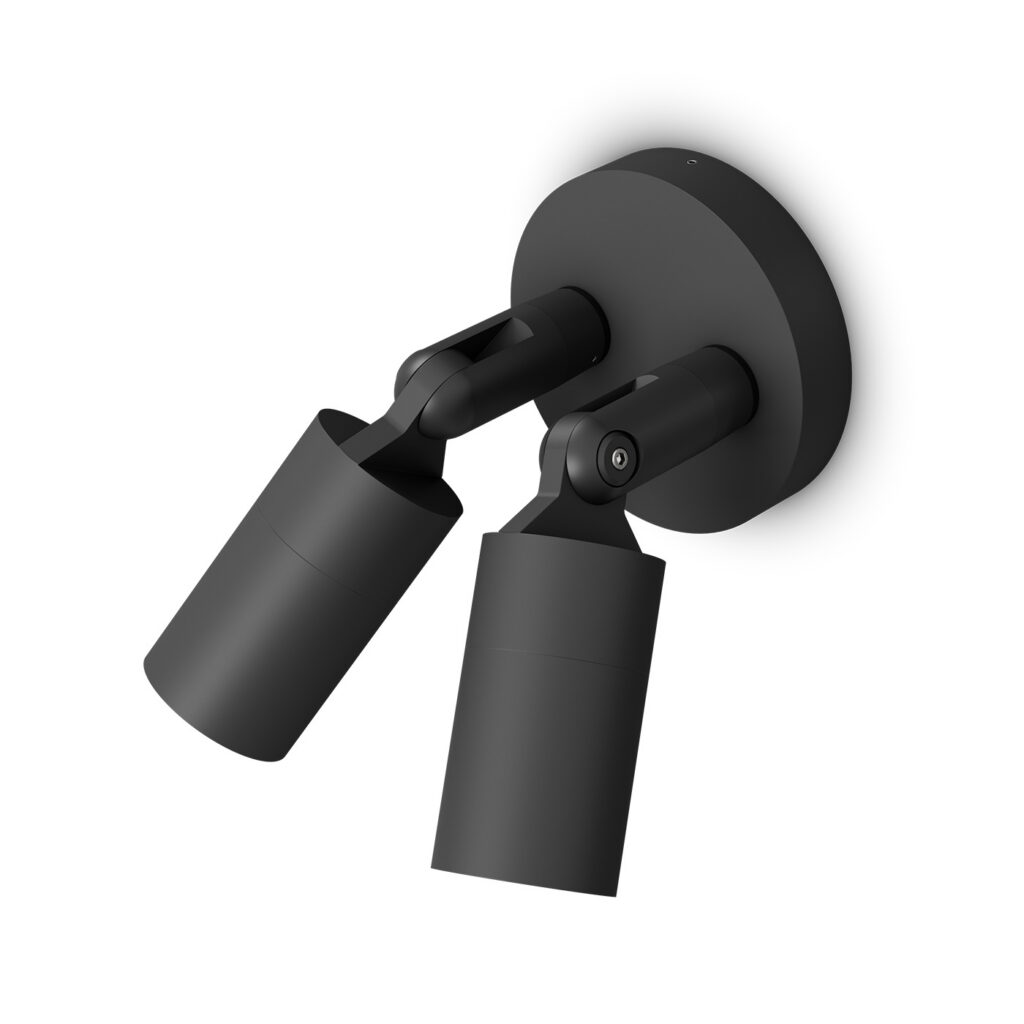

Single or double-head modern Center Pivot style low-voltage, MR16 (GU5.3) fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting.
FEATURES
Built on the ARTOA16 lamp-based Center Pivot Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the ACBA1 or ACBA2 4.75″ Surface Mount Box.
Flexible lamp configurations include the SORAA. Brilliant™ HL LED installed in our patented Thermobuster™ heat sink or your preferred MR16 (GU5.3) LED or halogen lamp.
Wet Location Listed, IP67 Standard.
Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, and white to create a highly durable, marine-grade finish.

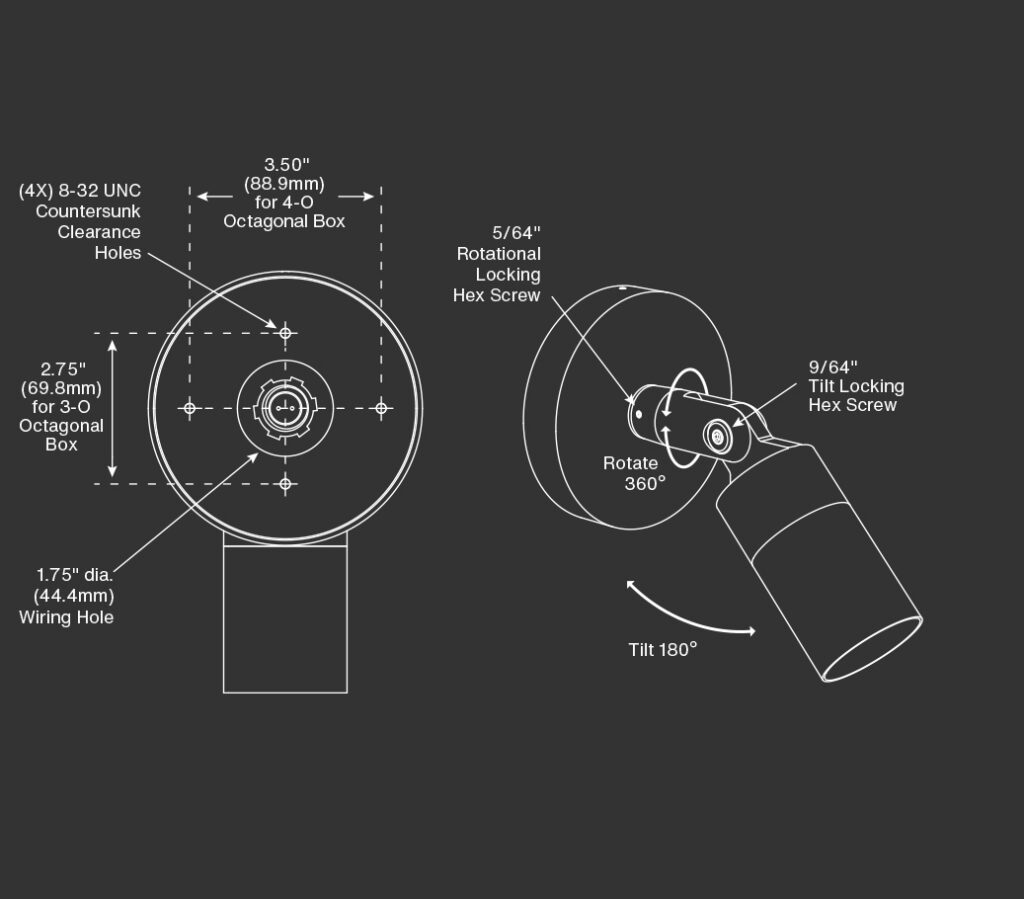

180º vertical and 360º horizontal adjustment via locking swivel stem design.
Field-changeable optical accessories available.
Adjustable Angled Shield available.
Every fixture tested end of line for water tightness and light quality.
Sentinel ARTOS16 CP
The Center Pivot edition brings a refined visual expression to the versatile 12V, lamp-based ARTOS16 platform. Interchangeable lamp options, SORAA optics spanning 10° to 60°, fully aimable heads, discreet glare control, and marine-grade construction deliver precise security coverage without harsh, blanket brightness.
Marine-Grade Construction. Proven Performance.
Built on HK’s proven Accent Light platforms, corrosion-resistant finishes and architectural-grade construction deliver long-term performance in demanding outdoor environments.

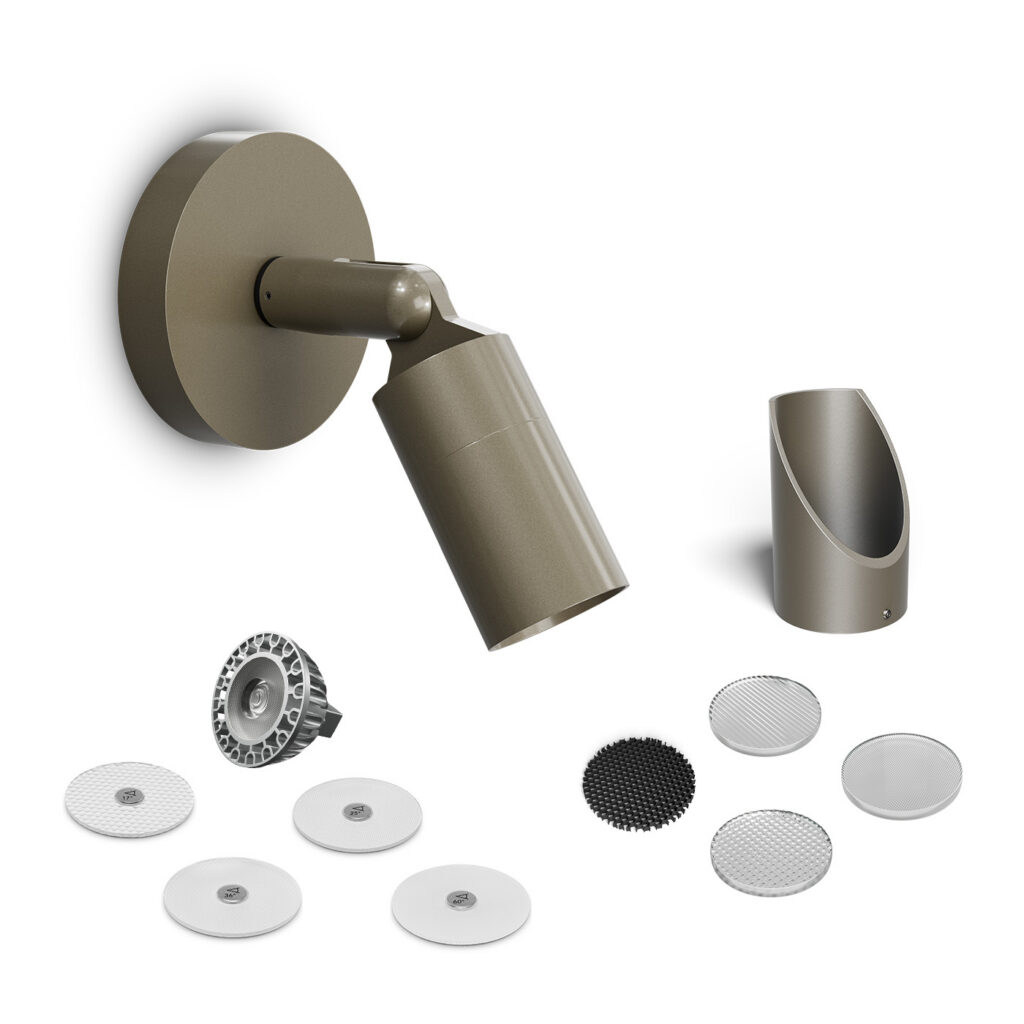

Accessories
Visibility by design, never by excess.
Fully aimable fixture heads, multiple optical distributions, and field-changeable accessories provide precise control over coverage and light placement.
COMPATIBLE ACCESSORIES
Specifications
ARTOS16 CP Specs
BUILD
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Finish
Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish.
Hood and Glare Shield
Clean aesthetic, non-weeping Hood Style. Set screw Angled Glare Shield. (See page 5 of Spec Sheet for details)
LIGHT OUTPUT
Optics
Provided SORAA Lamp delivers a 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 optical accessories secured in place with metal snap ring.
Light Engine
MR16 Halogen or MR16 SORAA LED lamp. Compatible with SORAA Brilliant HL and other 12V MR16 GU5.3 lamp selections.
POWER & CONTROLS
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage
Max 9W per light head for SORAA MR16 lamp with Thermobuster. Max 50W per light head for halogen lamp.
Dimming
MLV, ELV Phase Control Dimming at 12V. Please refer to website for SORAA MR16 dimmer compatibility.
MOUNTING

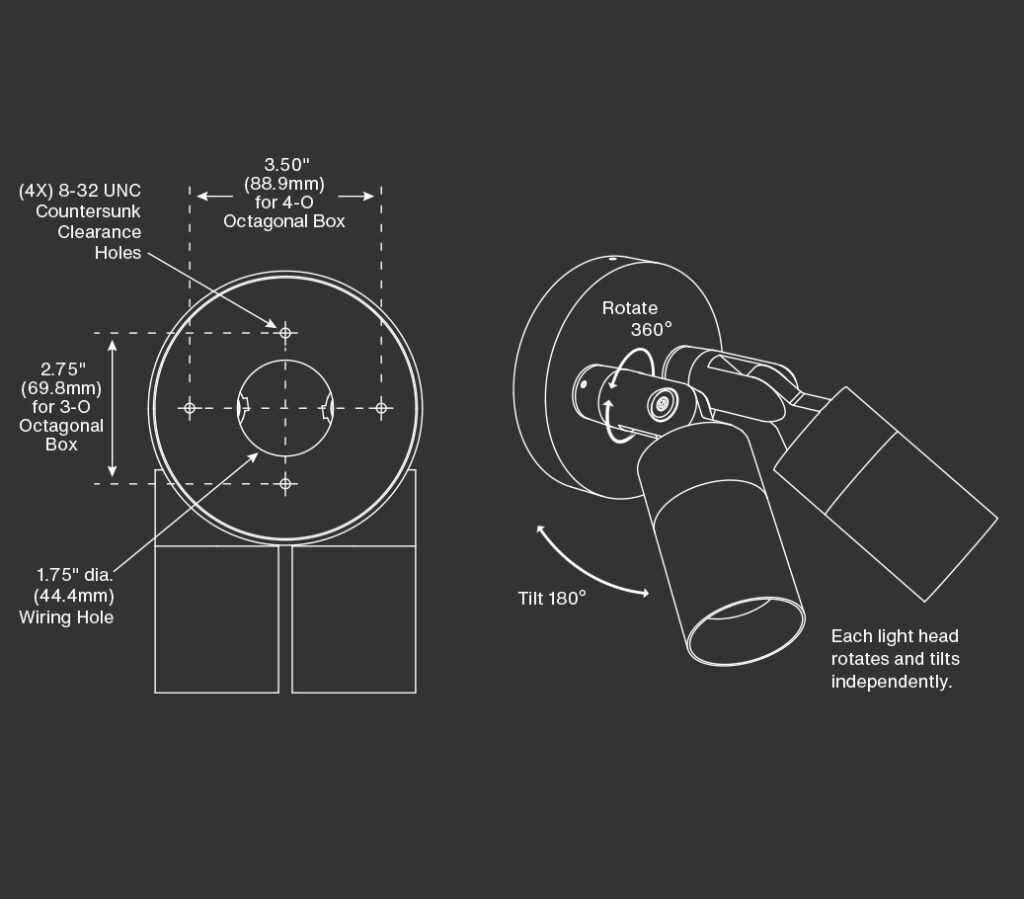

Single Area Light (Type-C1) ships mounted to a ACBA1 Surface Mount Box. Double Area Light (Type-C2) ships pre-mounted to a ACBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½”-14 NPS male fitting that is compatible with the included Surface Mount Box or is compatible with a wide range of HK Lighting mounting accessories.
LISTINGS
CSA Listed for Wet Location (UL1838), IP67 Standard RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.

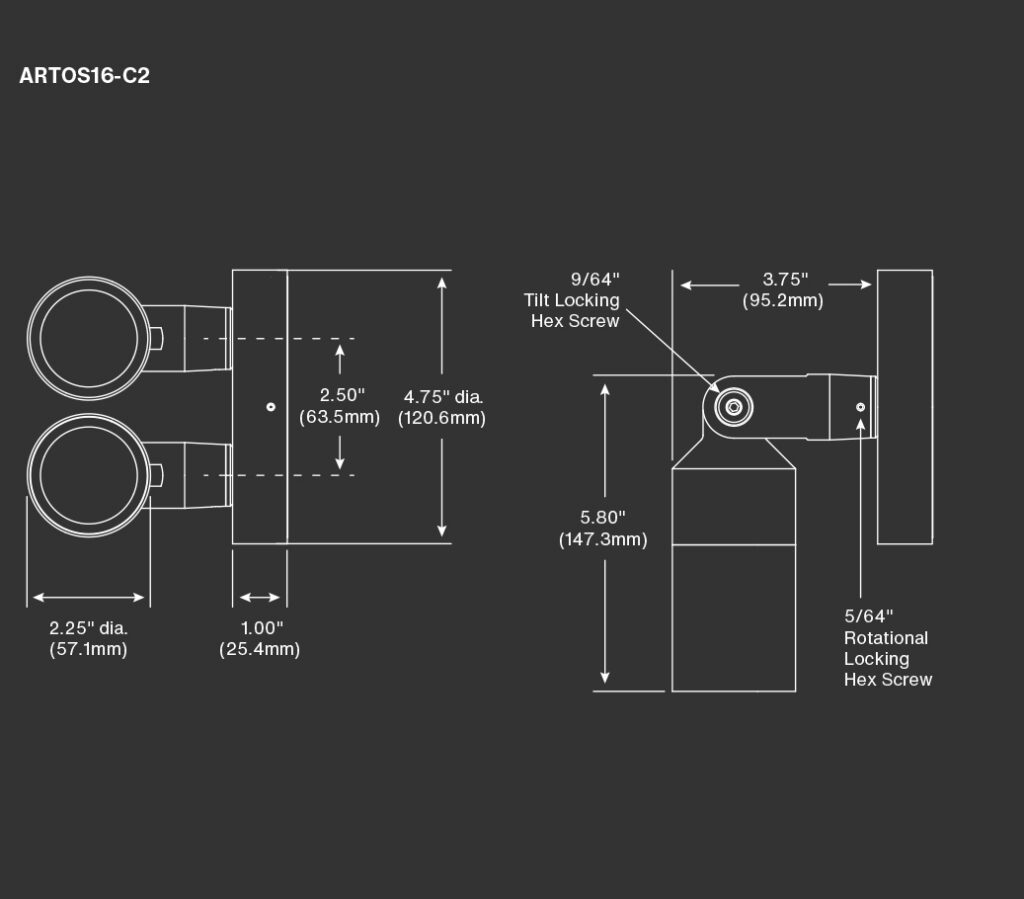

ARTOS16 CP Dimensions
ARTOS16 Center Pivot unites distinctive architectural styling with low-voltage lamp flexibility and lasting outdoor performance—placing light exactly where it’s needed, without excess.
