SORAA® 08728

ACCESSORIES  |  SORAA

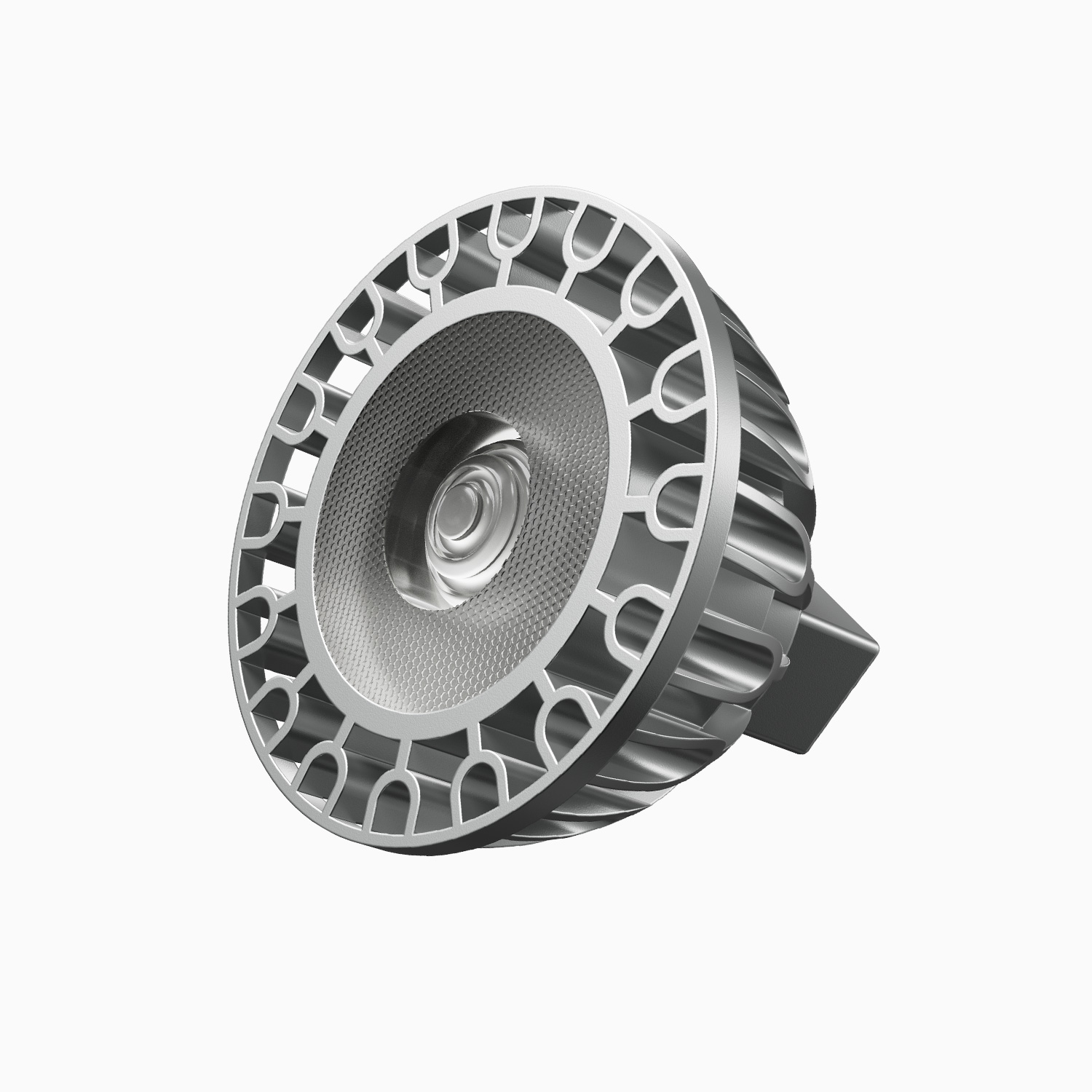

7.5W (640lm, 10°) | 12V | MR16 (GU5.3) LED Lamp

FEATURES



  • SORRA Brilliant(TM) HL 08728, MR16 (GU5.3) Compatible

  • 7.5W LED Lamp delivers 640 lumens, 3000K CCT, 90CRI

  • 10° Beam with precisely controlled distributions and perfect uniformity

  • SORAA SNAP System™ compatible , providing 17°, 25°, 36°, and 60° beam options

  • Complies with Energy Star V2 and California Title 20/24 requirements. Suitable for damp locations.

WHERE TO BUY

Specifications

SORAA 08728 Specs

BUILD

Weight

47g

Accessories

Narrow spot compatible with the SORAA SNAP System™.

LIGHT OUTPUT

Light Engine

SORAA Brilliant HL LED MR16 (GU5.3) Lamp

Optics

10° Beam, compatible with SORAA SNAP SYSTEM (17°, 25°, 36°, 60°).

Color Quality

CRI 90. 3000 CCT.

APPLICATION

This lamp is suitable for use in fully enclosed fixtures, subject to the maximum heatsink temperature limits stated on the product data sheet.

POWER & CONTROLS

Voltage

12V

Wattage

7.5W delivers 640 lumens.

Dimming

MLV or ELV Phase Control dimming.

Beam Angle Range

10° , 25°, 36°, 60°

Color Metrics

CCT: 2700K, 3000K / Color Rendering / CIE Metrics: CRI 90, R9 50

LISTINGS

Title 20 compliant, UL/CUL Class 2 and non-Class 2, FCC Title 47 Part 15B, RoHS, CE

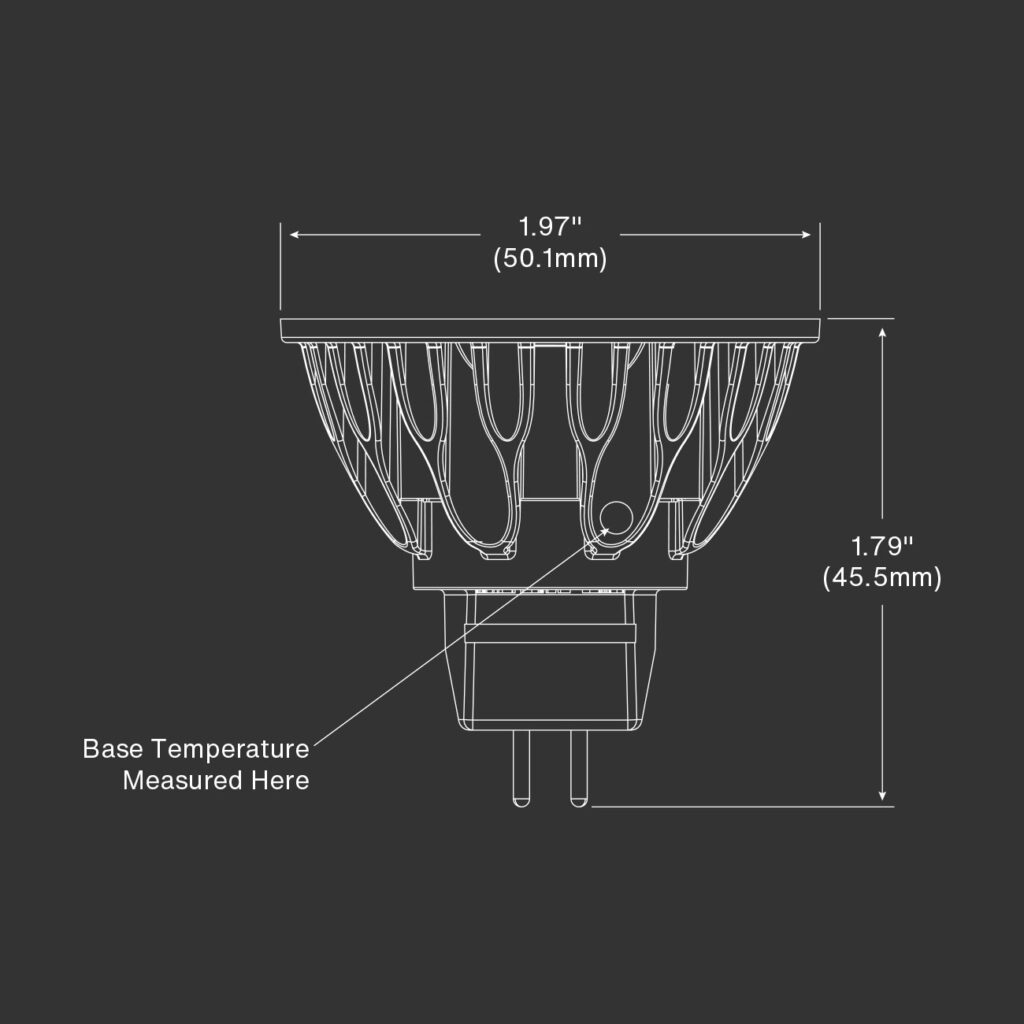

SORAA 08728 Dimensions
