In Grade
The ultra-compact 1″ Step and Marker delivers full optical precision from a one-inch in-grade form. The 1.7 watt LED fixture is machined from solid brass and provides 150 lumens with beam options of 20°, 35º, and 60°.
Compact and discreet, these fixtures install cleanly into steps, markers, and architectural elements with uniform, glare-controlled illumination and durable, marine-grade brass construction.

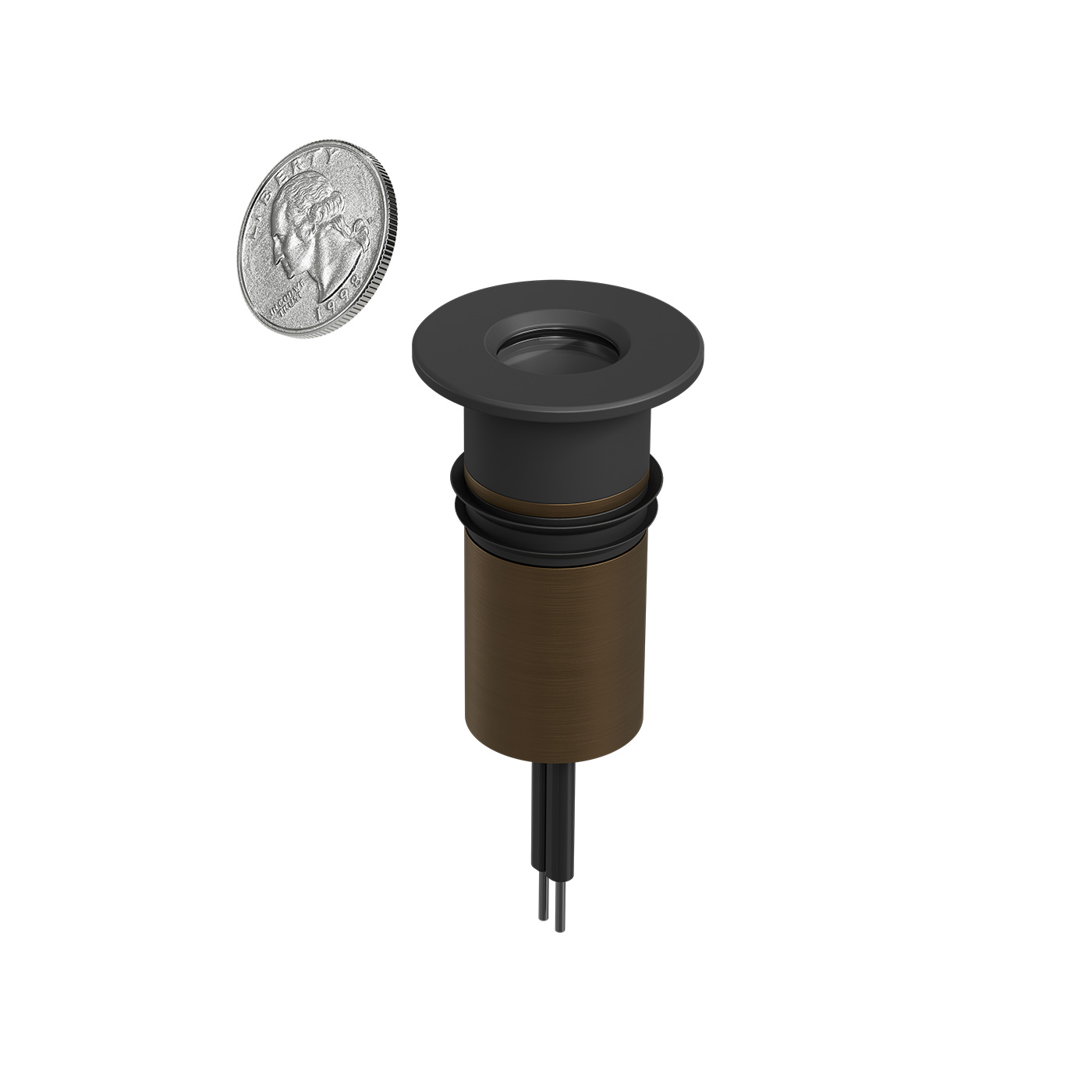

Diminutive in stature. Expansive performance.

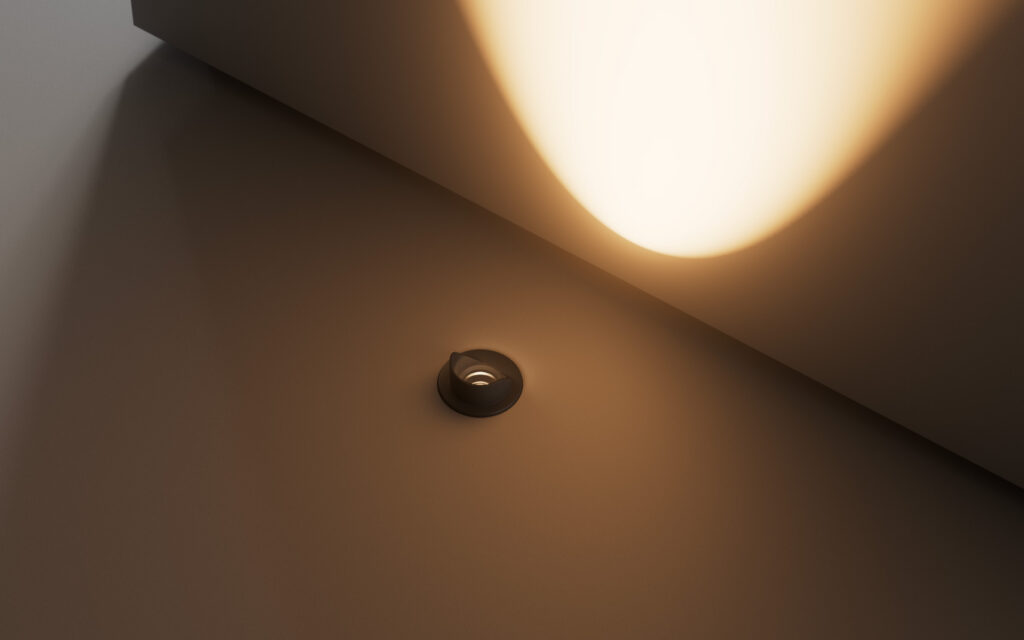

At just one inch, the low profile bezel and focused optics allow the fixture to seamlessly blend into steps, marker positions, and other architectural features for a quiet visual experience.
Designed for steps, markers, and architecture
Compact size and a screwless bezel allow discreet use in steps, markers, and architectural details. The fixture provides uniform light with controlled glare and clean integration.
ARCHITECTURAL QUALITY, SIMPLIFIED
Minimal footprint. Maximum effect.

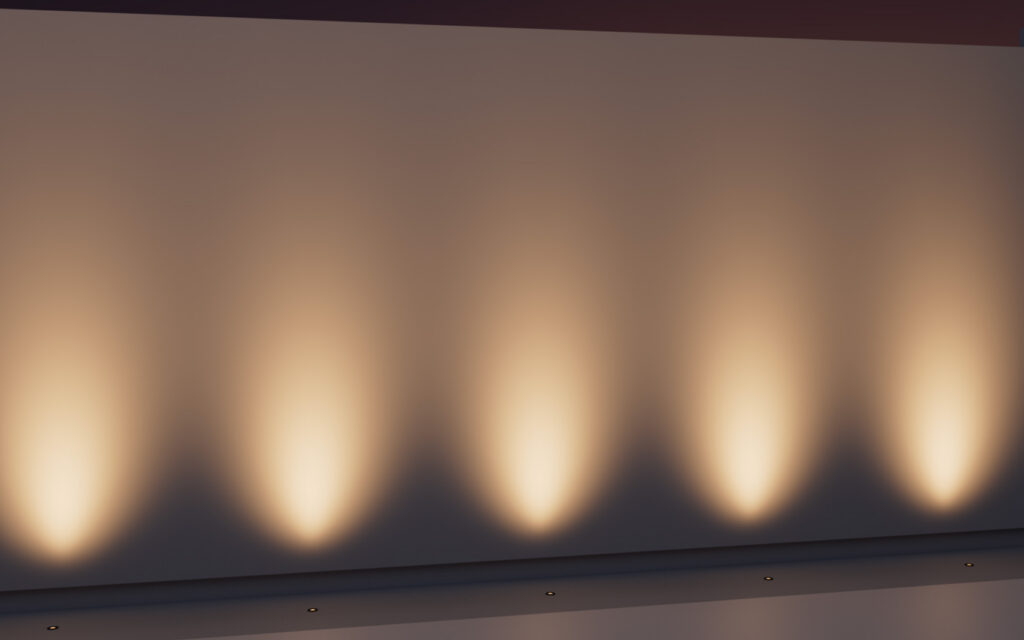

Focused illumination that shapes and defines the outdoor experience with precision and intent, delivering performance typically found in larger in-grade housings.
Easy installation for that perfect alignment
Installs in any nominal one-inch drilled hole. Placement in soil, decking, or concrete is simple, and the rotational aim system aligns the fixture cleanly without tools.

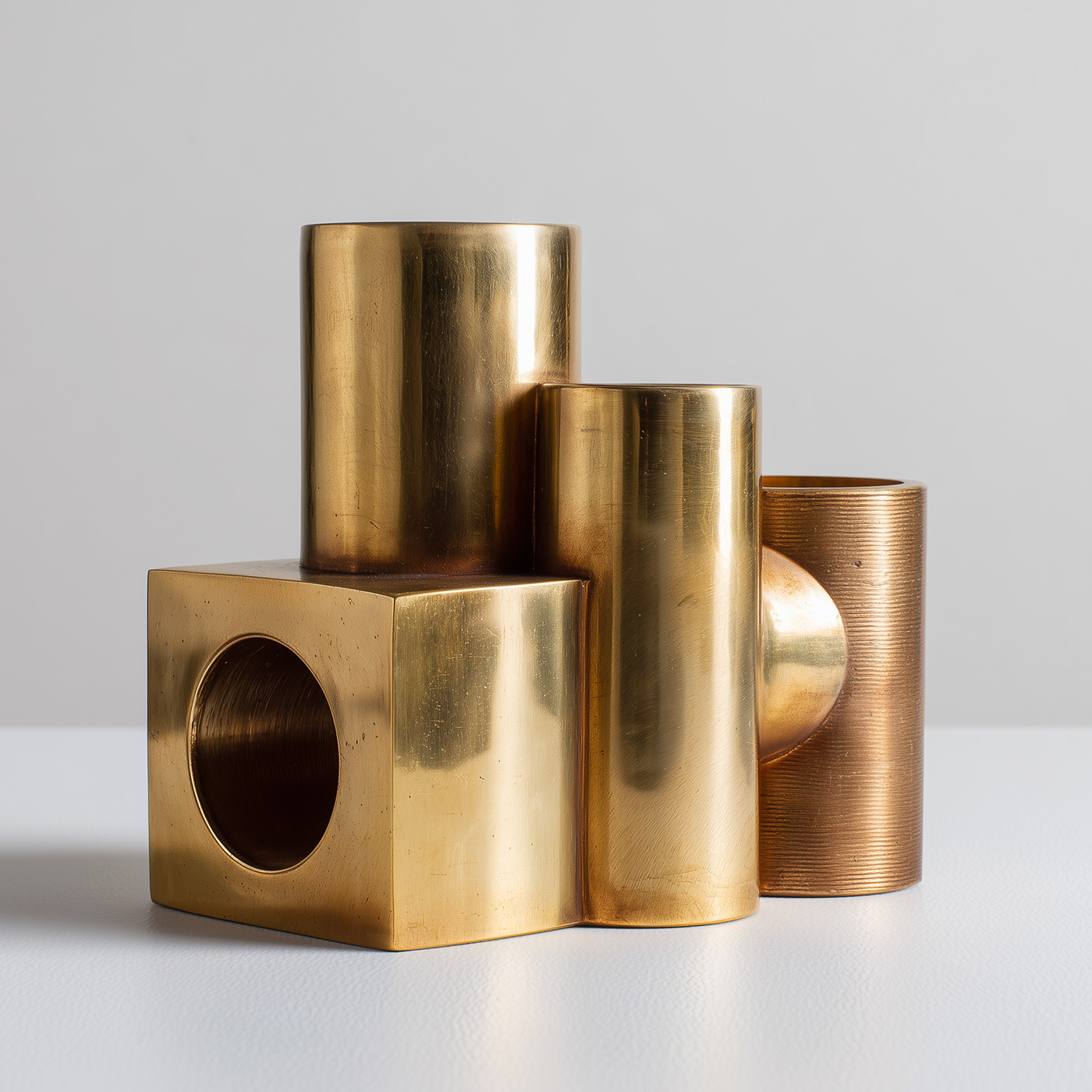

Built to last in solid brass
Machined from marine-grade brass and sealed to IP68. The 1″ Step & Marker endures harsh environments and maintains finish integrity and watertight performance.
Discreet design, bold results
The 1″ Step & Marker blends into its surroundings. Focused light and refined optics reveal architectural detail without distraction.
In-Grade Application Examples
Fire Pit Perimeter Lighting
Small in-grade LED fixtures recessed into the fire pit base provide subtle perimeter illumination, while the Top Cover 180° directs light downward to eliminate glare.

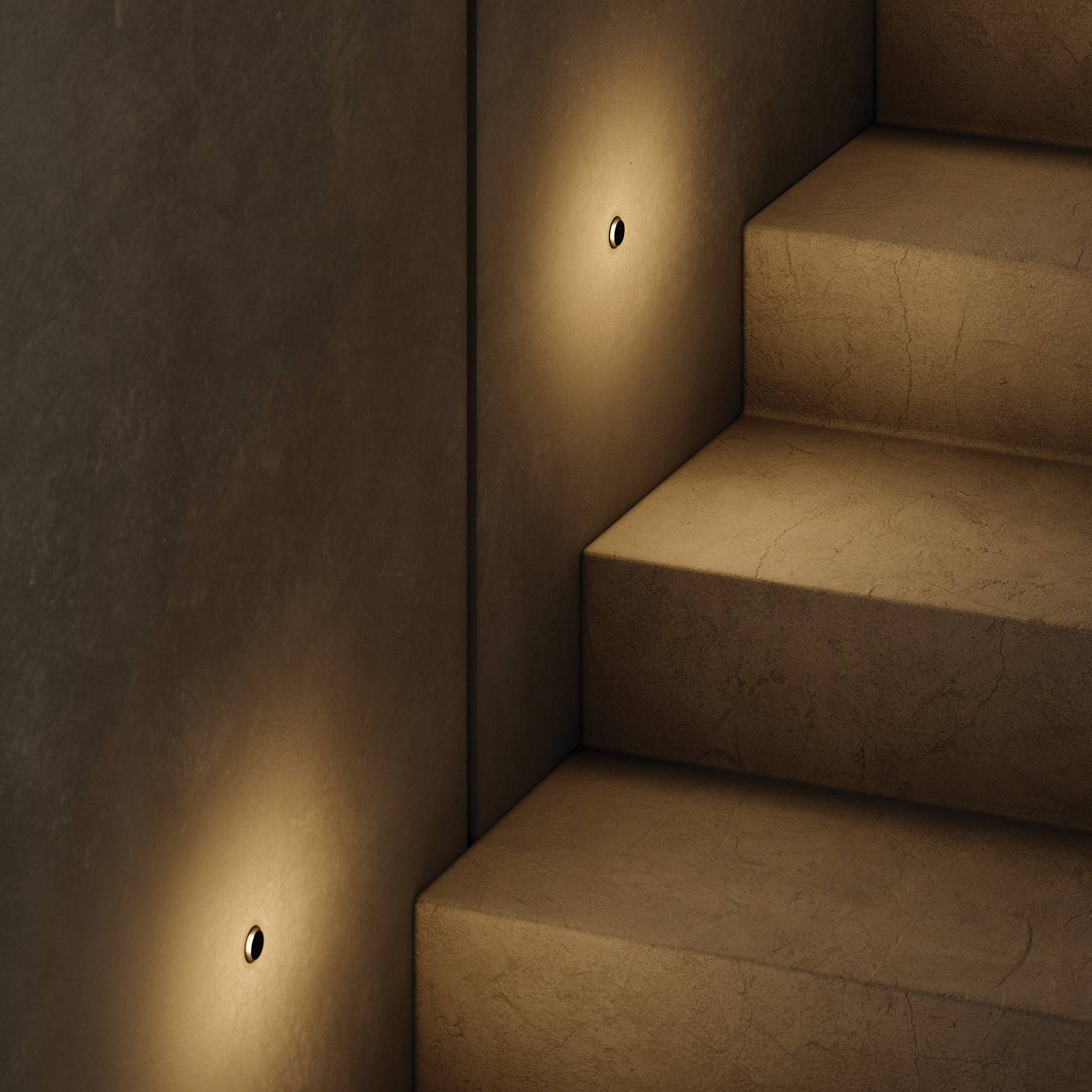

Integrated Stair Lighting
Thoughtfully placed micro in-grade lighting adds both safety and ambiance to outdoor transitions.

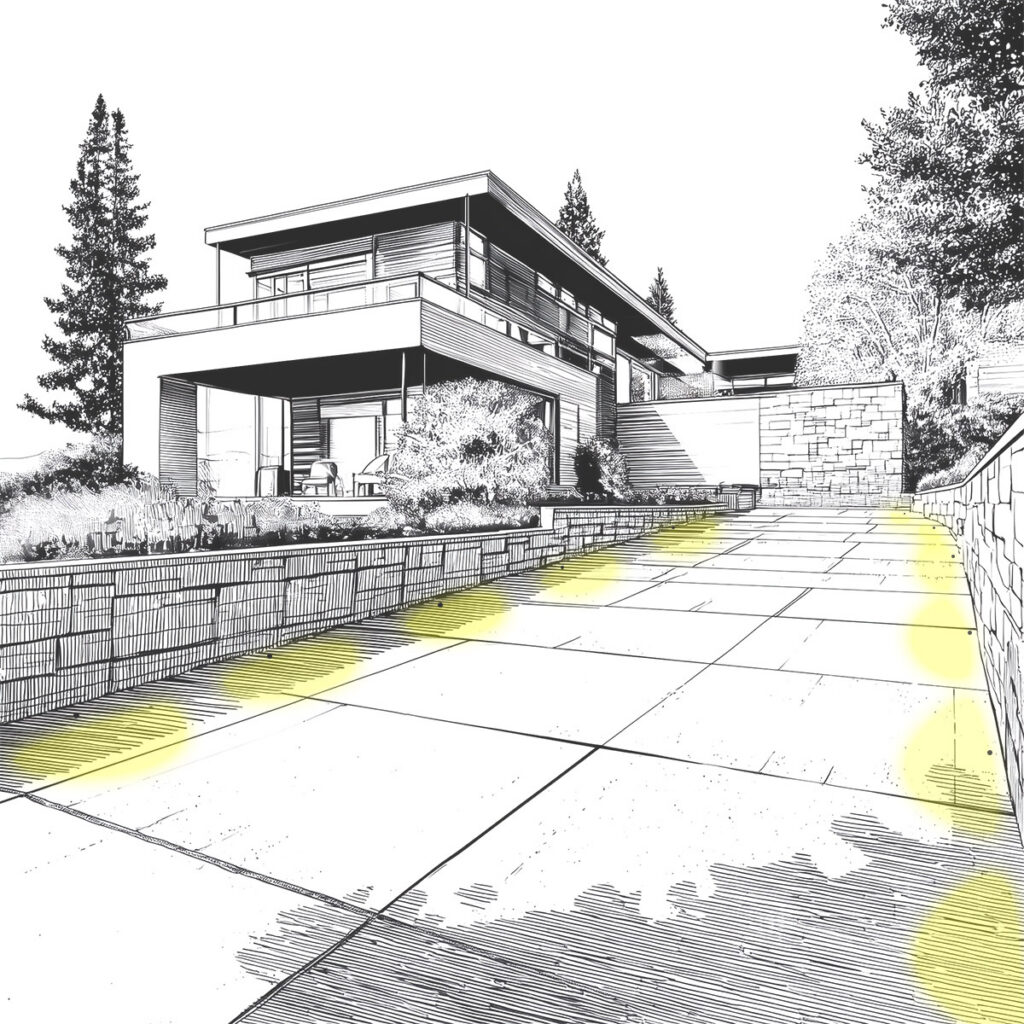

Integrated Driveway Lighting
Miniature in-grade fixtures provide subtle edge illumination, with a drive-over rated Top Cover 180° that directs light outward for dark-sky compliance.
Layered Pergola Lighting
Miniature in-grade lighting can be used to layer both uplight and downlight for balanced illumination in covered outdoor spaces.

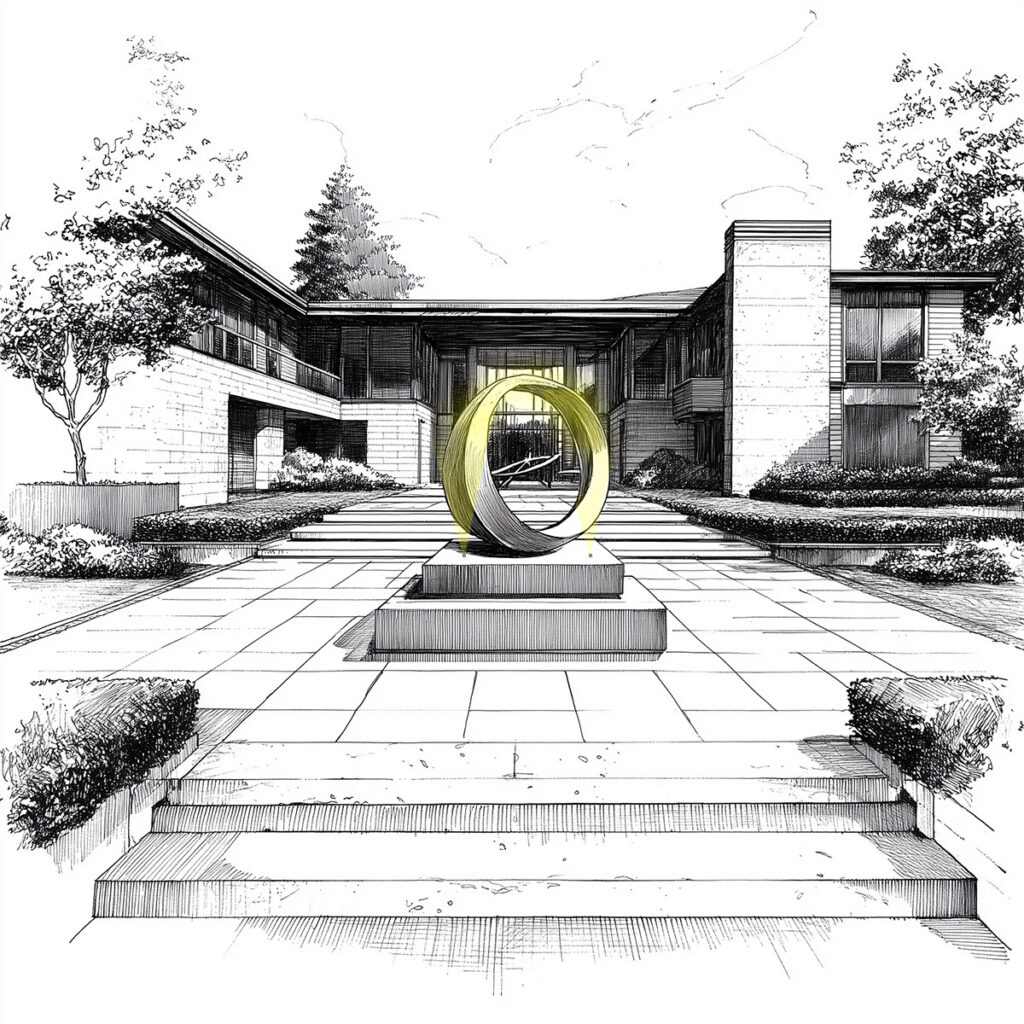

Sculpture After Dark
Compact in-grade lighting offers a clean, architectural way to highlight sculptures and landscape features.

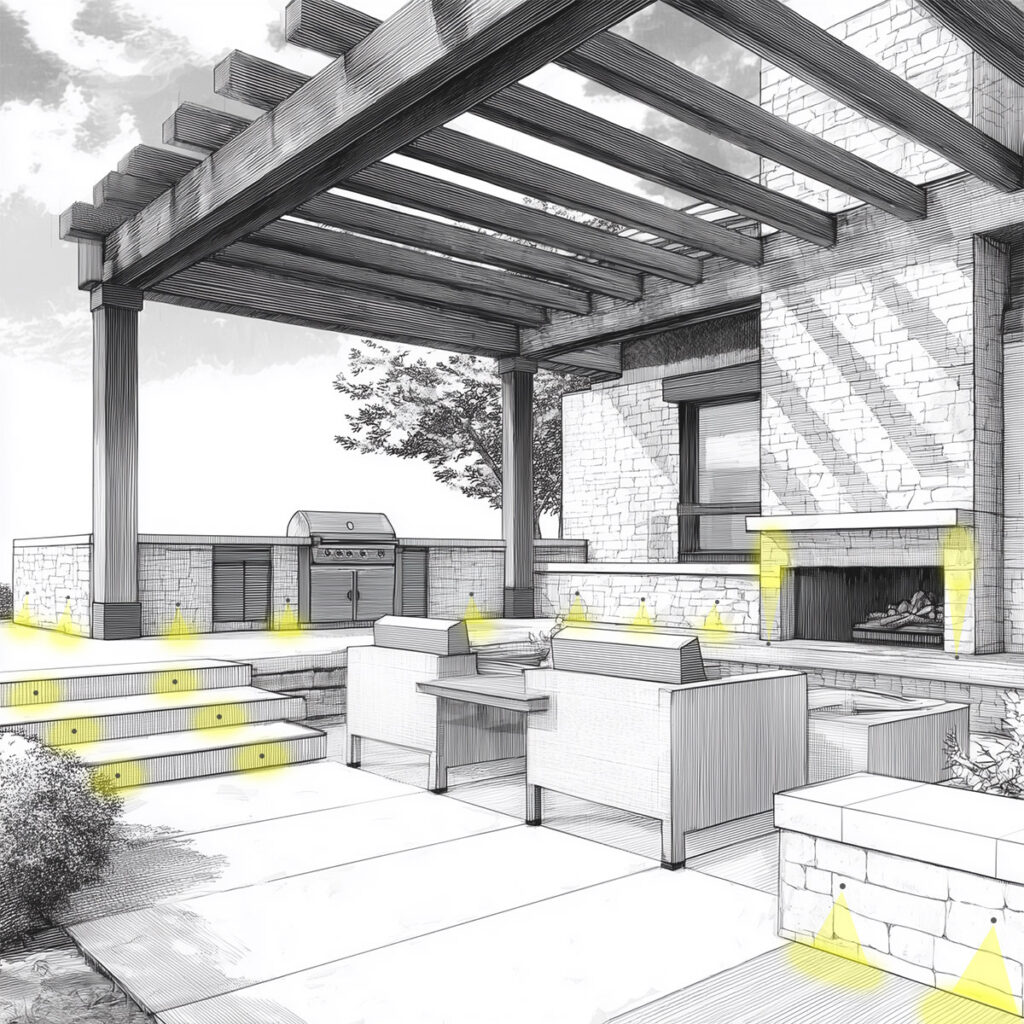

Outdoor Living Area Lighting
Small in-grade fixtures provide subtle perimeter illumination, step lights guide transitions, and uplights highlight the fireplace as a central feature.
Tailored Lighting for Your Project

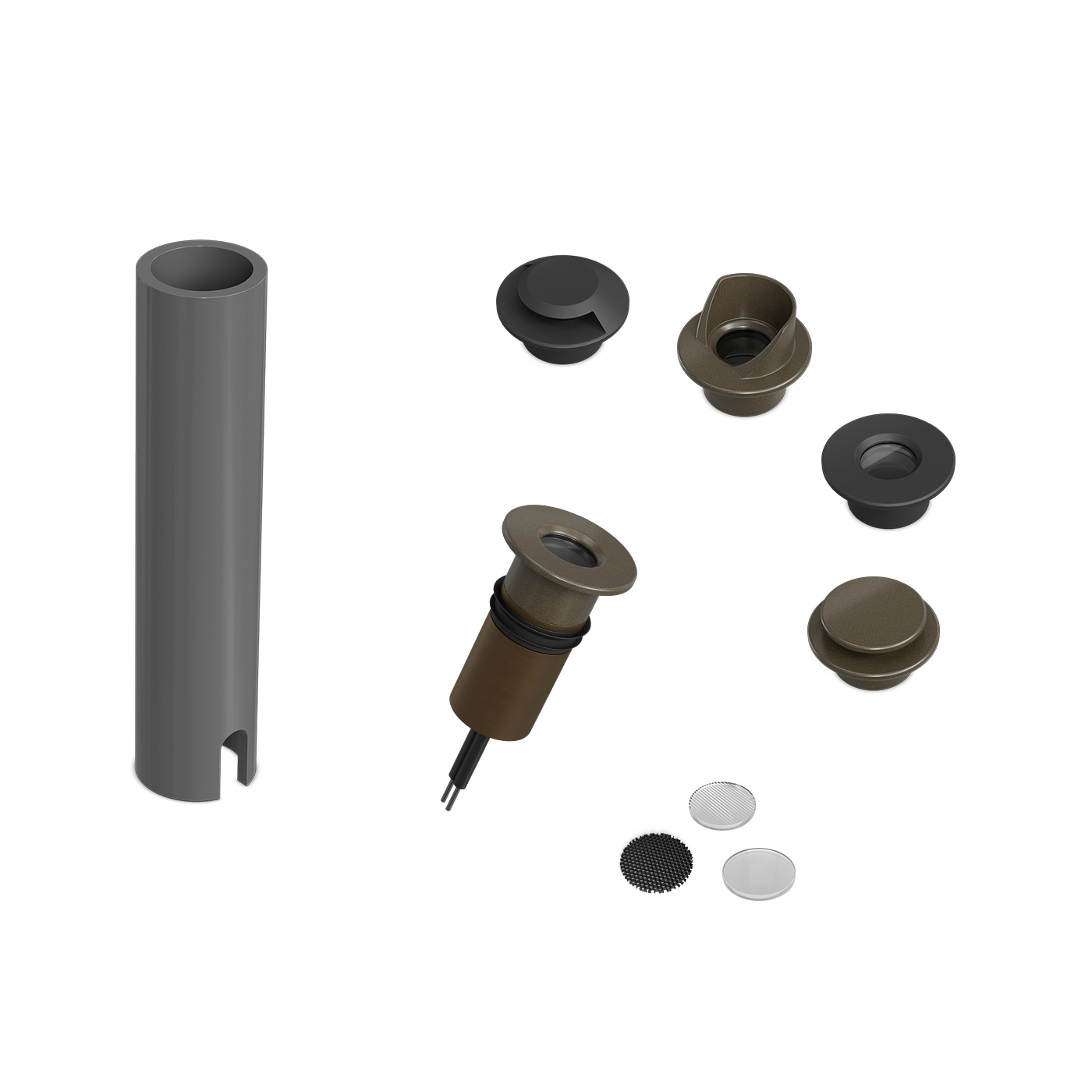

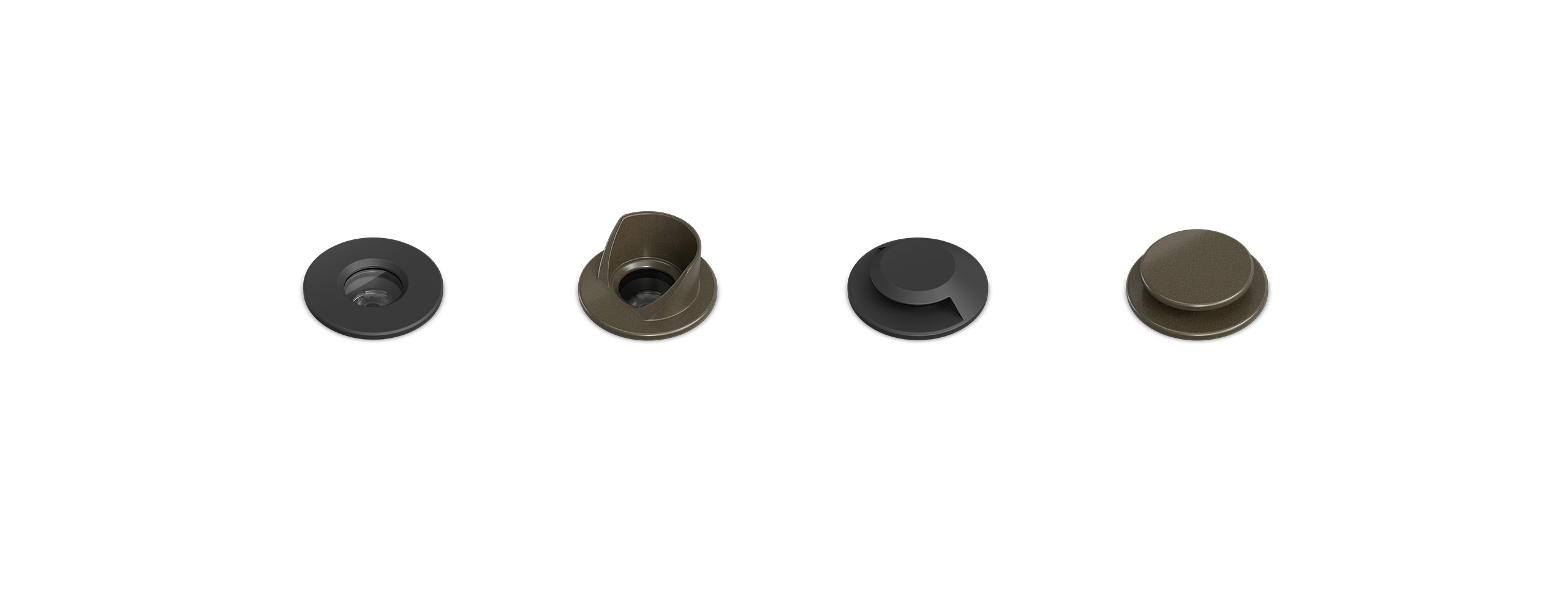

Available in Standard, Glare Shield, Top Cover 360°, and Top Cover 180° configurations. Precision-machined from corrosion-resistant brass and field-changeable after installation. Includes a PVC outer sleeve for simplified installation.
FIND YOUR PERFECT IN GRADE LIGHT
STANDARD, DIRECT VIEW
GLARE SHIELD
TOP COVER 360°
TOP COVER 180°
COMPARE FIXTURES

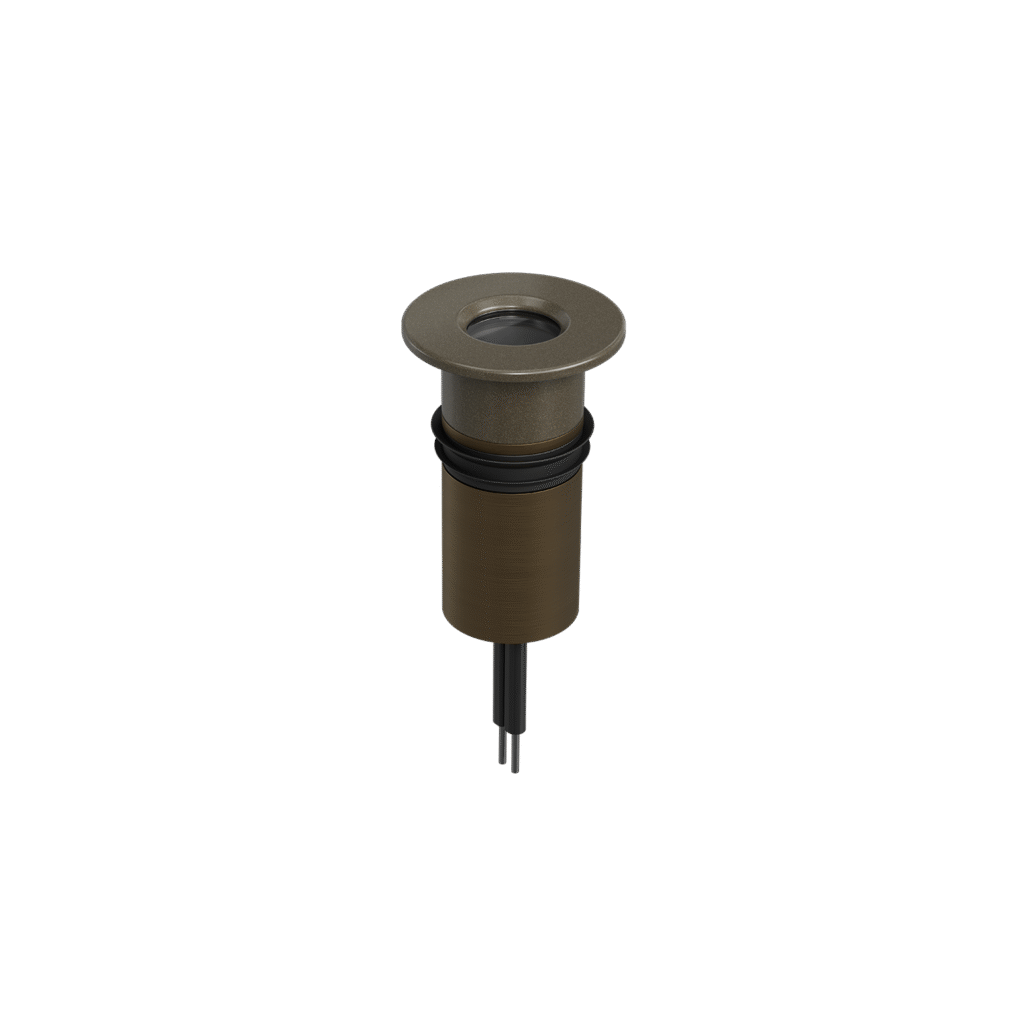

ARTOGL1
STANDARD,
DIRECT VIEW
Focused accent for architecture and landscape details.

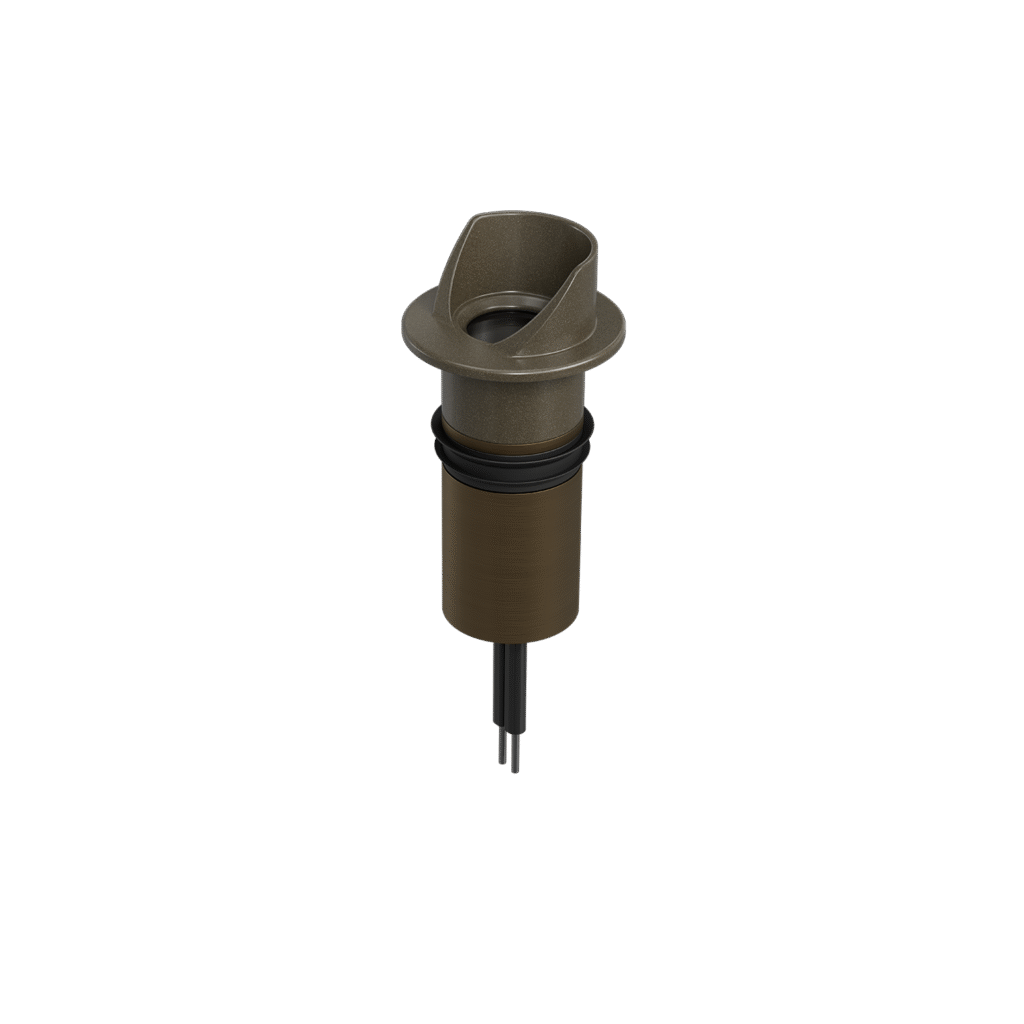

GLARE SHIELD
Controlled illumination
with reduced glare and
soft contrast.

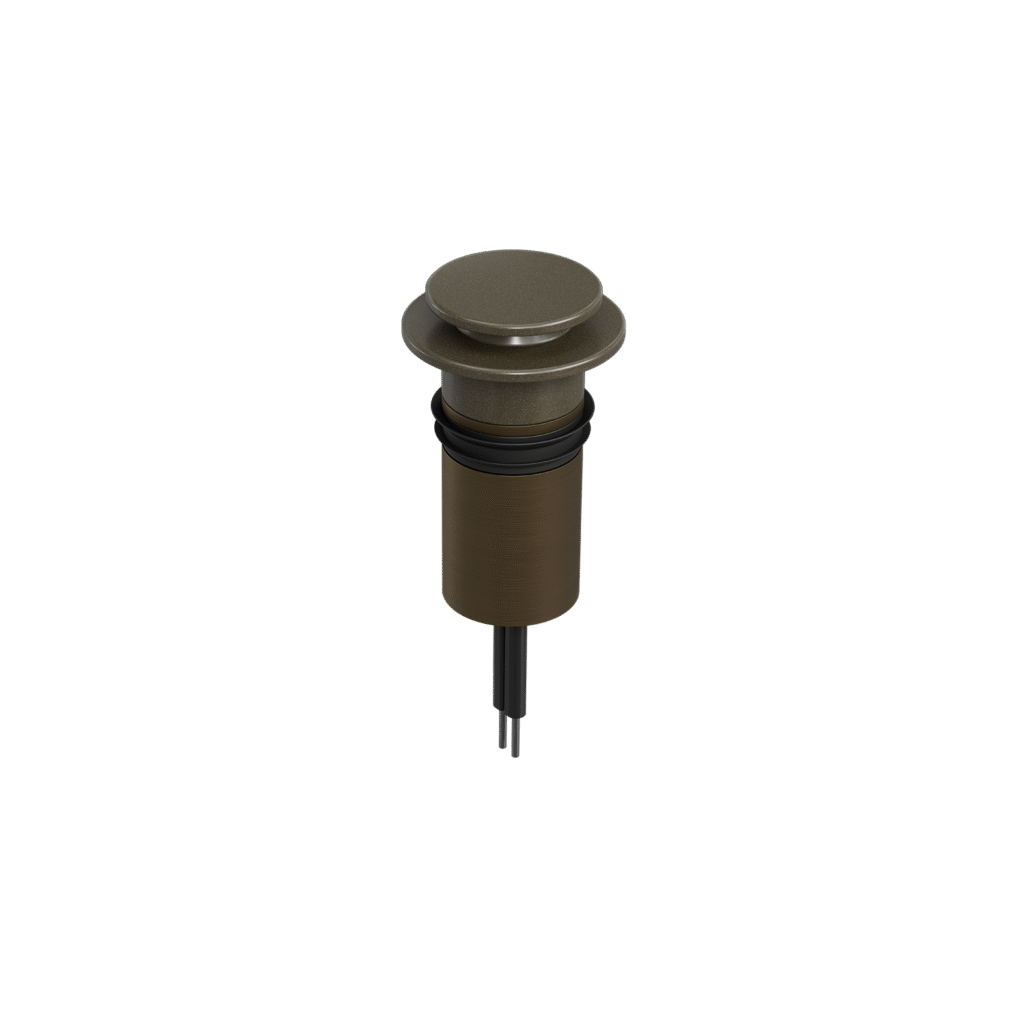

TOP COVER 360°
Uniform light for smaller
surfaces and safe
passage.
TOP COVER 180°
Half-beam light for pathways, steps, and edges.
Installation Diameter
0.98″ dia.
Bezel Diameter
1.50″ dia.
Optics
Narrow (20°), Medium (35°), Wide (60°)
Shield Optimized
Light Aimability
Full 360° rotation
Voltage
12V
Watts (Lumens)
1.7W (150lm)
Light Engine
HK LED
Light Quality
CRI 90
CCT Options
2700K, 3000K
Material
Solid corrosion-resistant brass with stainless steel hardware
Finish
Black Powder Coated Brass or Bronze Powder Coated Brass
Dimming
MLV or ELV Phase Control
Rated LED Life
50,000 hours
Drive-Over Rated
Yes
No
No
Yes
Dark Sky Compliant
No
No
Yes
Yes
Listings
CSA Listed for Wet Location, IP68. RoHS Compliant
All configurations ship with prewired leads and included accessories. The Integrated LED, shallow housing, and PVC sleeve reduce installation times, effort, and total project commissioning costs.
