ARTOGL1
1″ Step & Marker
IN-GRADE | 1.00″ dia.
1.7W (150lm) | 12V | HK LED, Amber
Ultra-compact 1″ step and marker light that installs anywhere and enhances details, plantings, and pathways.
FEATURES
Ultra-compact 1″ low voltage (12V) LED fixture for use as a Step, Marker, or In-Grade light in architectural outdoor and landscape applications.
- 1.7W integrated HK LED delivering 150 lumens. 2700 – 3000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.

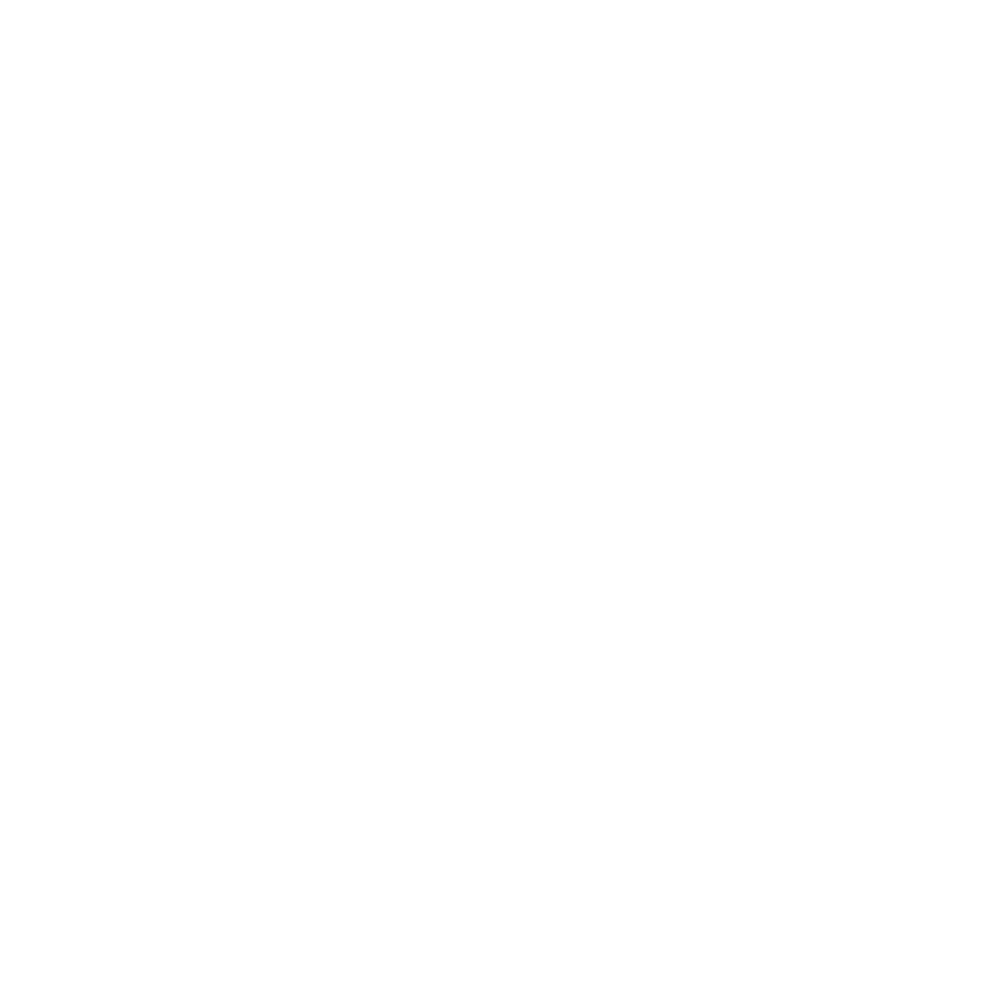

- Available in Standard Direct View, Glare Shield, Path/Wall Wash, Top Cover 360° and Top Cover 180°. Top Cover 360°, Top Cover 180° and Path/Wall Wash configurations meet Dark Sky requirements.
- Installs vertically or horizontally into masonry, stone, wood, pavers, decking—anywhere a 1″ hole can be drilled or PVC sleeve cast.
- Wet Location Listed, IP68 Standard.
- Precision-machined from corrosion-resistant brass. Finishes include Black and Bronze.
- 360° rotation adjustment after installation.
- PVC Outer Sleeve simplifies installation in soil or poured concrete.
- Every fixture tested end of line for water tightness and light quality.
ARTOGL1

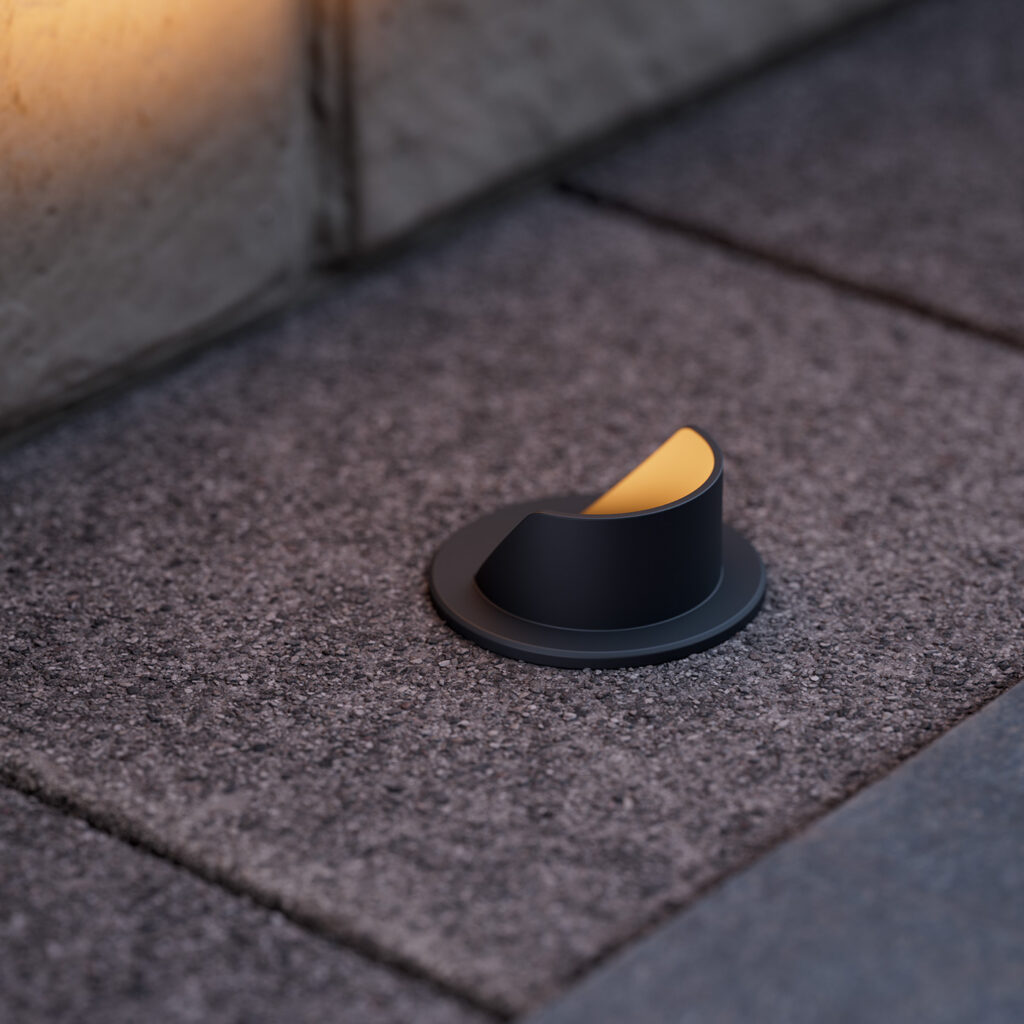

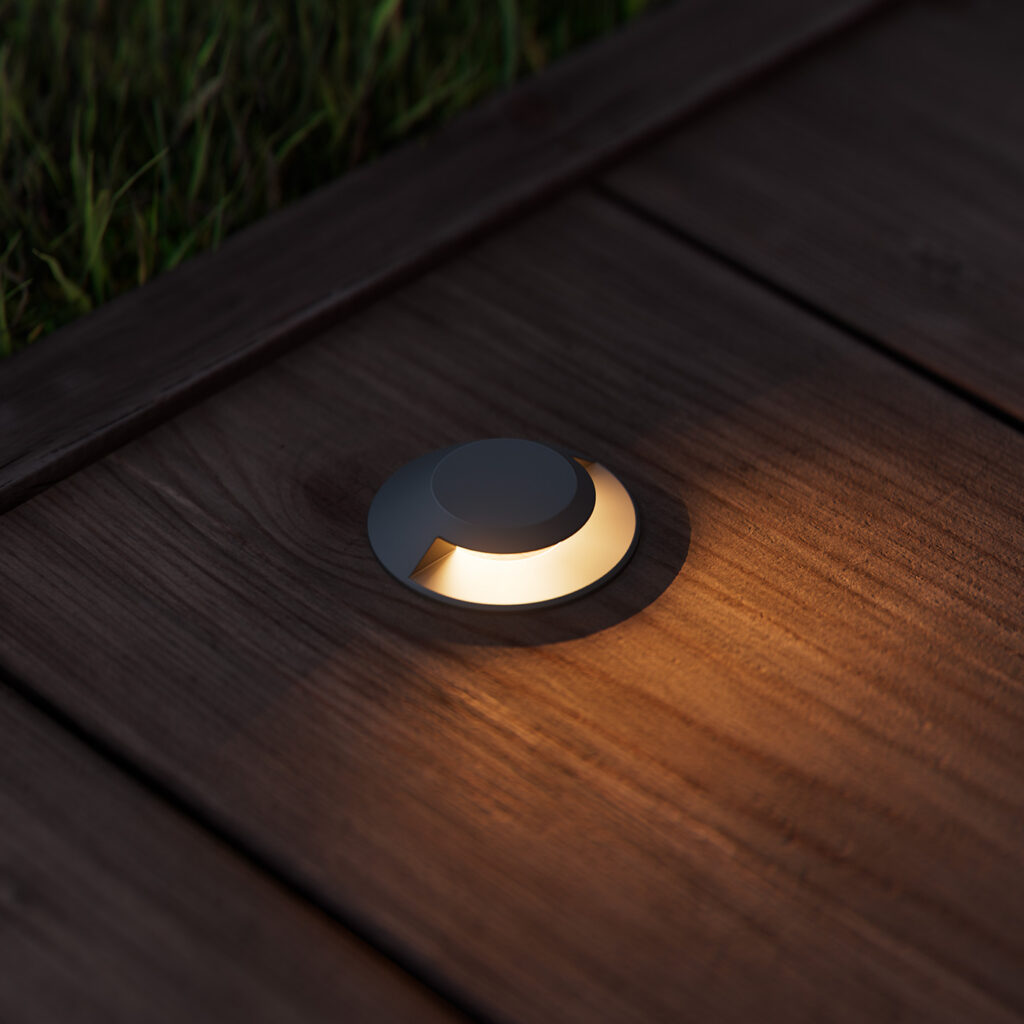

Compact and discreet, the ARTOGL1 is machined from solid brass and delivers 150 lumens with marine-grade durability. It installs into any drilled 1″ opening to highlight walls, plantings, steps, and pathways with subtle precision.
Focused illumination that shapes and defines the outdoor experience, delivering performance typically found in larger in-grade housings.
Installs in any nominal one-inch drilled hole. Placement in soil, decking, or concrete is simple, and the rotational aim system aligns the fixture cleanly without tools.

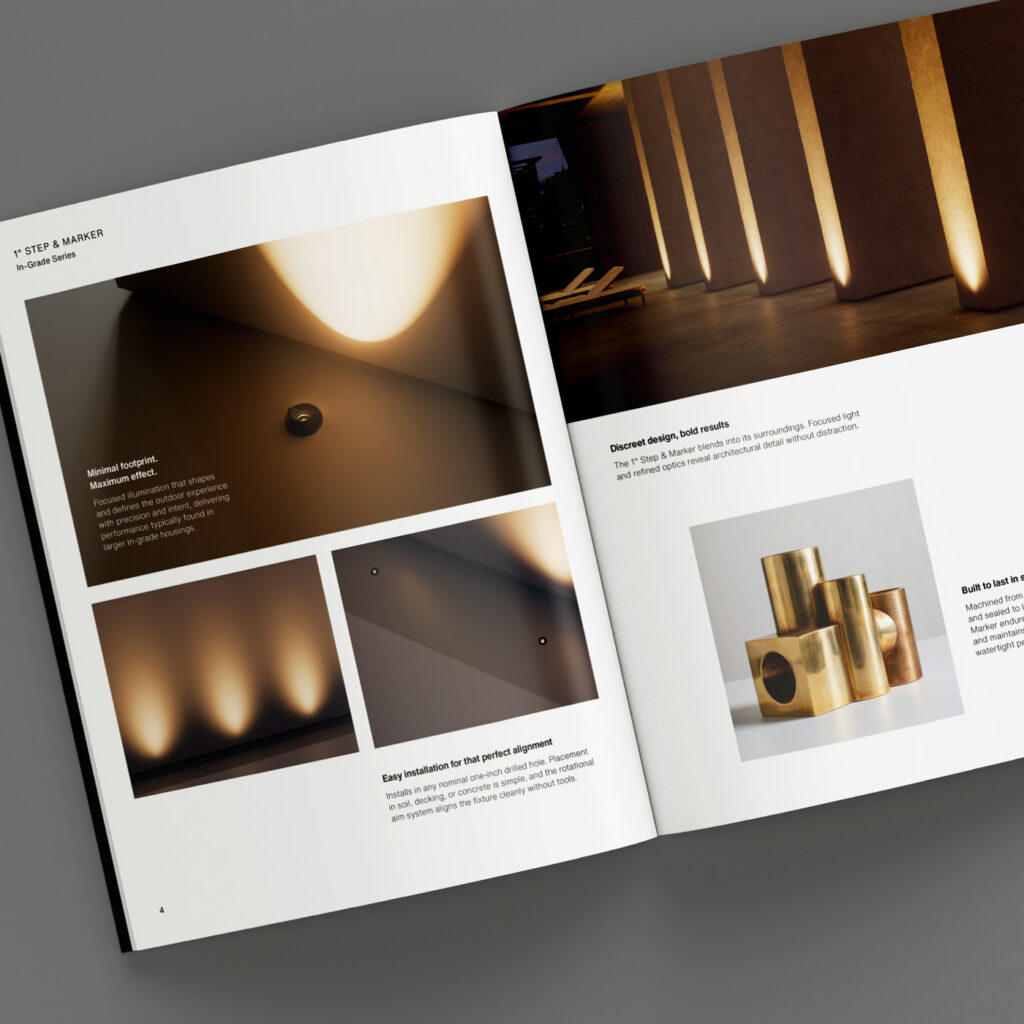

Explore the Complete Series
Download our brochure outlining features, performance specifications, and available configuration options.
Accessories

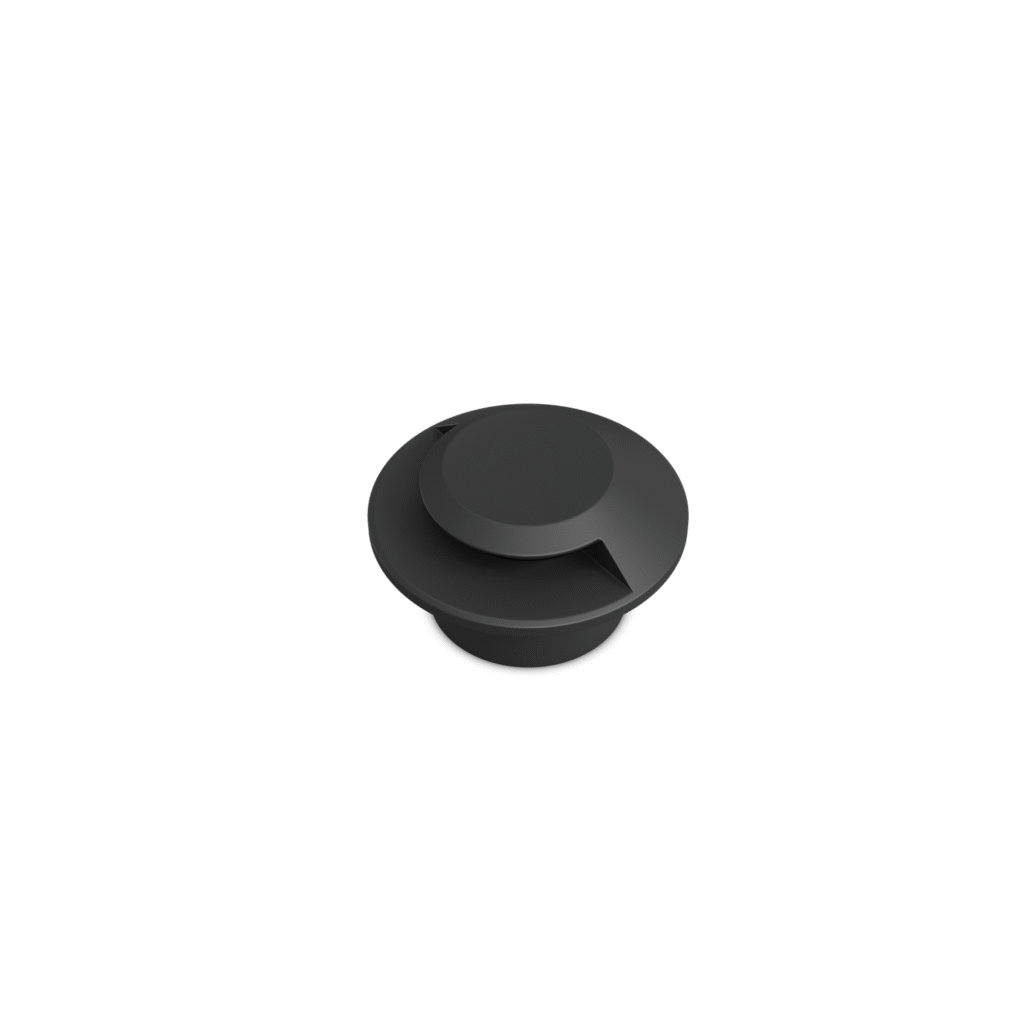

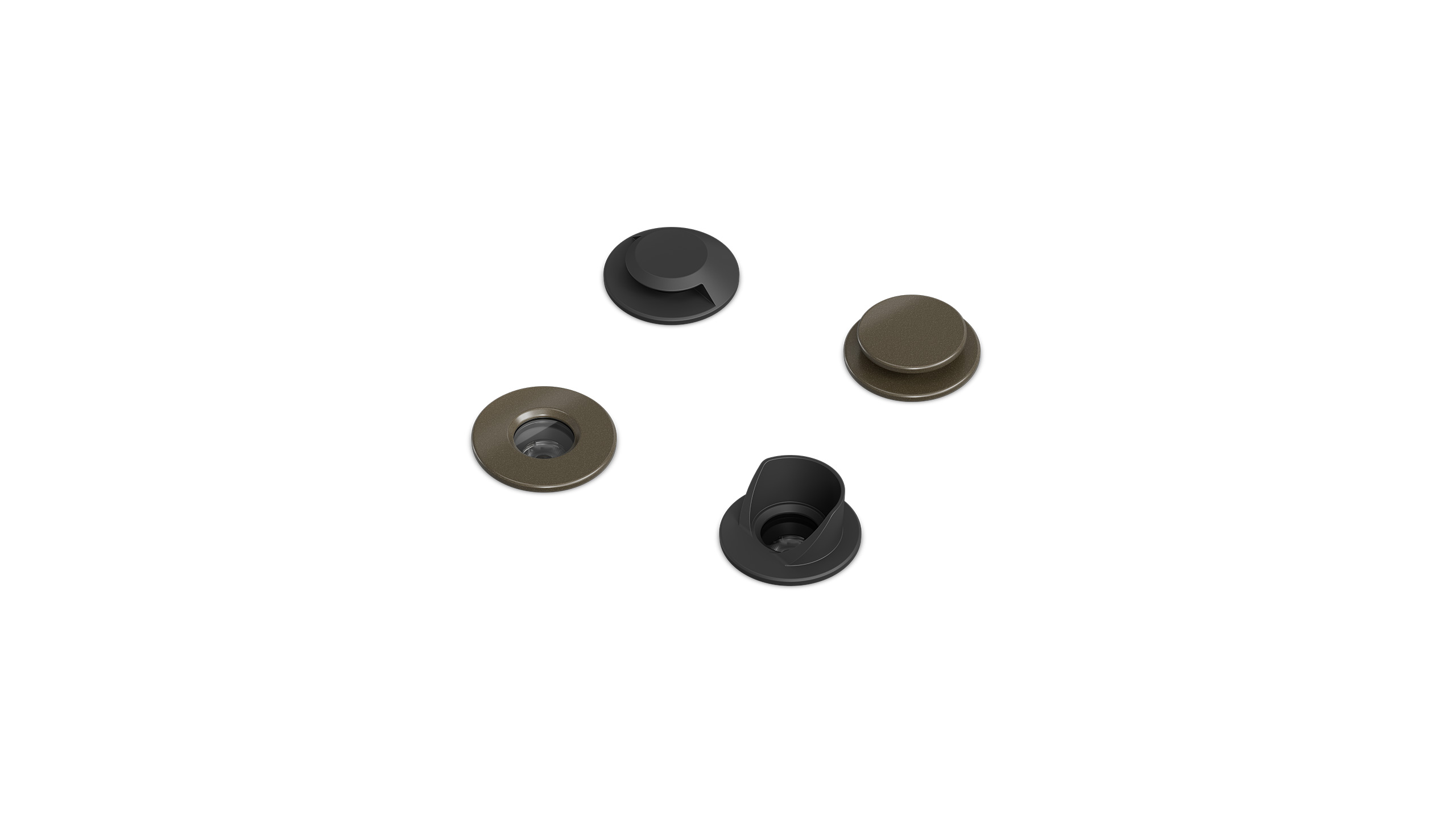

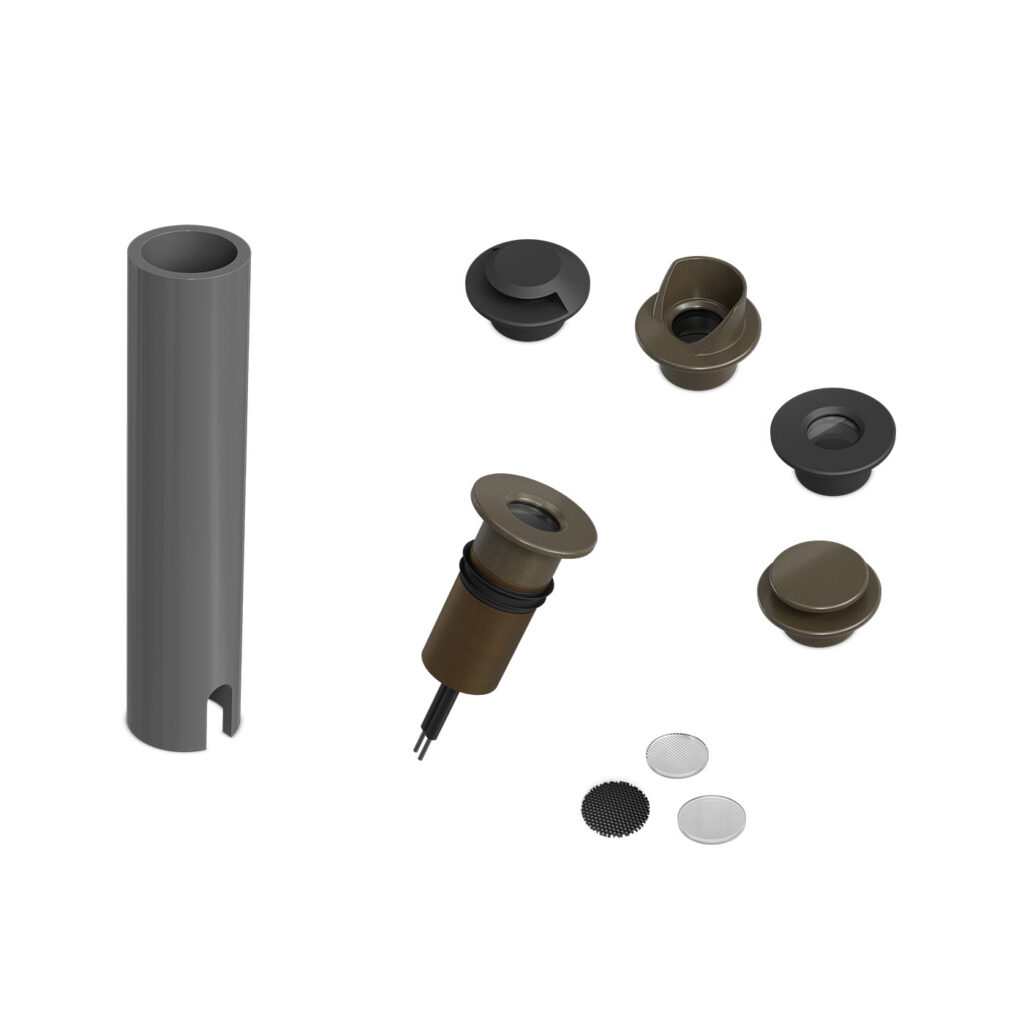

Field-configurable Shield Accessories let you shape the light effect as needed. Outer Sleeves simplify installation in concrete or soil.
COMPATIBLE ACCESSORIES
Specifications
ARTOGL1 Specs
BUILD
Materials
Machined from solid billet 360 brass with 316 stainless steel hardware and silicone placement gaskets.
Finish
Superior corrosion-resistant Black or Bronze powdercoat for a robust marine-grade finish.
Optional Shields
Glare, Top Cover 360°, Top Cover 180°, and Path/Wall Wash Shields available.
LIGHT OUTPUT
Optics
Narrow (20°), Medium (35°), and Wide (60°) beam spread options available for Standard and Glare Shield Styles. Accepts one optical accessory. Top Cover Styles includes Shield Optimized optic.
Light Engine
Innovative HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K or 3000K. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
POWER & CONTROLS
Voltage
12V AC/DC. Requires remote step-down transformer.
Wattage
1.7W HK LED delivers 150 lumens.
Dimming
MLV or ELV Phase Control dimming.
MOUNTING
Installs in any nominal 1″ drilled hole in soil, decking, masonry, pavers, or concrete. Included PVC Outer Sleeve aids installation. (See page 4 for details)
LISTINGS
CSA Listed for Wet Location, IP68 Standard. Standard Direct View and Top Cover 180° Shields are drive-over rated. Top Cover 360°, Top Cover 180°, and Path/Wall Wash Shields meet Dark Sky requirements. RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.

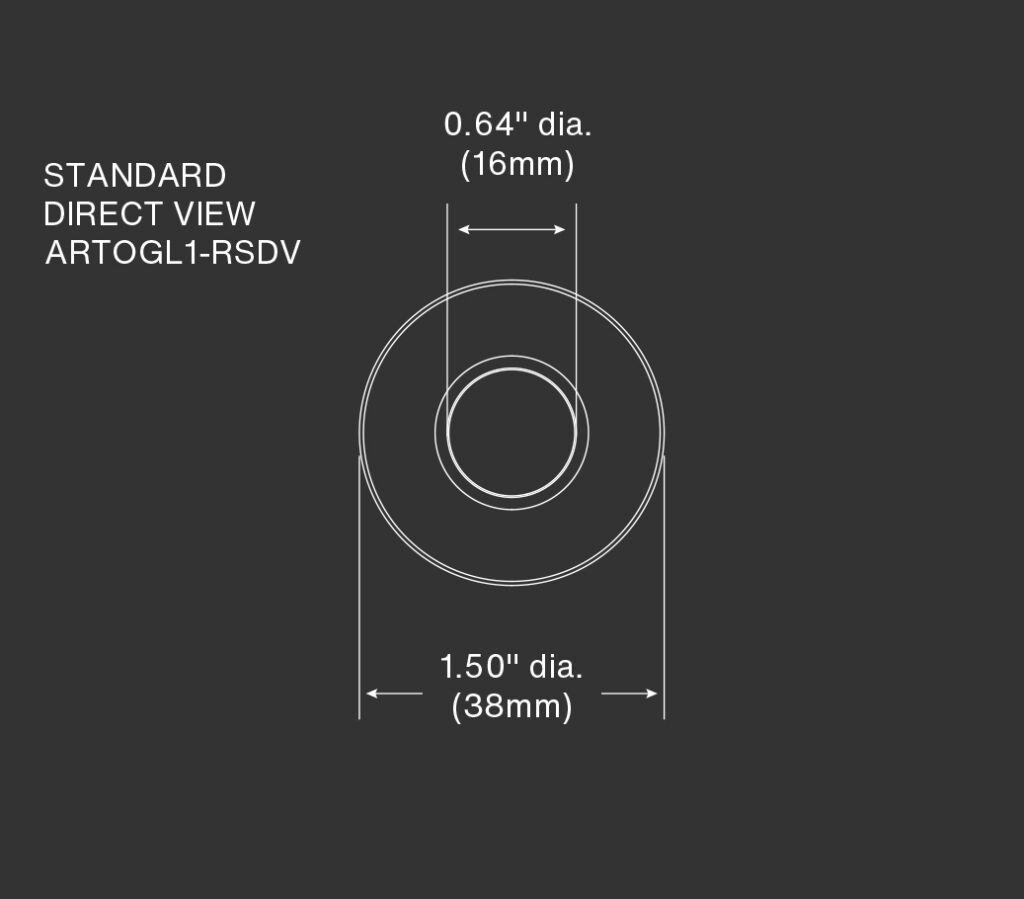

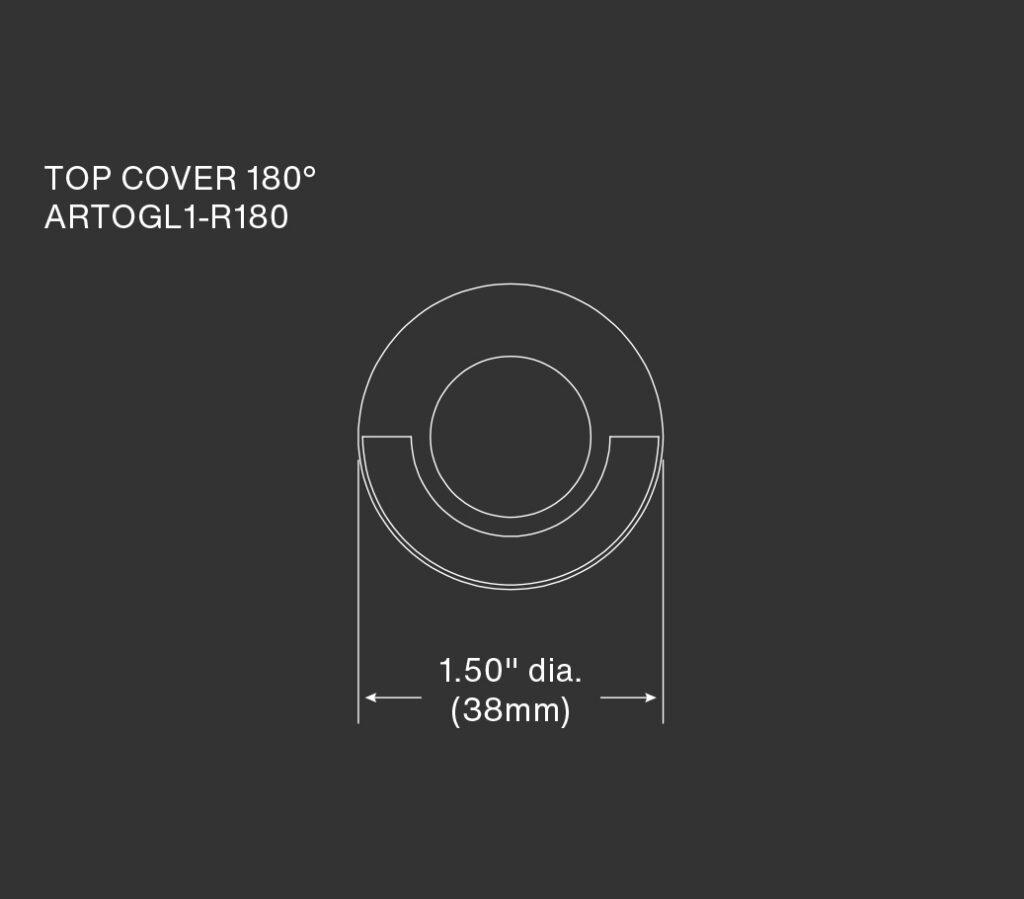

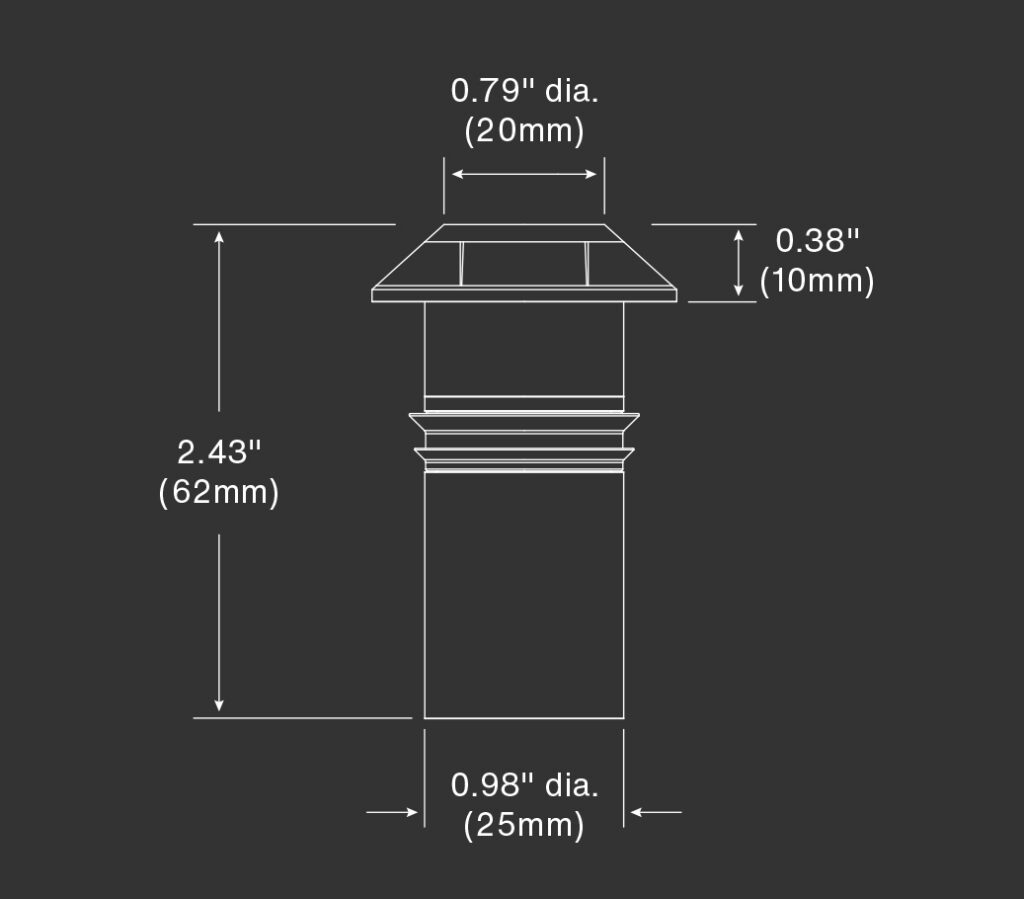

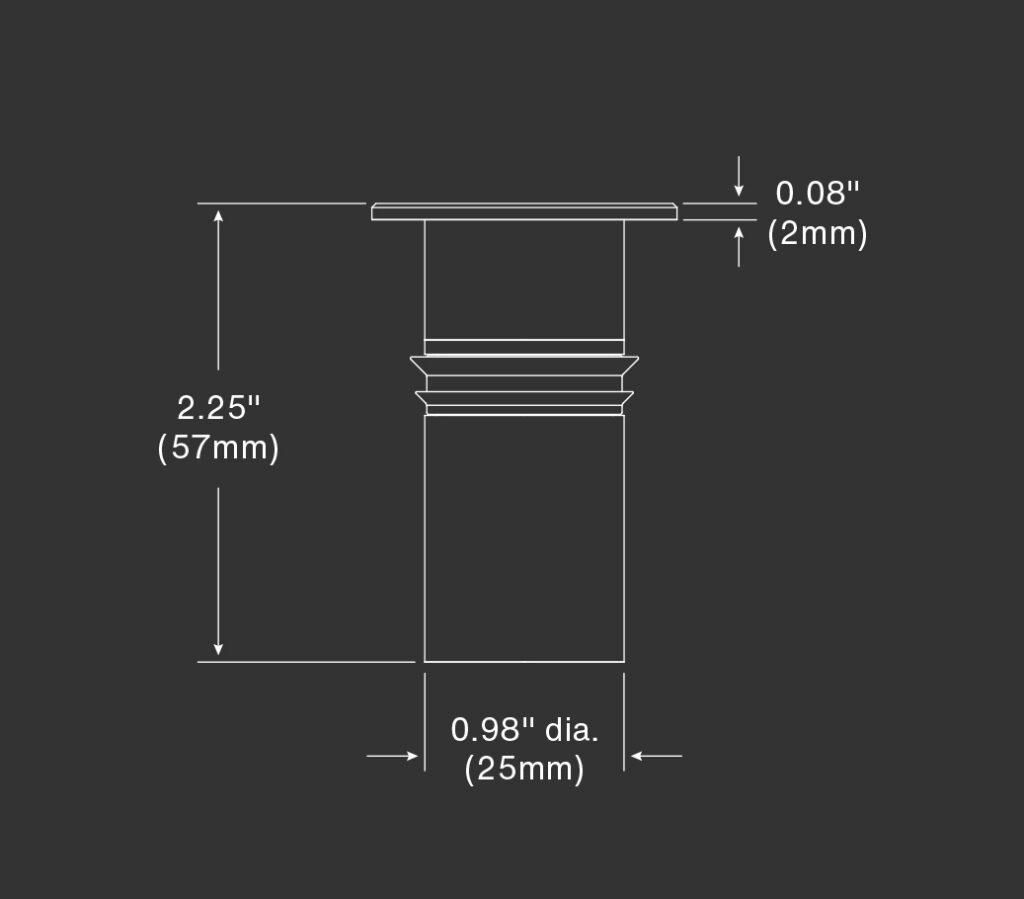

ARTOGL1 Dimensions
The ARTOG1 Step & Marker Light is built to your specifications. Configure optics, shield style, light color, and finish. Ships in 2 weeks.
