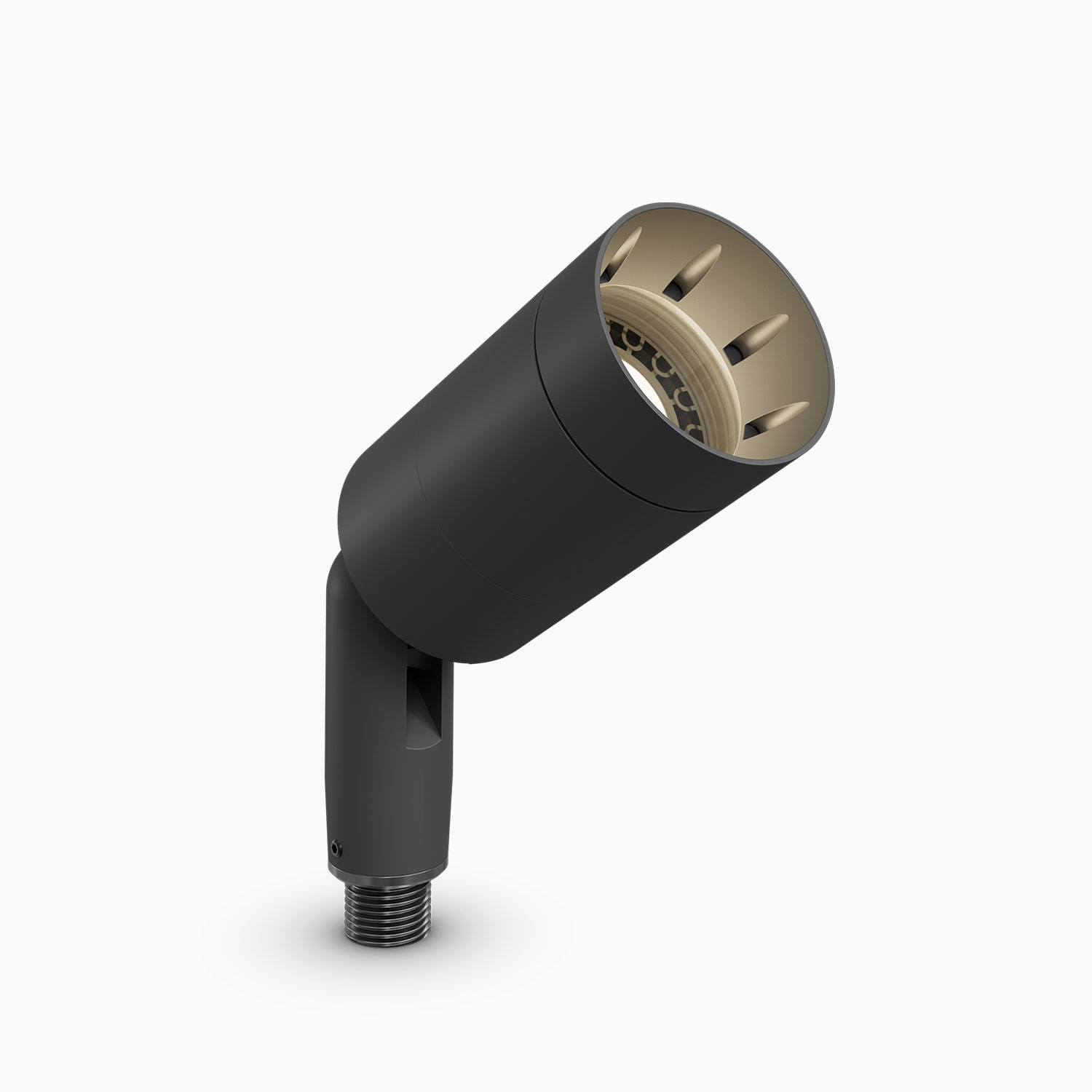

ARTOA16 CP
ACCENT | 2.25″
7.5W (640lm) | 12V | SORAA, LED Lamp, Halogen

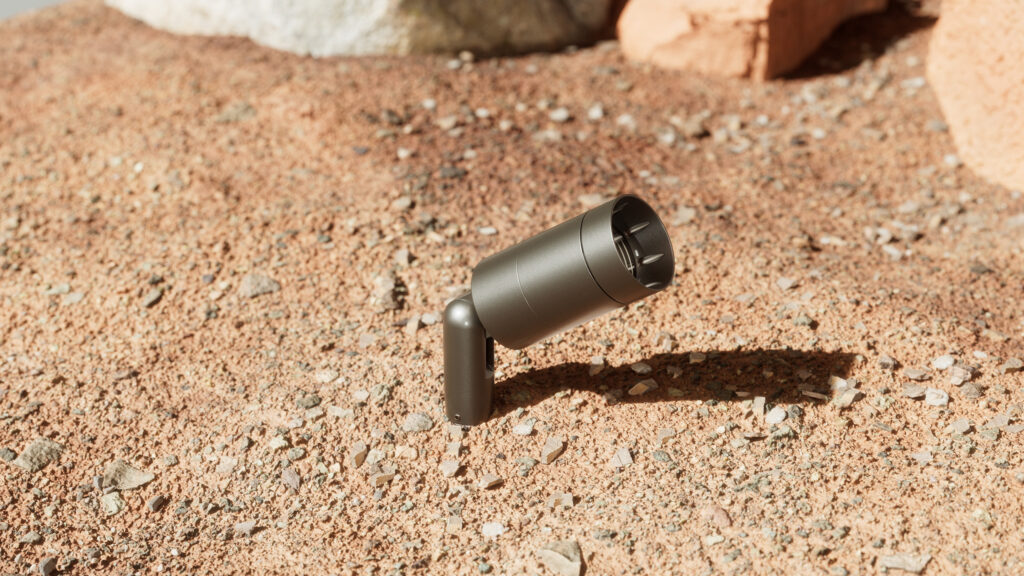

MR16 Lamp-based traditional Accent Light for trees, palms, and architectural features.
FEATURES
- Versatile round, directional MR16 (GU 5.3) traditional Center Pivot accent light for residential landscape and outdoor architectural environments.
- Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- Innovative hydrophobic lens coating ensures clean, bright light for years to come.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Field changeable optical lensing available.
- Available with Angled Glare Shield and ground, surface, or canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.

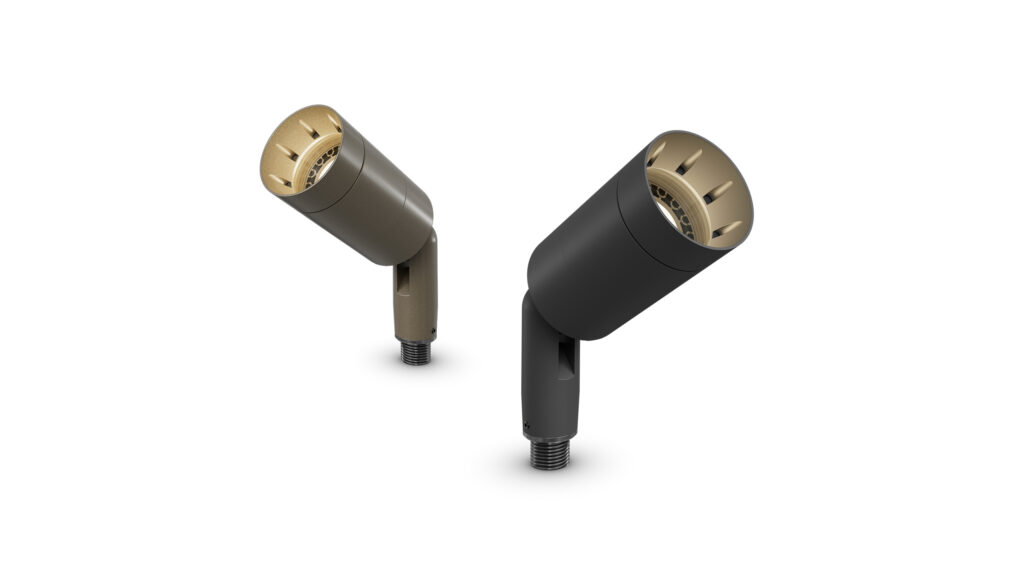

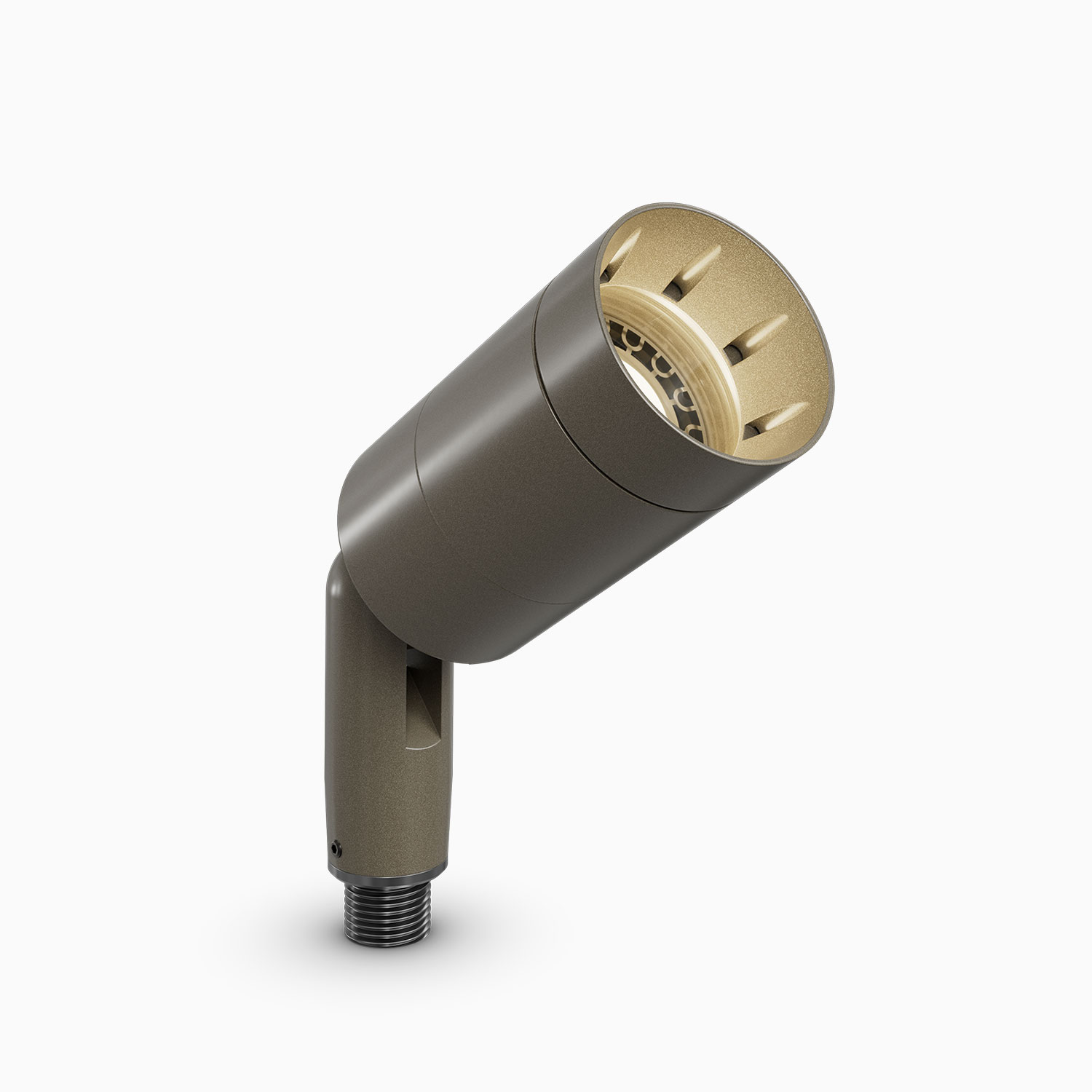

ARTOA16 CP
This traditional center-pivot Accent Light uses a replaceable MR16 lamp to deliver up to 640 lumens of flexible output. It’s ideal for highlighting trees, palms, or architectural elements where you want lamp choice and long-term serviceability. The distinctive side-pivot arm offers a clean, contemporary profile.

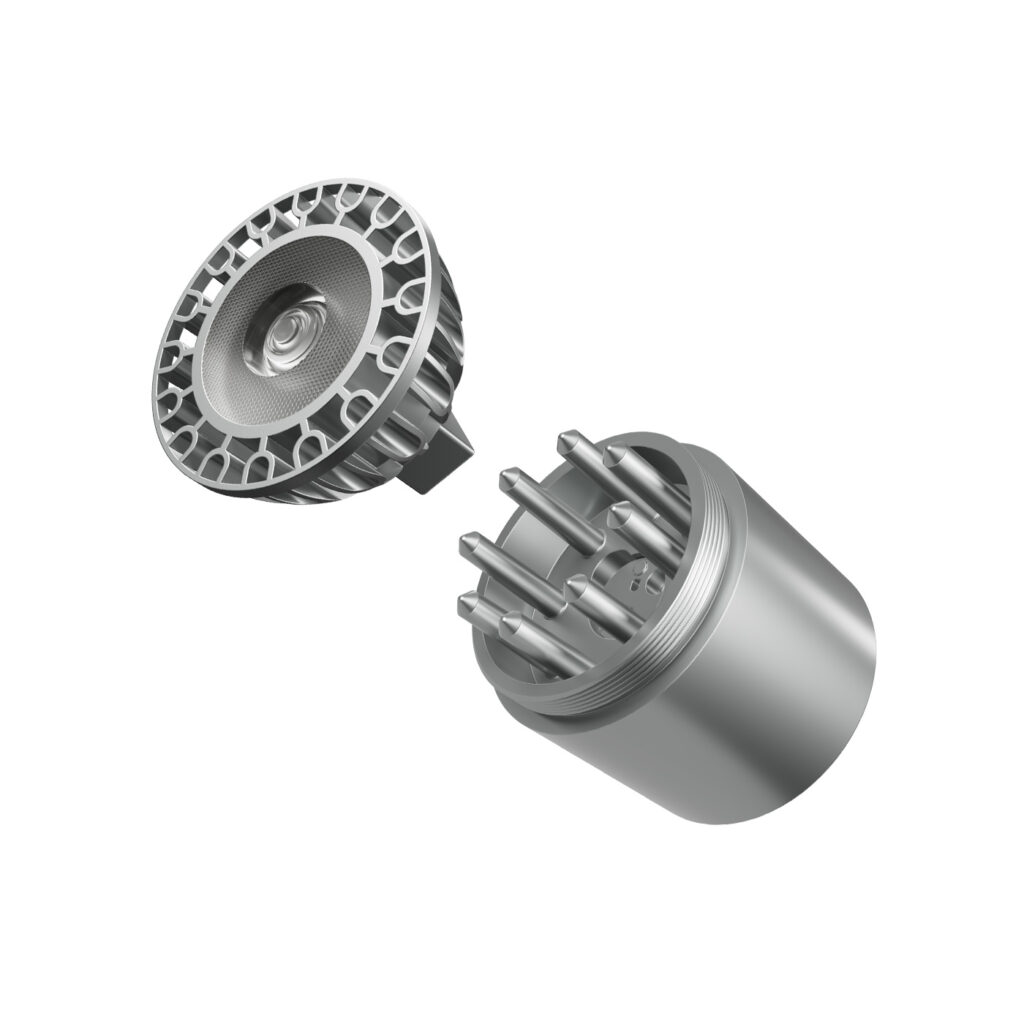

Patented Thermobuster™ lamp base improves heat dissipation, allowing even the highest wattage SORAA® lamps to operate at full performance and lifespan.
Accessories

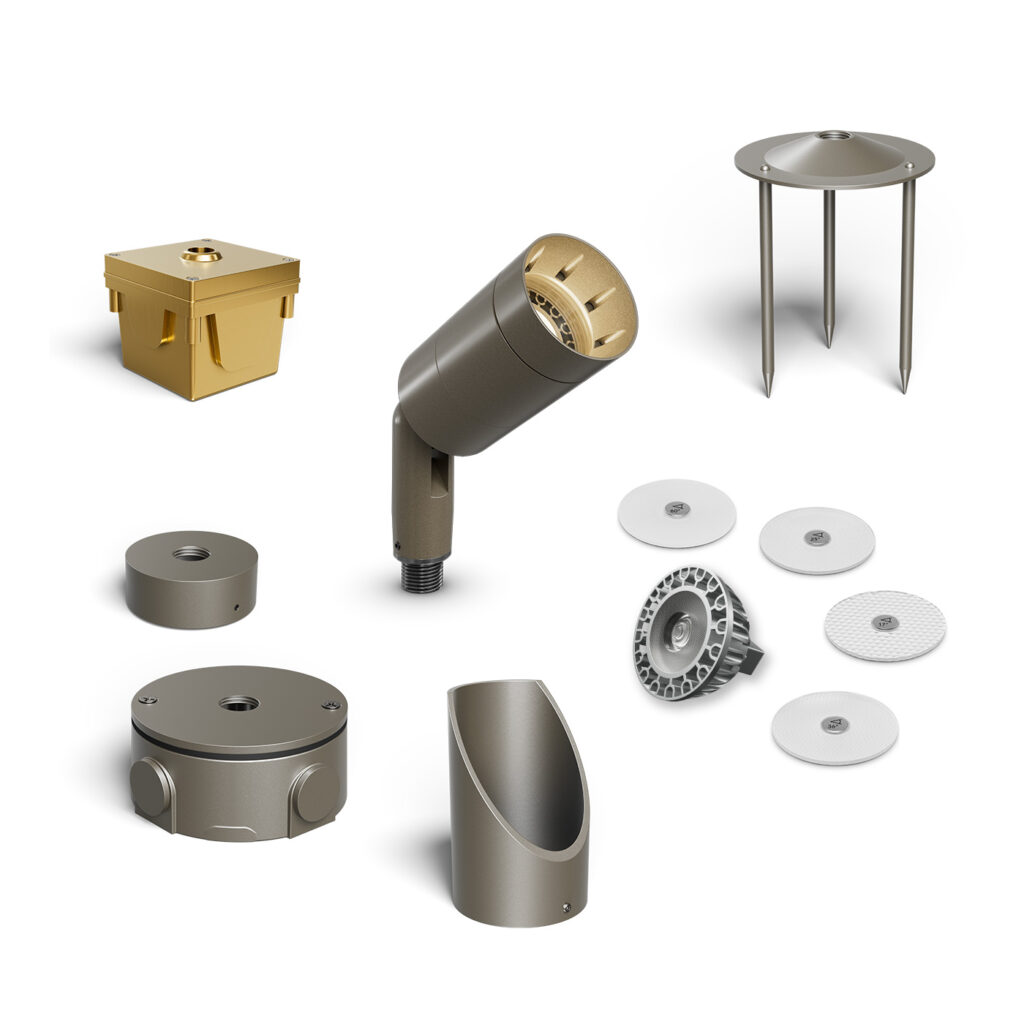

Field-changeable lenses, single- or three-prong in-ground stakes, and color-matched architectural mounts expand ARTOA16 performance and installation versatility.
COMPATIBLE ACCESSORIES
Specifications
ARTOA16 Center Pivot Specs
BUILD
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.
Hood and Glare Shield

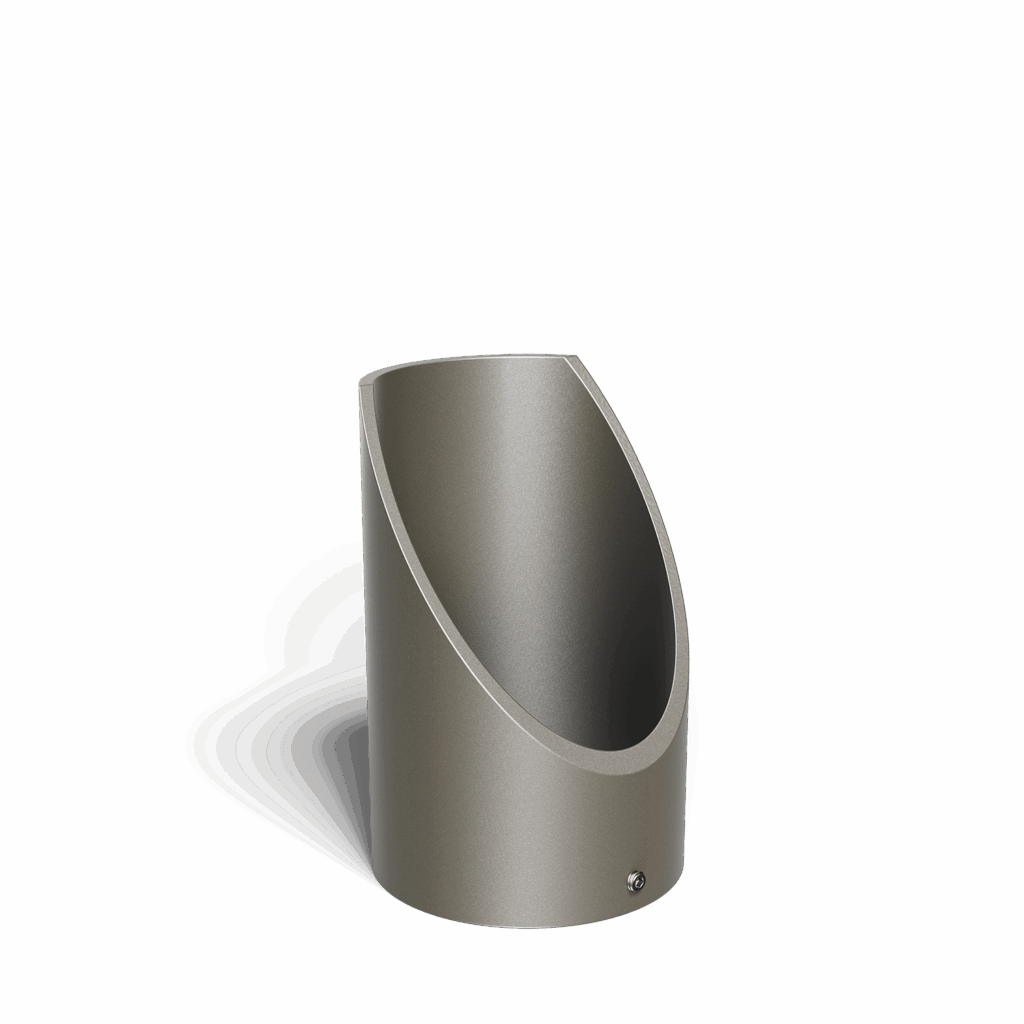

Weeping Hood Style. Angled Glare Shield available. (See page 4 of Spec Sheet for details).
LIGHT OUTPUT
Optics

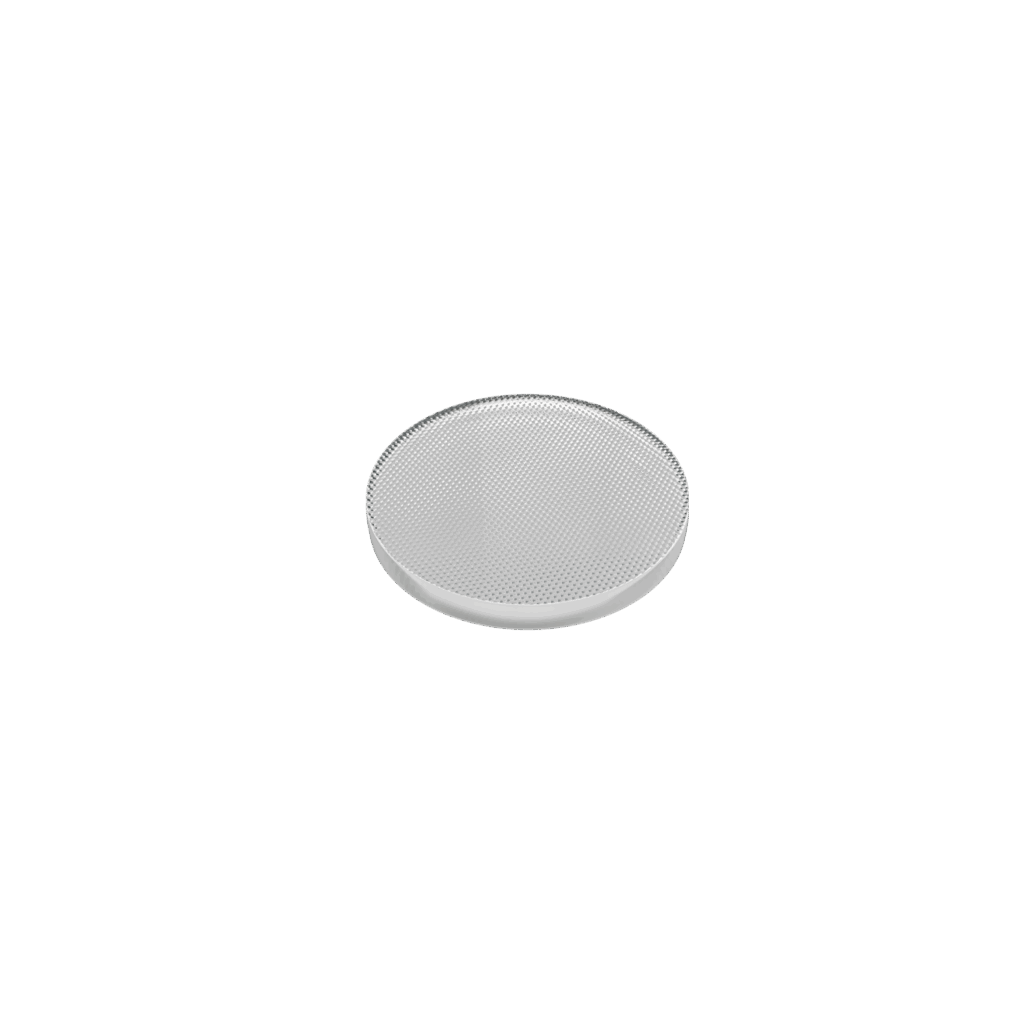

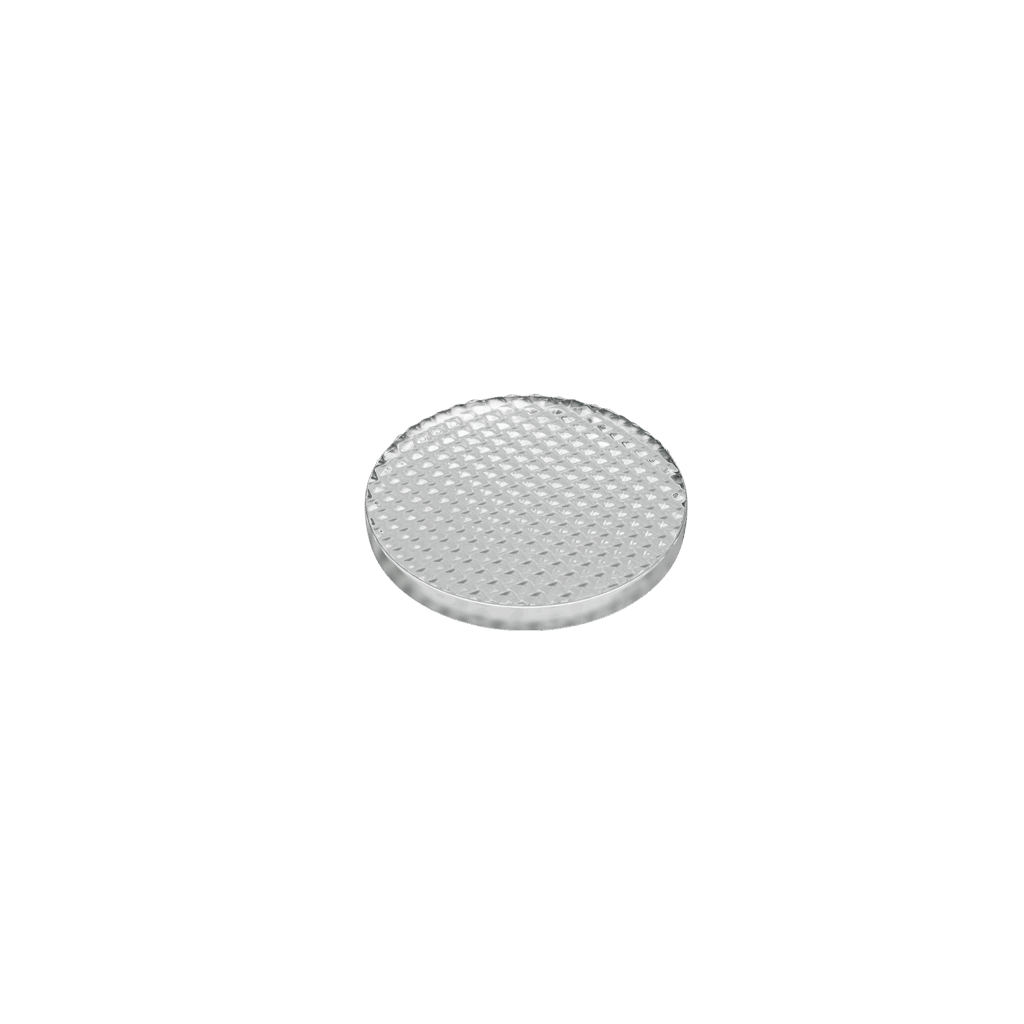

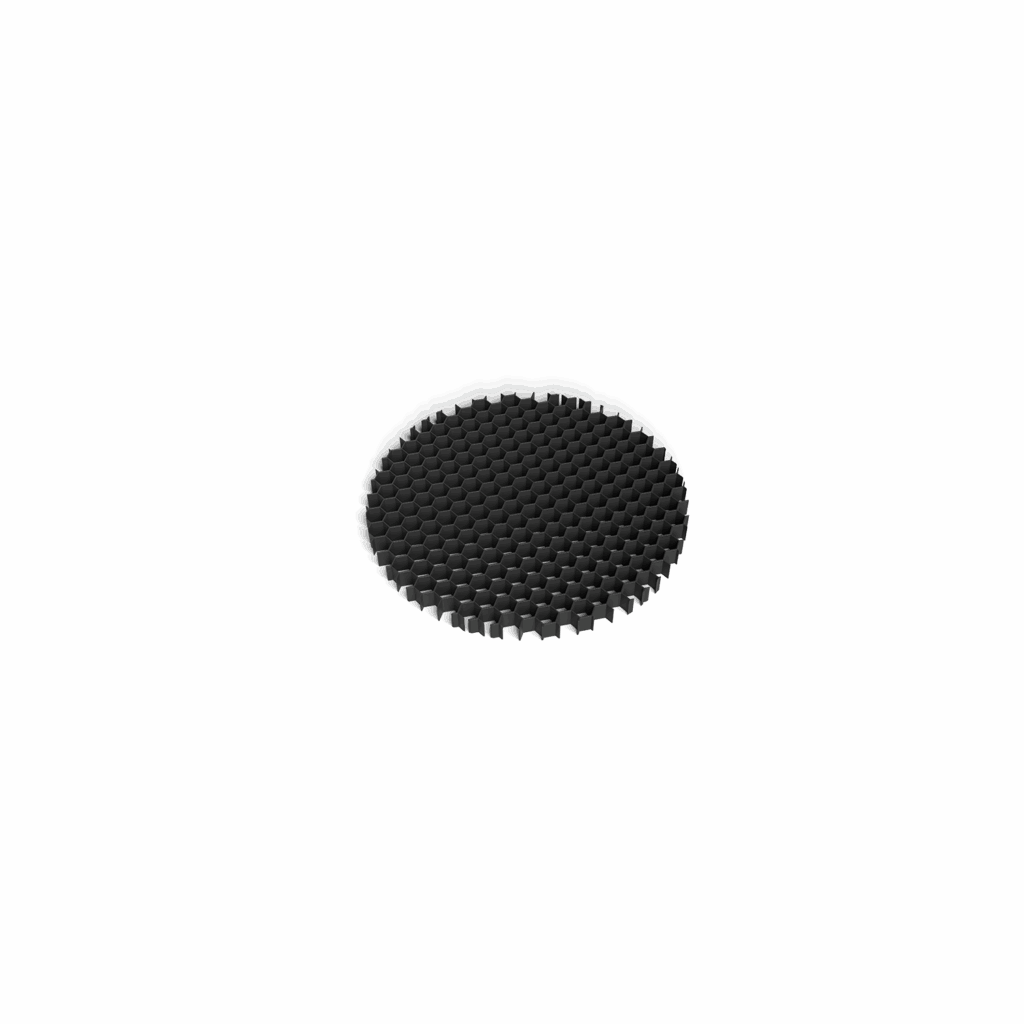

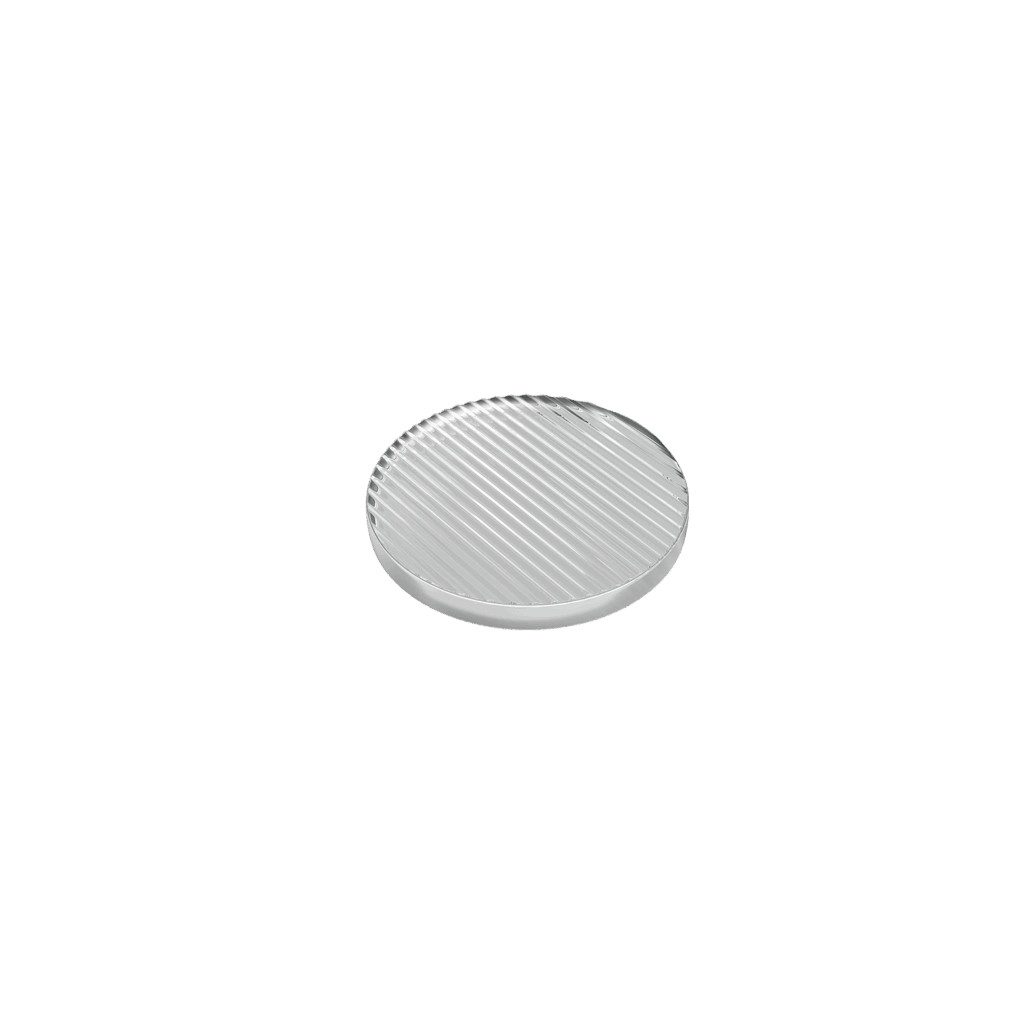

Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Lamp Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring.
Light Engine
MR16 Halogen lamp or MR16 SORAA LED lamp. Provided SORAA Lamp is CRI 90 and available in 2700K or 3000K CCT. (More information in the SORAA MR16 GU5.3 lamp selection of SORAA website).
POWER & CONTROLS
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen lamp.
Dimming
MLV, ELV Phase Control dimming. (Please refer to SORAA website for SORAA MR16 dimmer compatibility).
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.
MOUNTING
Mounts using 1/2″-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details).
LISTINGS
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

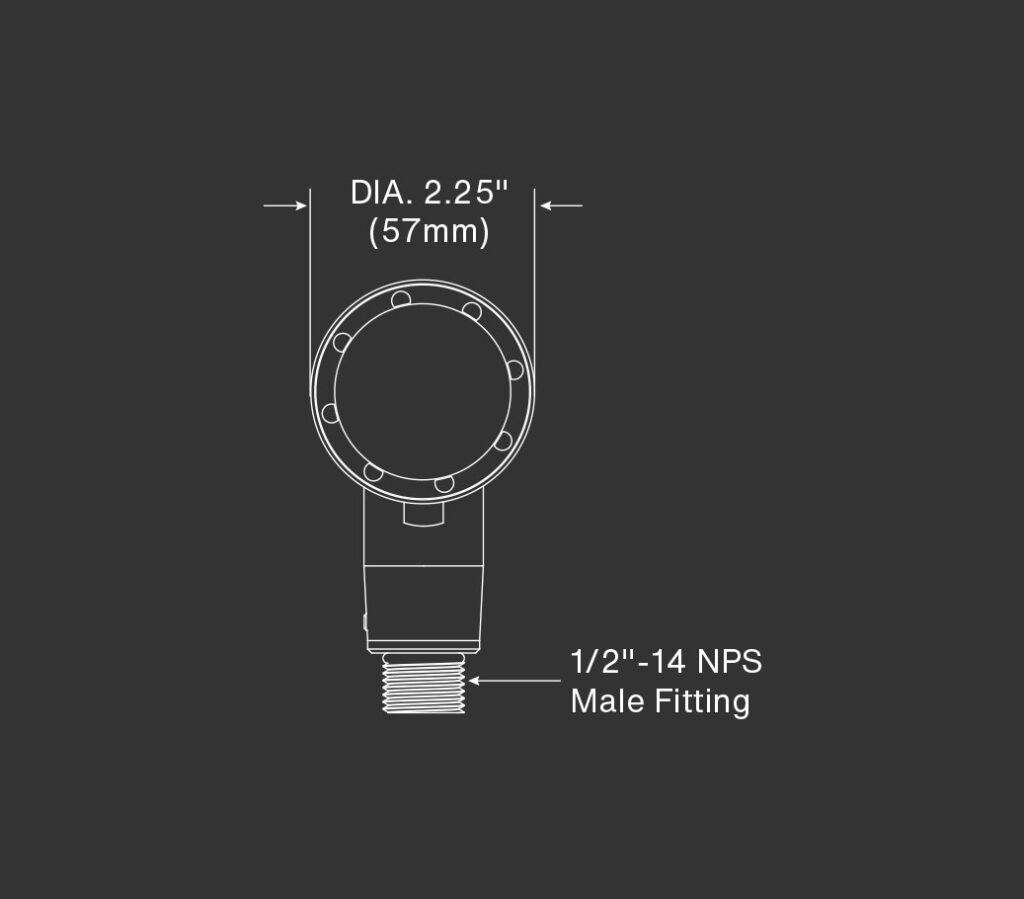

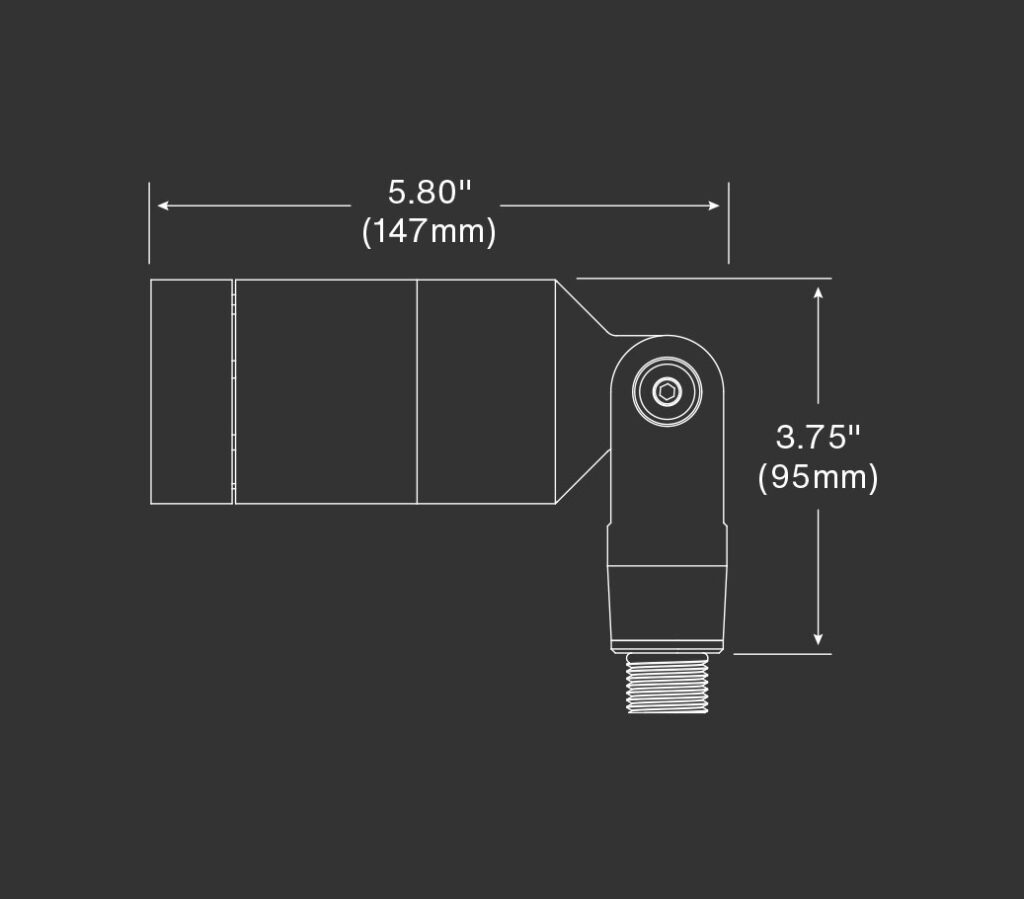

ARTOA16 Center Pivot Dimensions
The ARTOA16 CP Accent Light is built to your specifications. Configure lamp type, optics, finish, and select from available glare shield and mounting options. Ships in 2 to 4 weeks.
