Sentinel ARTOSLA16
SECURITY | 2.25″ dia.
5–10W (500–950lm) | 12V | HK LED, Amber

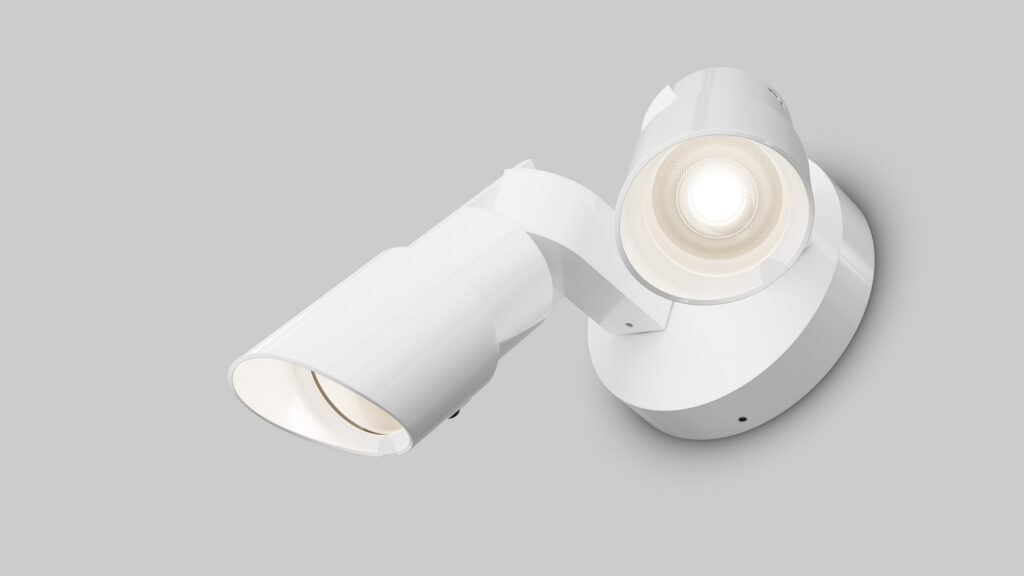

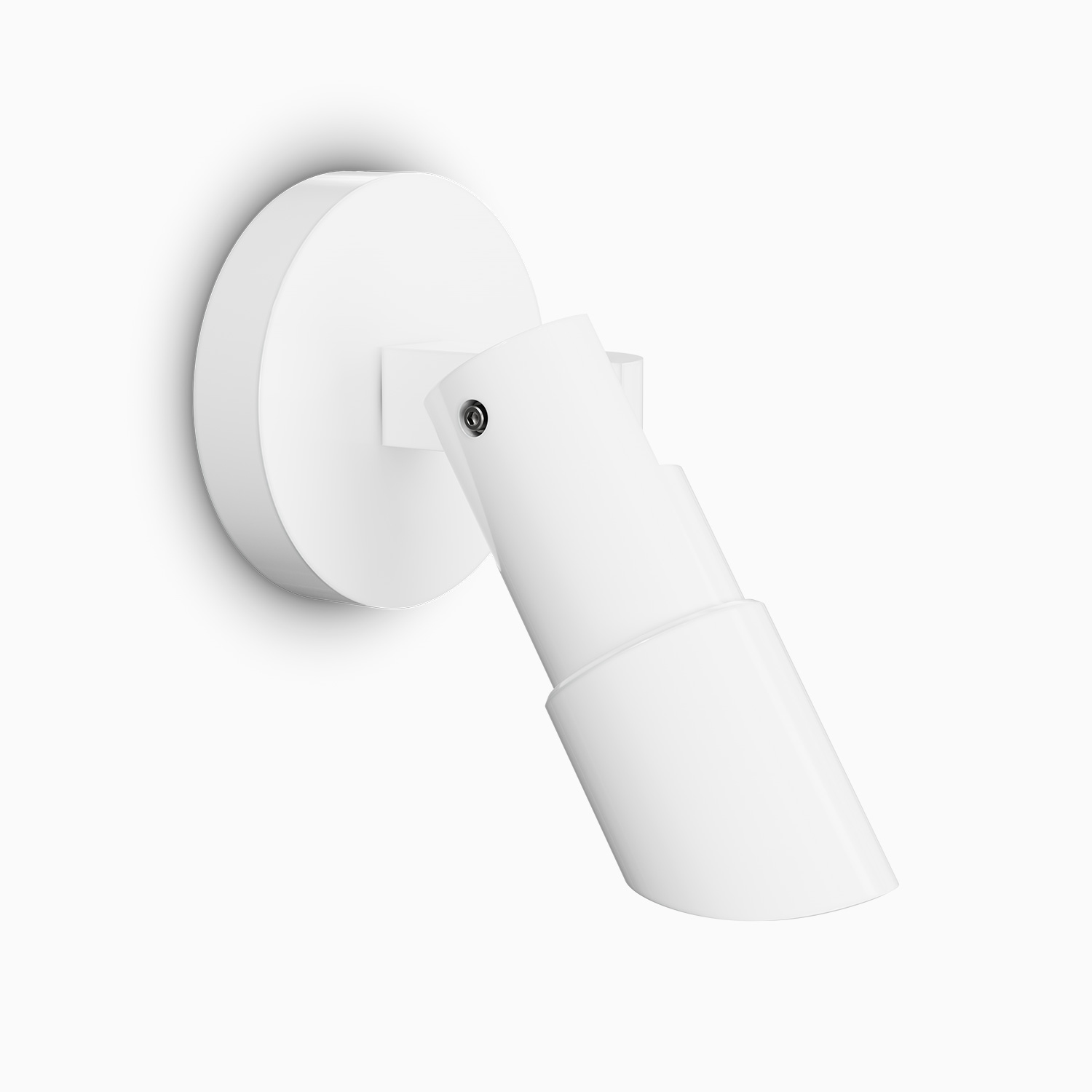

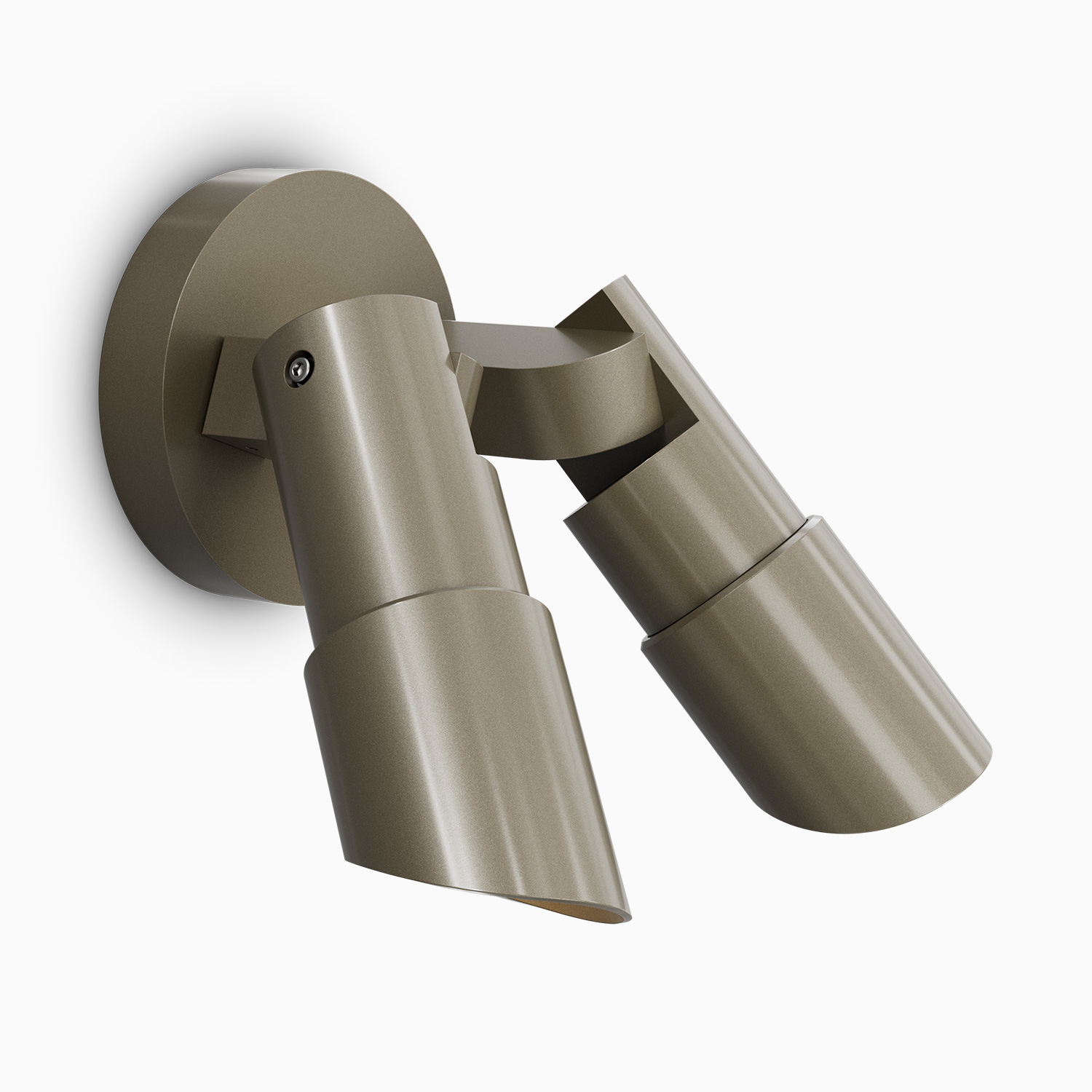

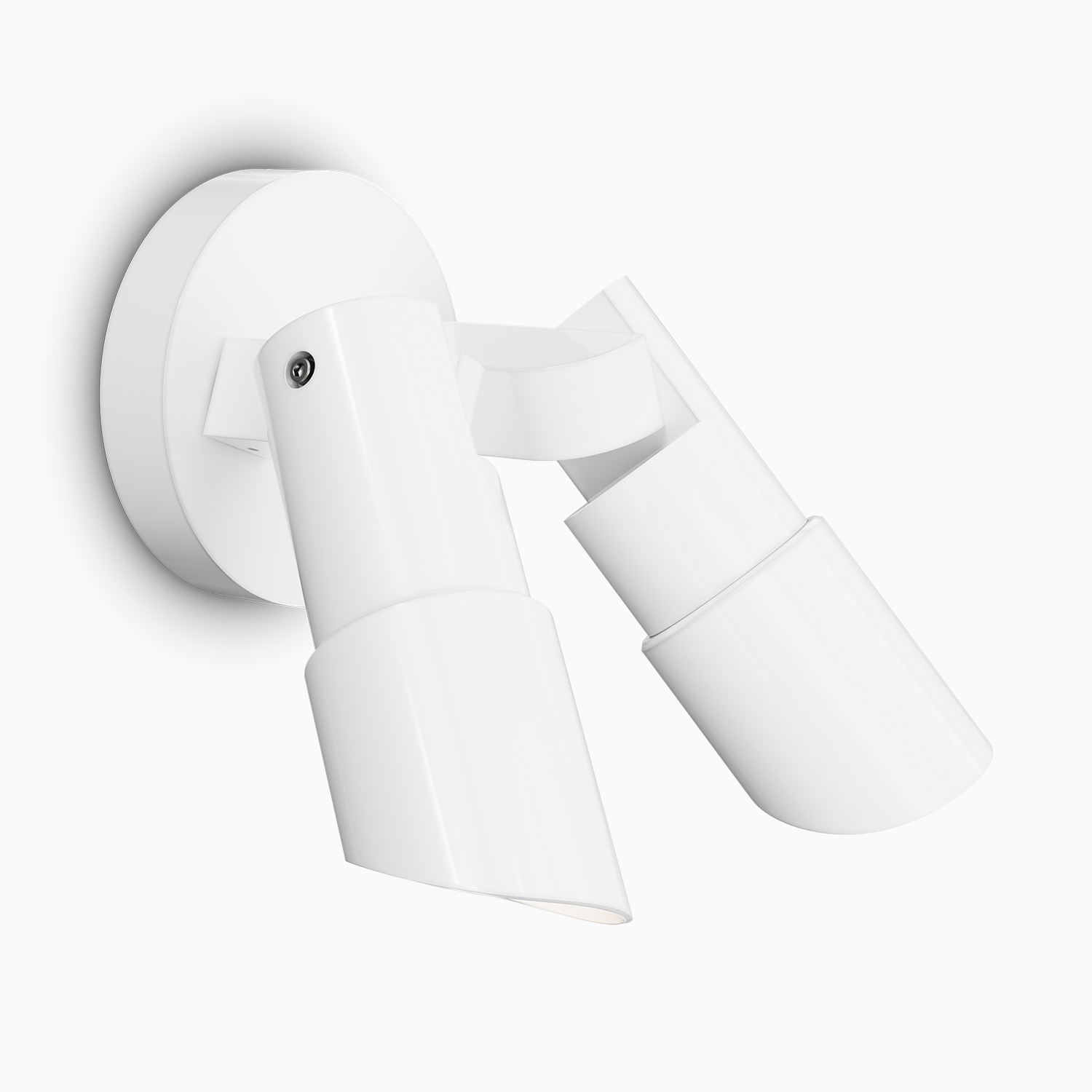

Single or double-head modern side pivot style low-voltage, 12V fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting. Features the Sentinel Adjustable Beam Optic for precise aiming.
FEATURES
- Sentinel Optic enables easy beam angle adjustment from 14º to 70º with a quick hood slide, locking securely in place with a set screw for precise and reliable positioning.
- 5W, 10W integrated HK LED delivering 500–950 lumens per light head. 2700K, 3000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
- Wet Location Listed, IP67 Standard.

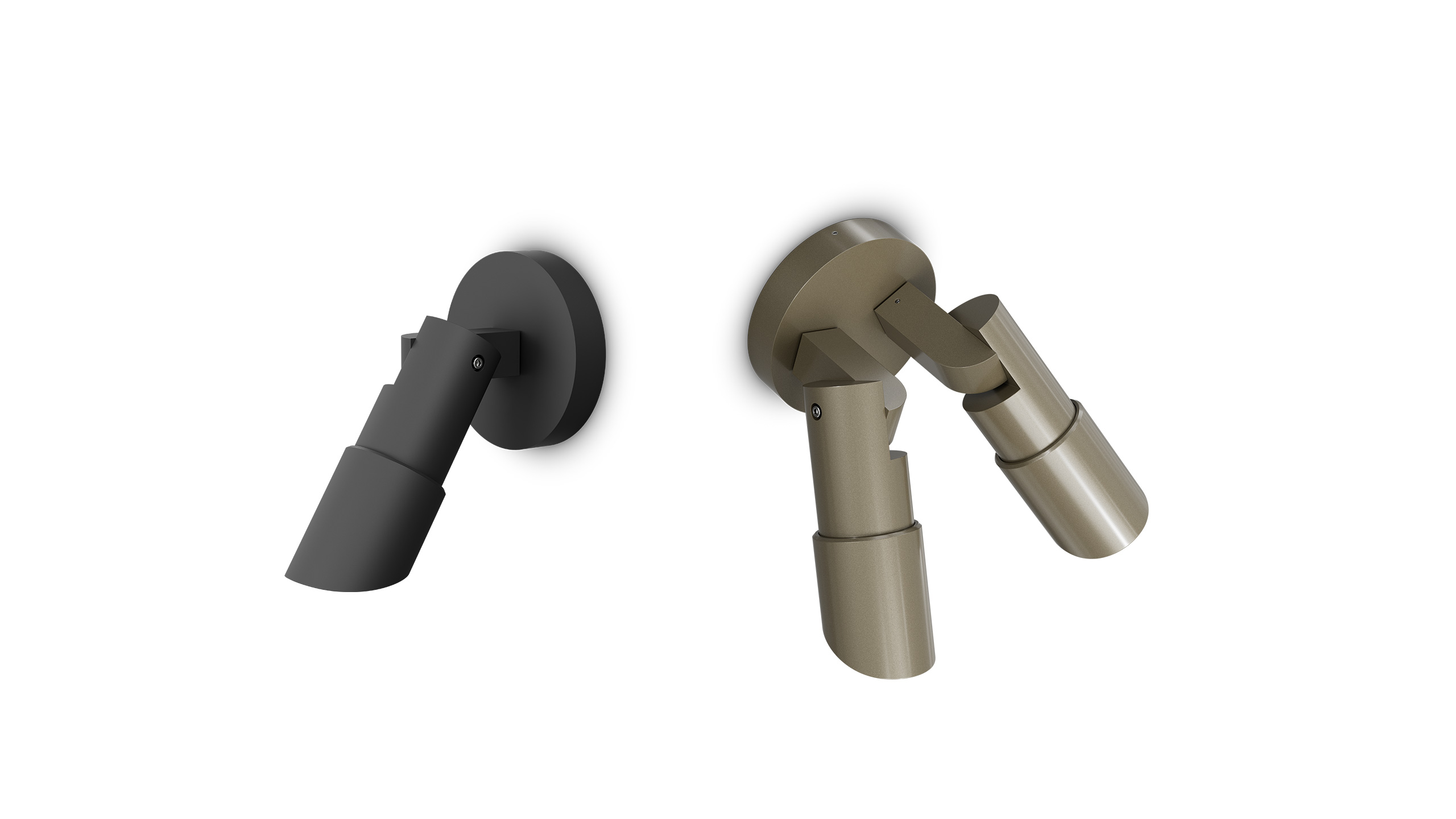

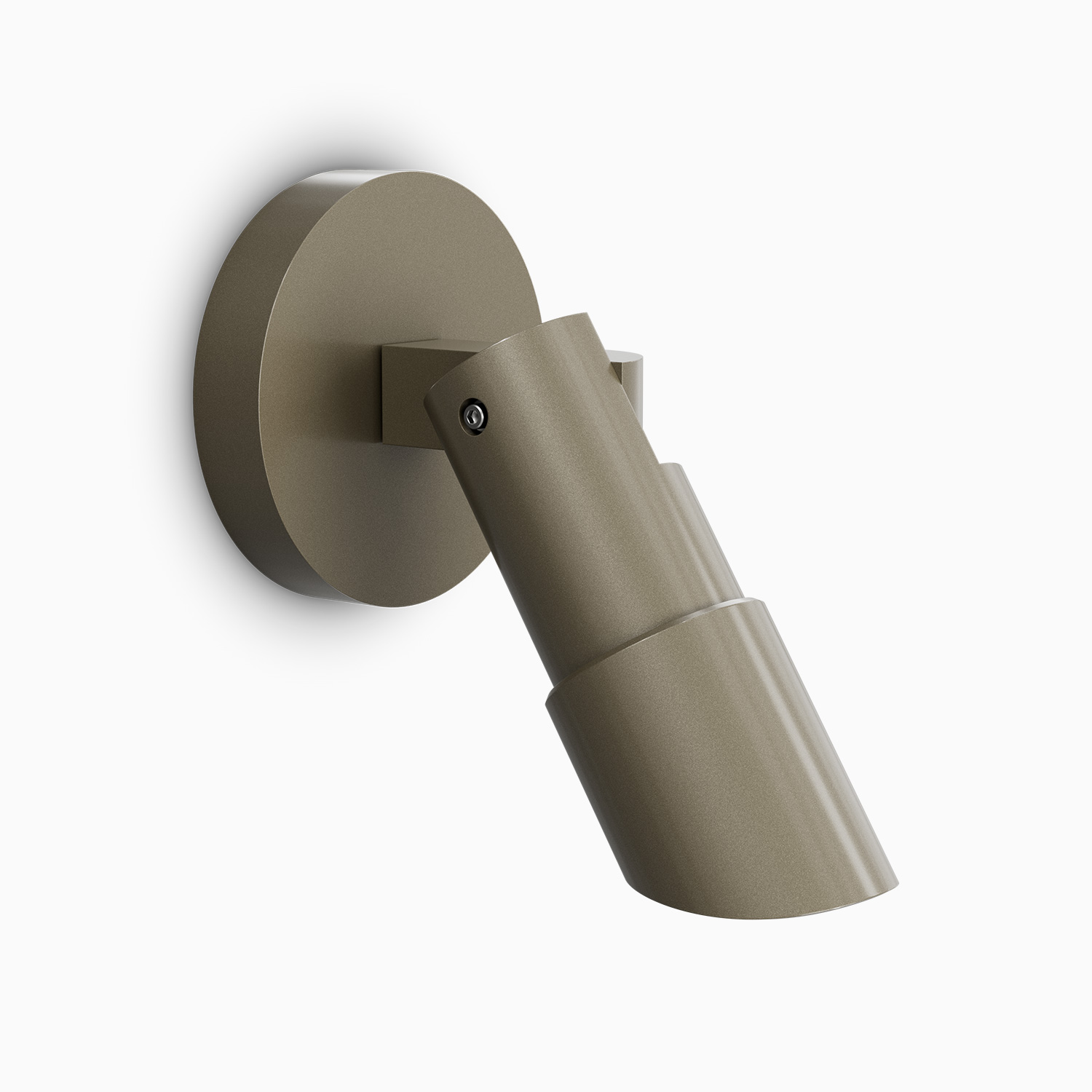

- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Weeping hood style, integrated Angled Glare Shield. With less than 1% field light, the Adjustable Optic provides superior glare control.
- Every fixture tested end of line for water tightness and light quality.
Sentinel ARTOSLA16
ARTOSLA16 brings a new level of control to the Sentinel Series, allowing light to be precisely shaped and placed exactly where it’s needed. High-output performance, fully aimable fixture heads, and marine-grade construction deliver lasting confidence in demanding outdoor environments.
Adjust coverage after installation to place light exactly where it is needed.
Control the Beam.
Define the Space.
The Adjustable Beam Optic allows the ARTOSLA16 to transition from a narrow 14° beam to a broad 70° distribution in the field. Expand coverage, refine light placement, and adapt to changing project requirements without replacing fixtures.
Specifications
ARTOSLA16 Specs
BUILD
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Finish
Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish.
Hood Style
Weeping Hood Style with integrated Angled Glare Shield.
LIGHT OUTPUT
Optics
The Adjustable Beam Optic allows precise beam angle adjustment from a very narrow 14º spotlight to an extra wide 70º flood, locking securely with the set screw. It maintains less than 1% field light levels.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
POWER & CONTROLS
Voltage
12V AC/DC. Requires remote step down transformer.
Wattage
5–10W HK LED delivers 500–950 lumens per light head.
Dimming
MLV or ELV Phase Control dimming.
MOUNTING

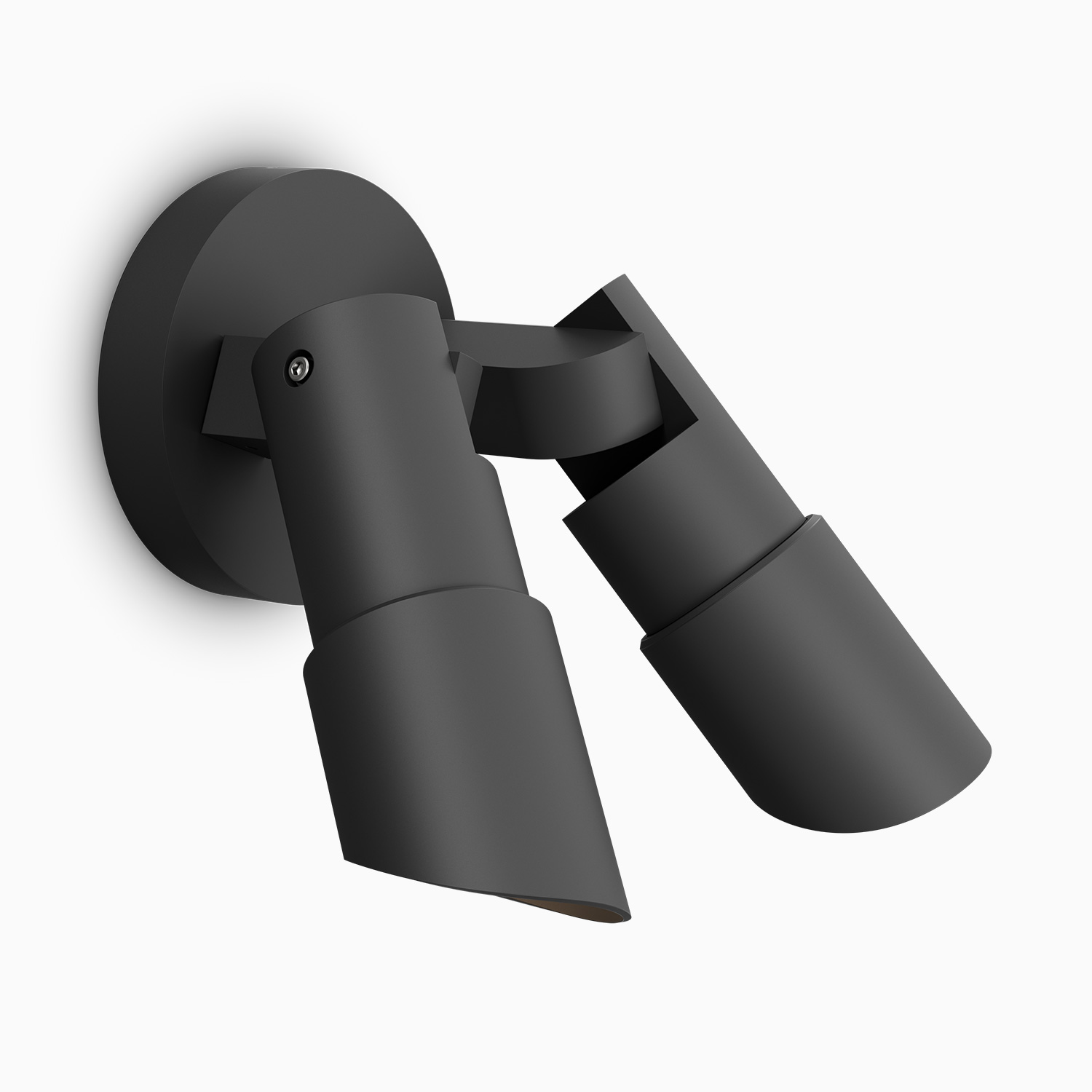

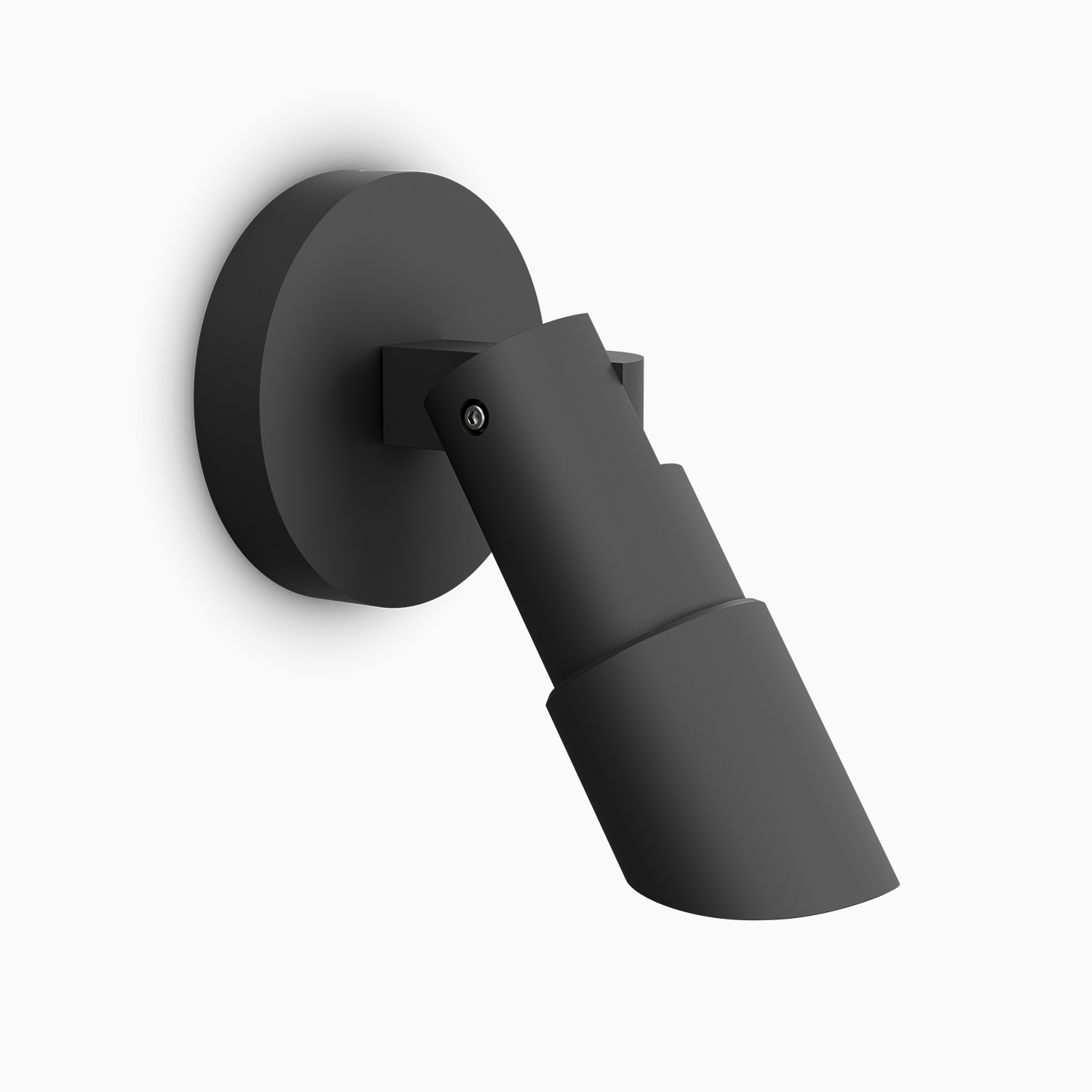

Single Security Light (Type-S1) ships mounted to an ACBA1 Surface Mount Box. Double Security Light (Type-S2) ships pre-mounted to an ACBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible a standard 3O and 4O junction boxes. Each light includes a ½”-14 NPS male fitting that is compatible with the included Surface Mount Box or a wide range of HK Lighting mounting accessories.
LISTINGS
CSA Listed for Wet Location (UL1838), IP67 Standard RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.

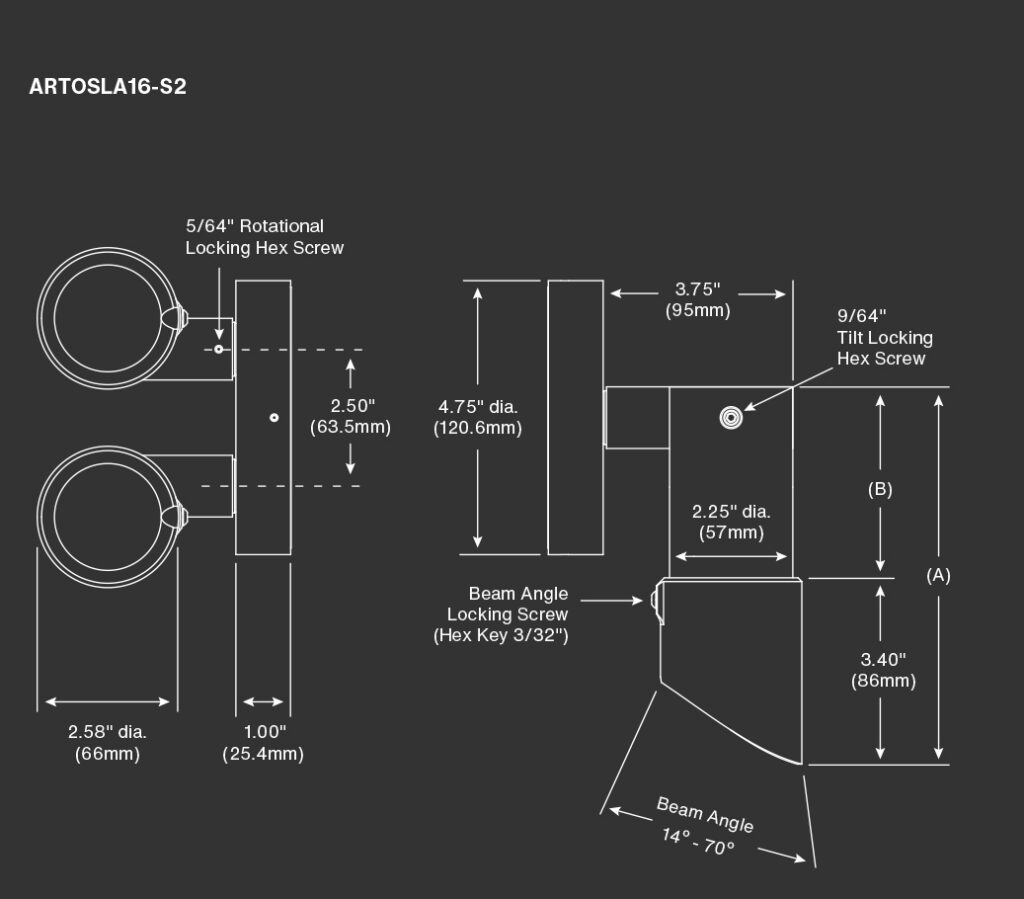

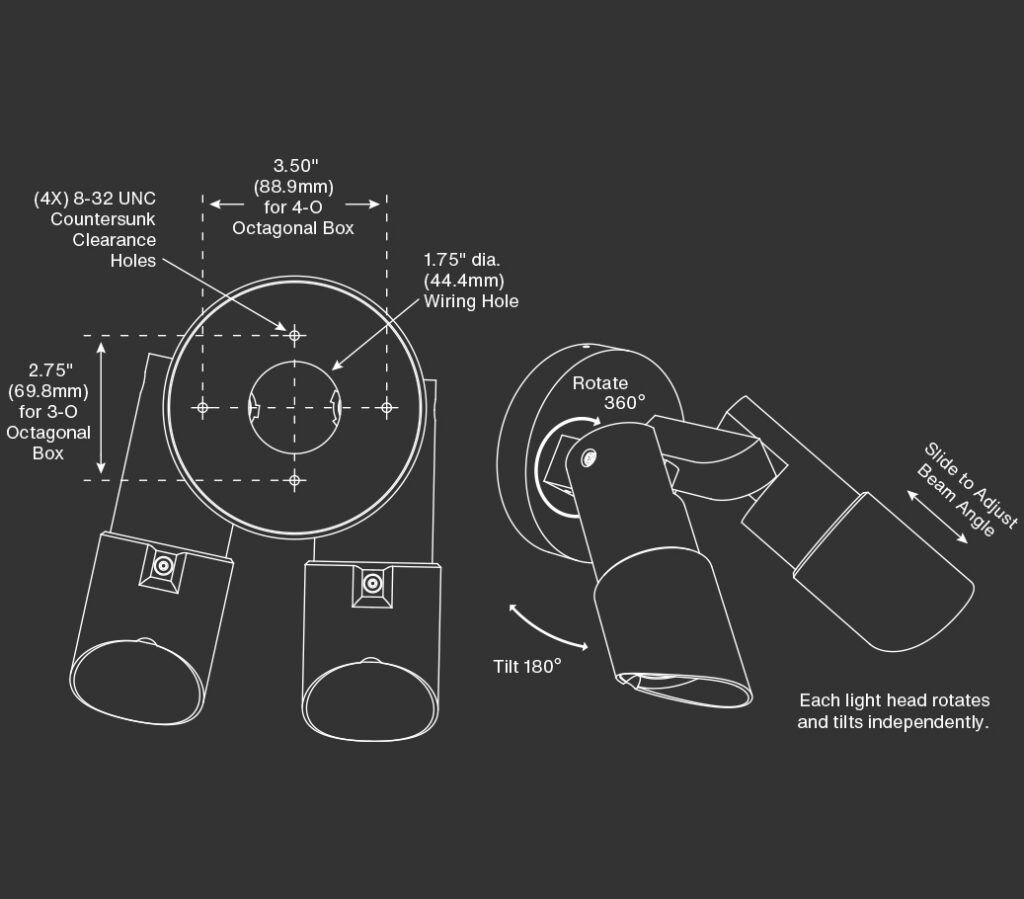

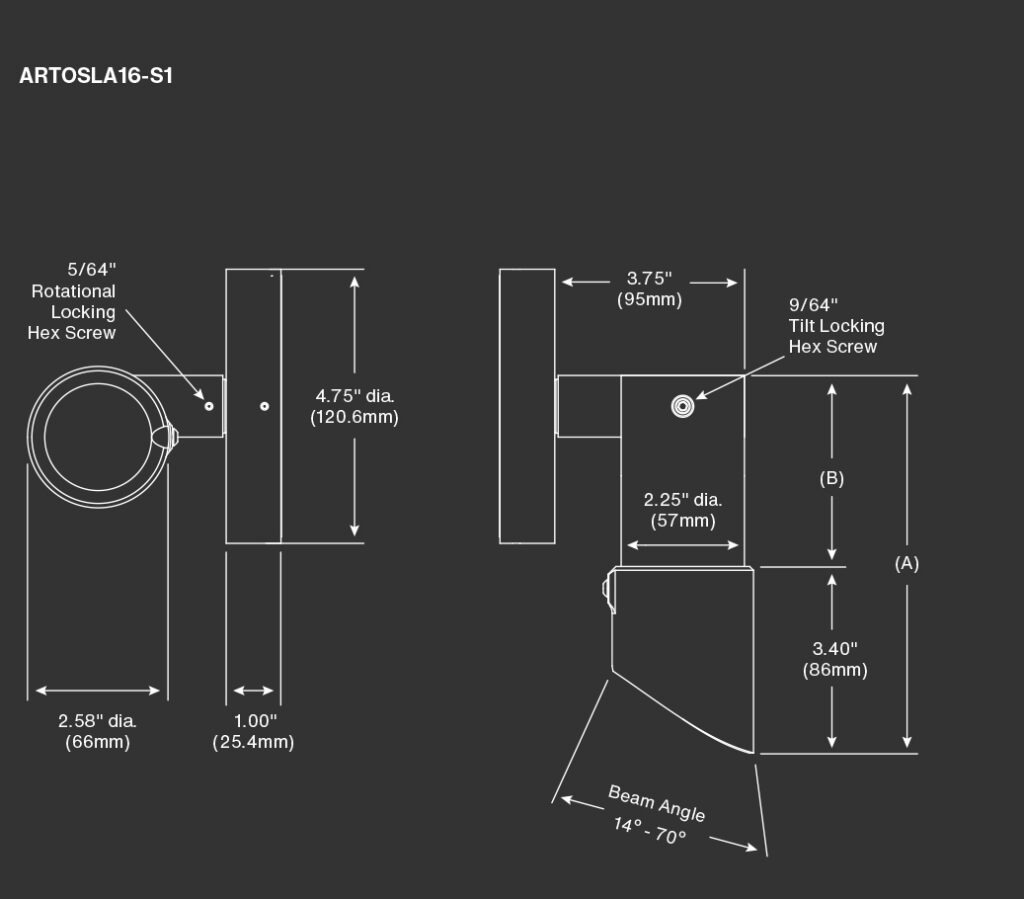

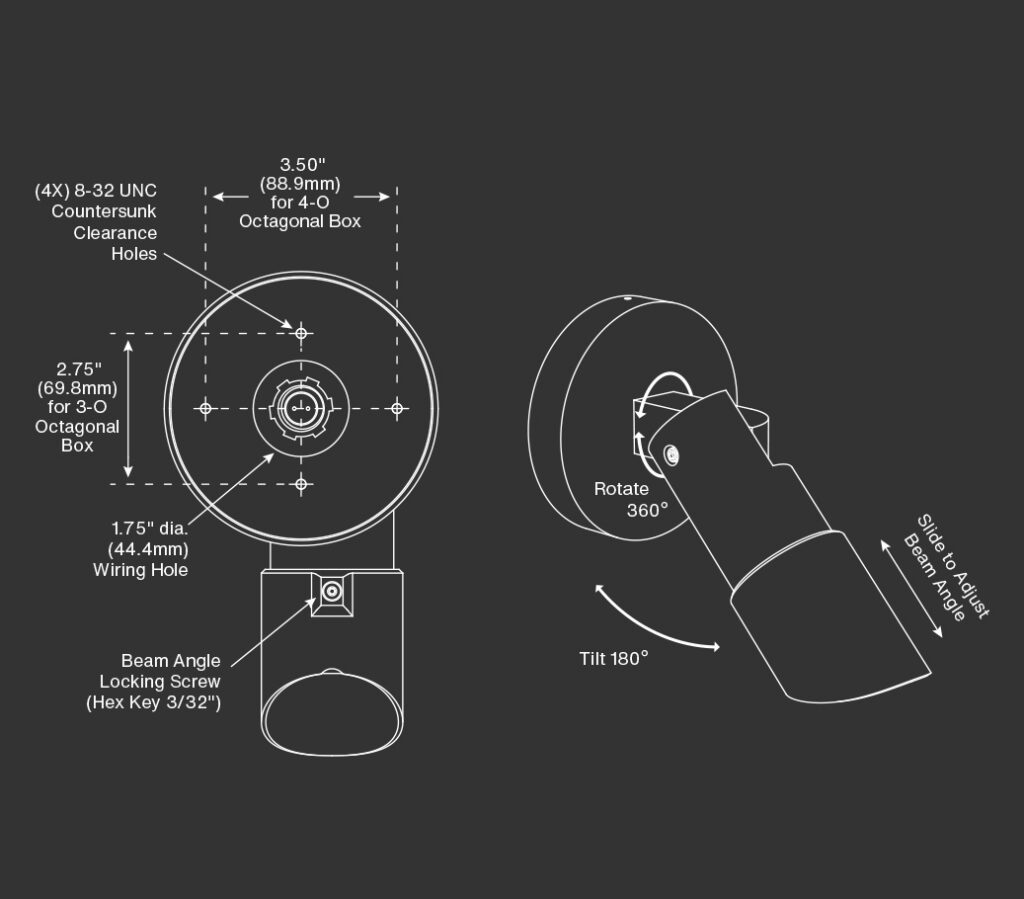

ARTOSLA16 Dimensions
From focused precision to expansive coverage, ARTOSLA16 puts powerful illumination exactly where you want it.
