Sentinel ARTOS16 GU10
SECURITY | 2.25″ dia.
7.5W (600lm) | 120V | SORAA, LED Lamp, Halogen

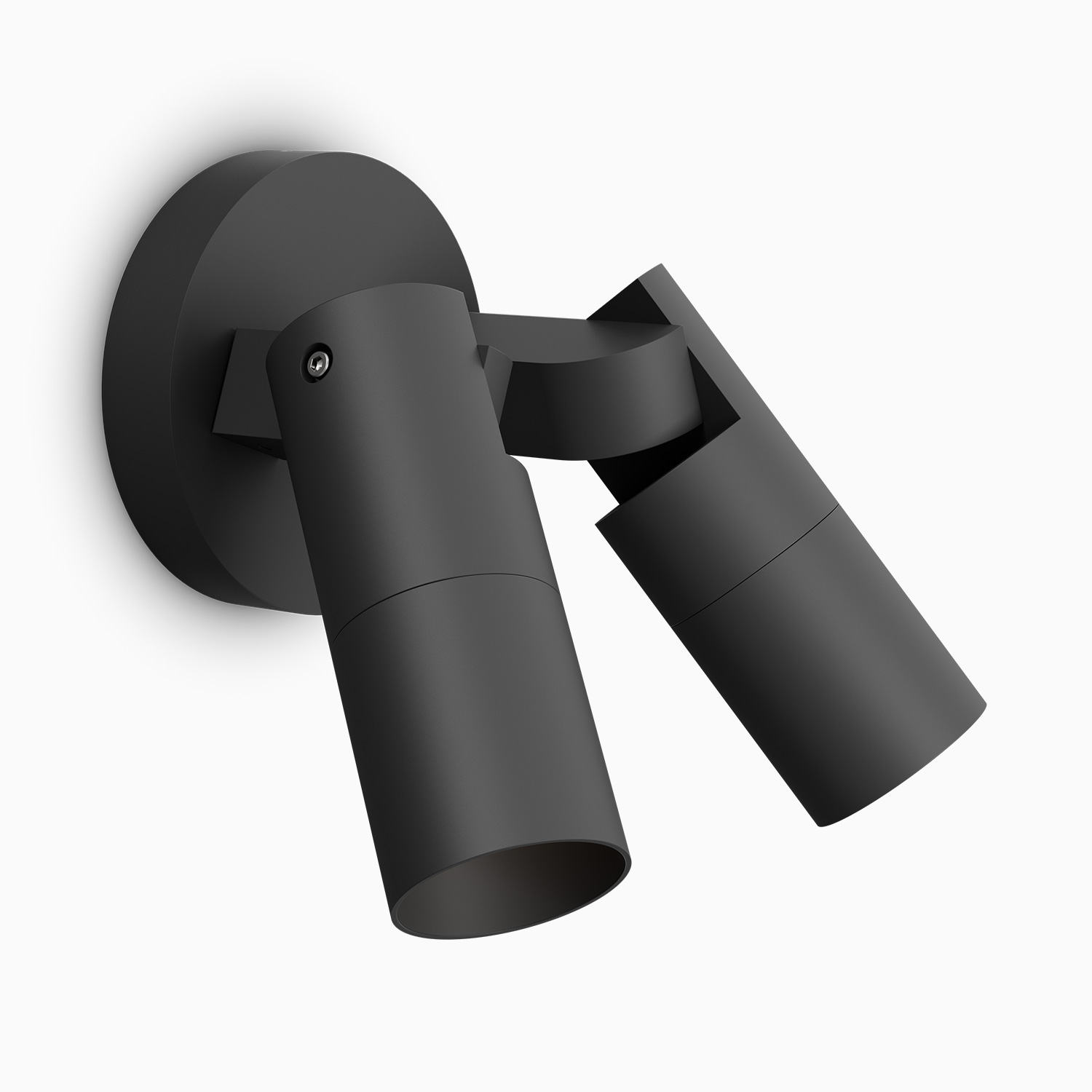

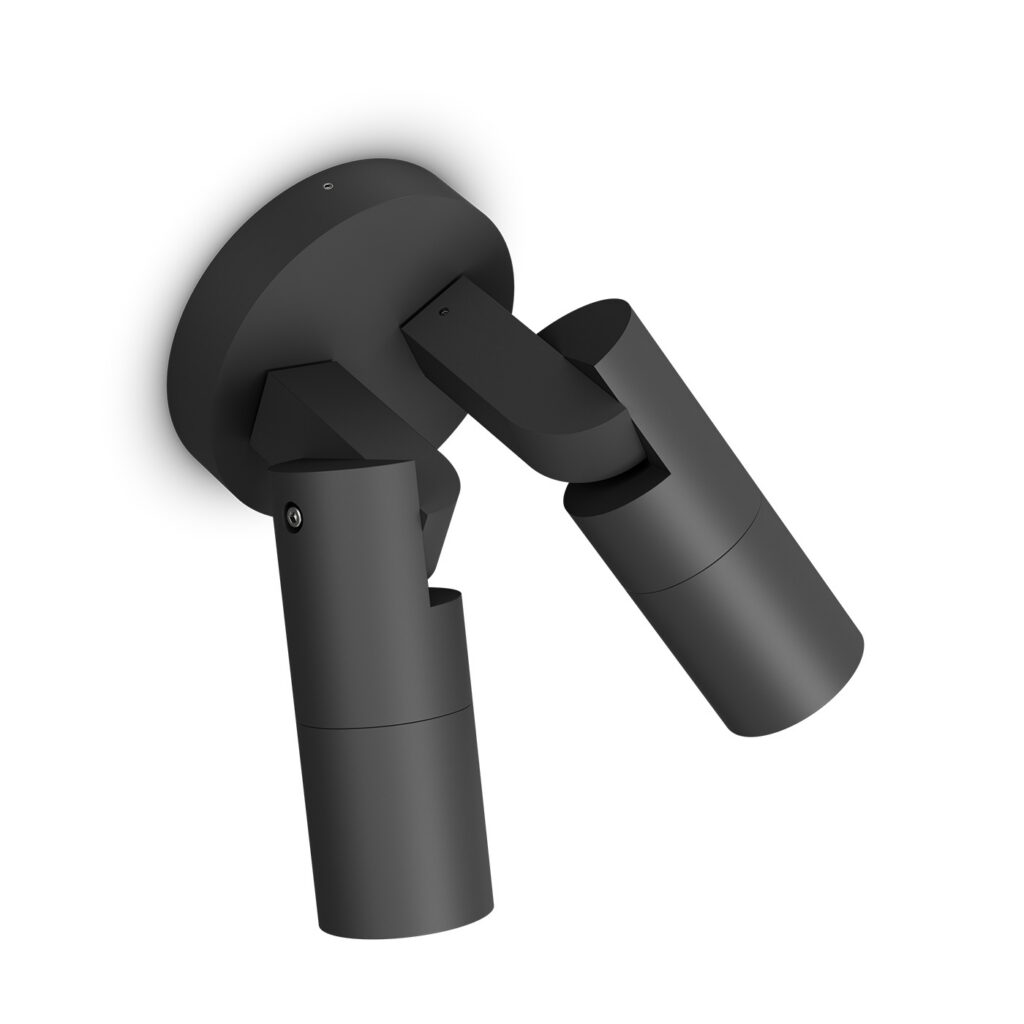

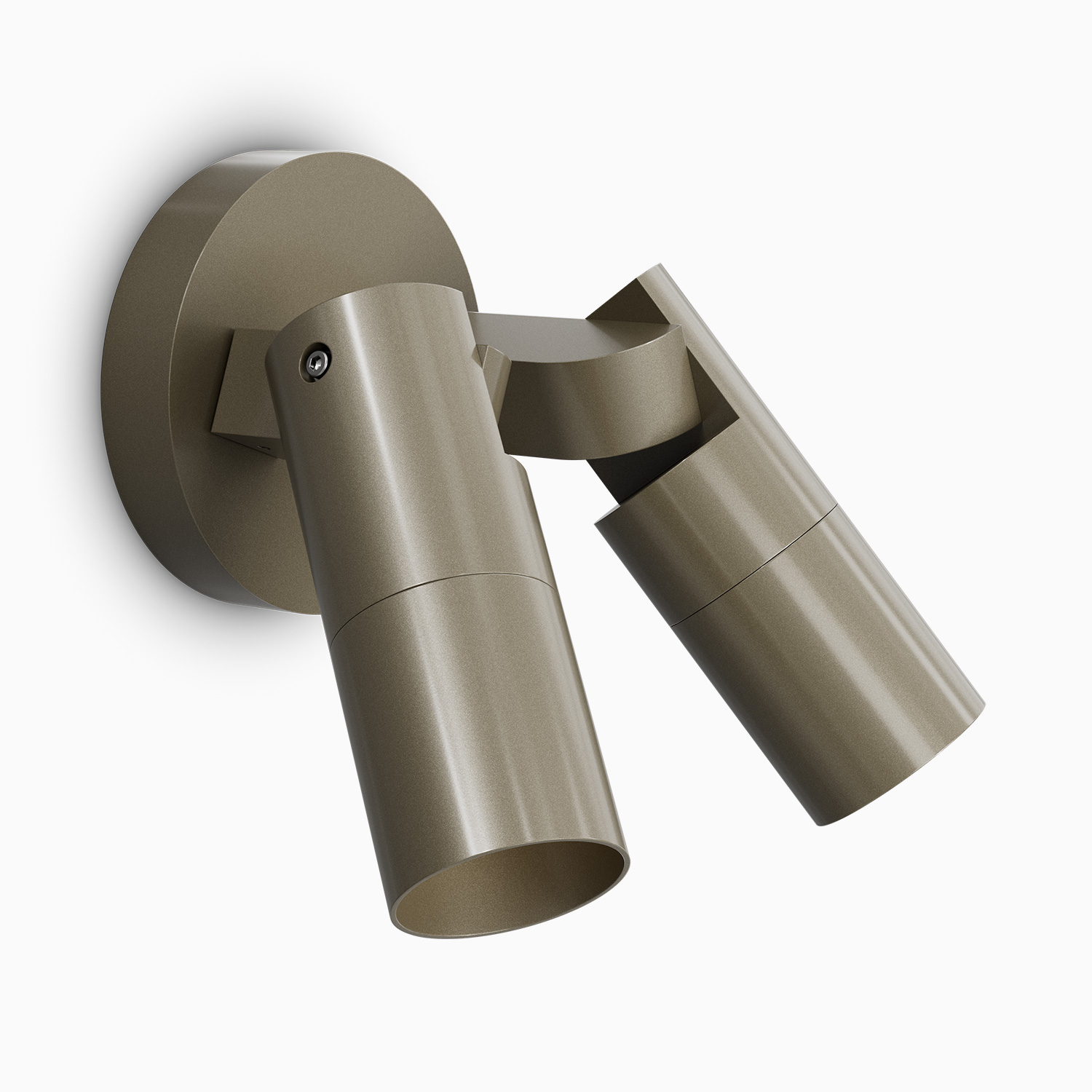

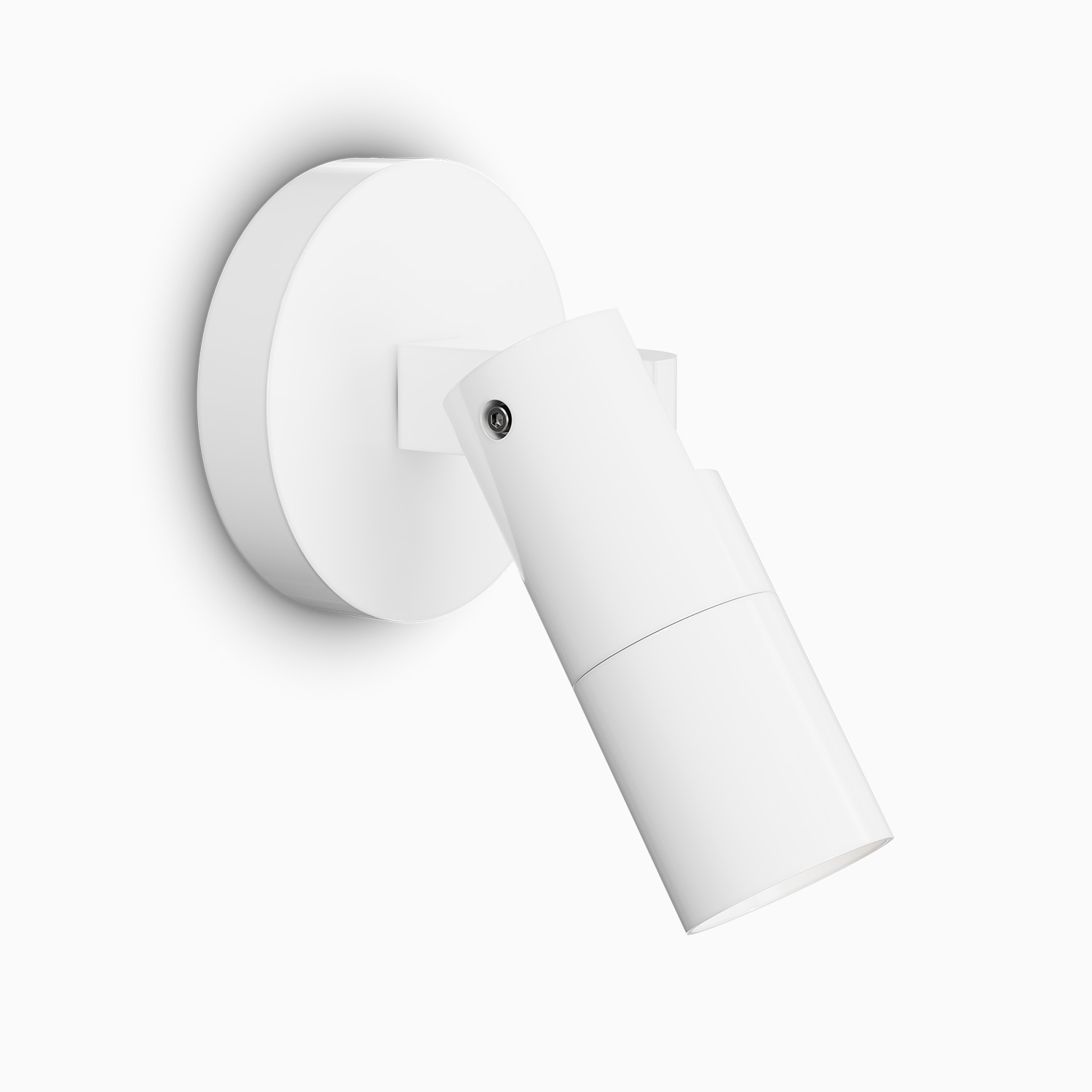

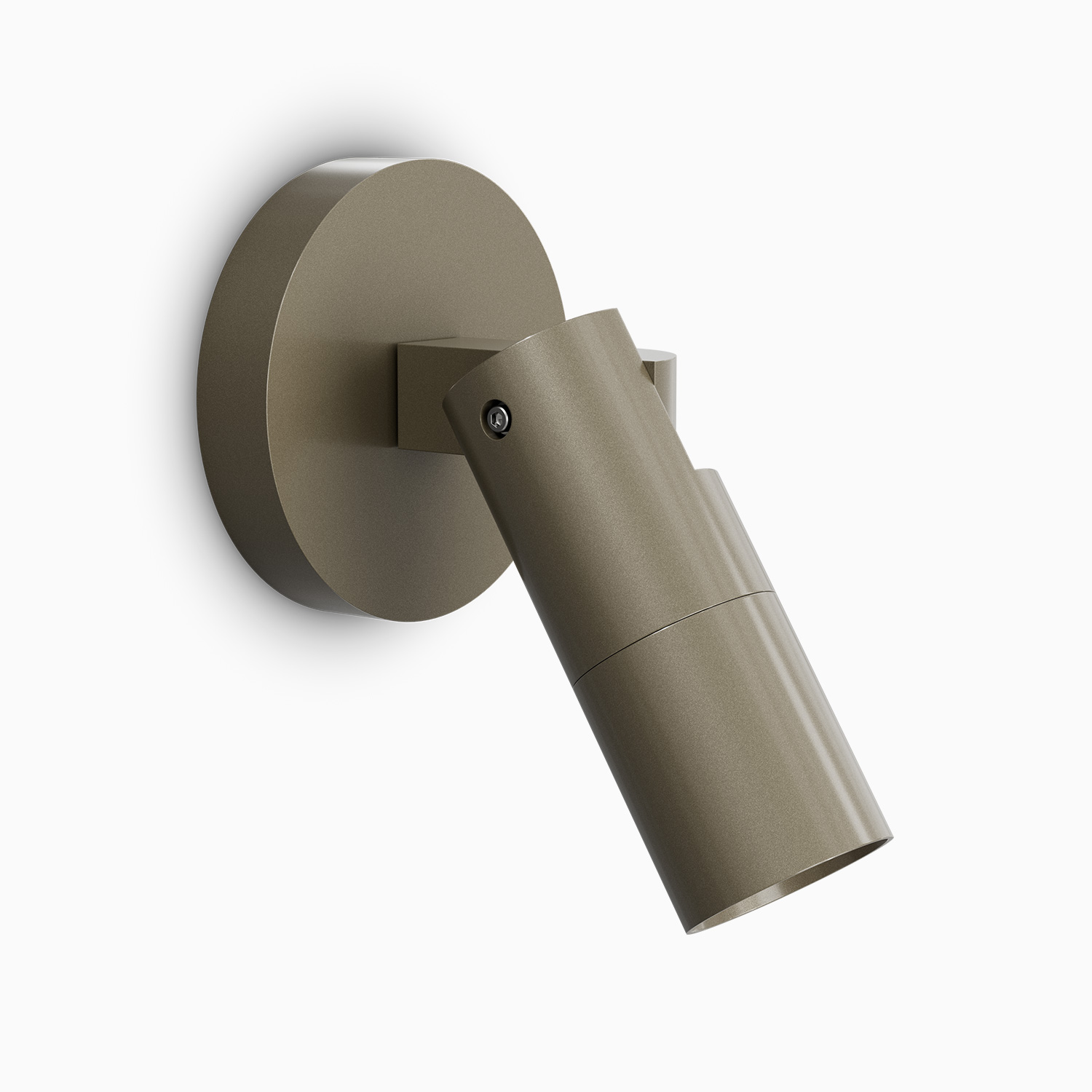

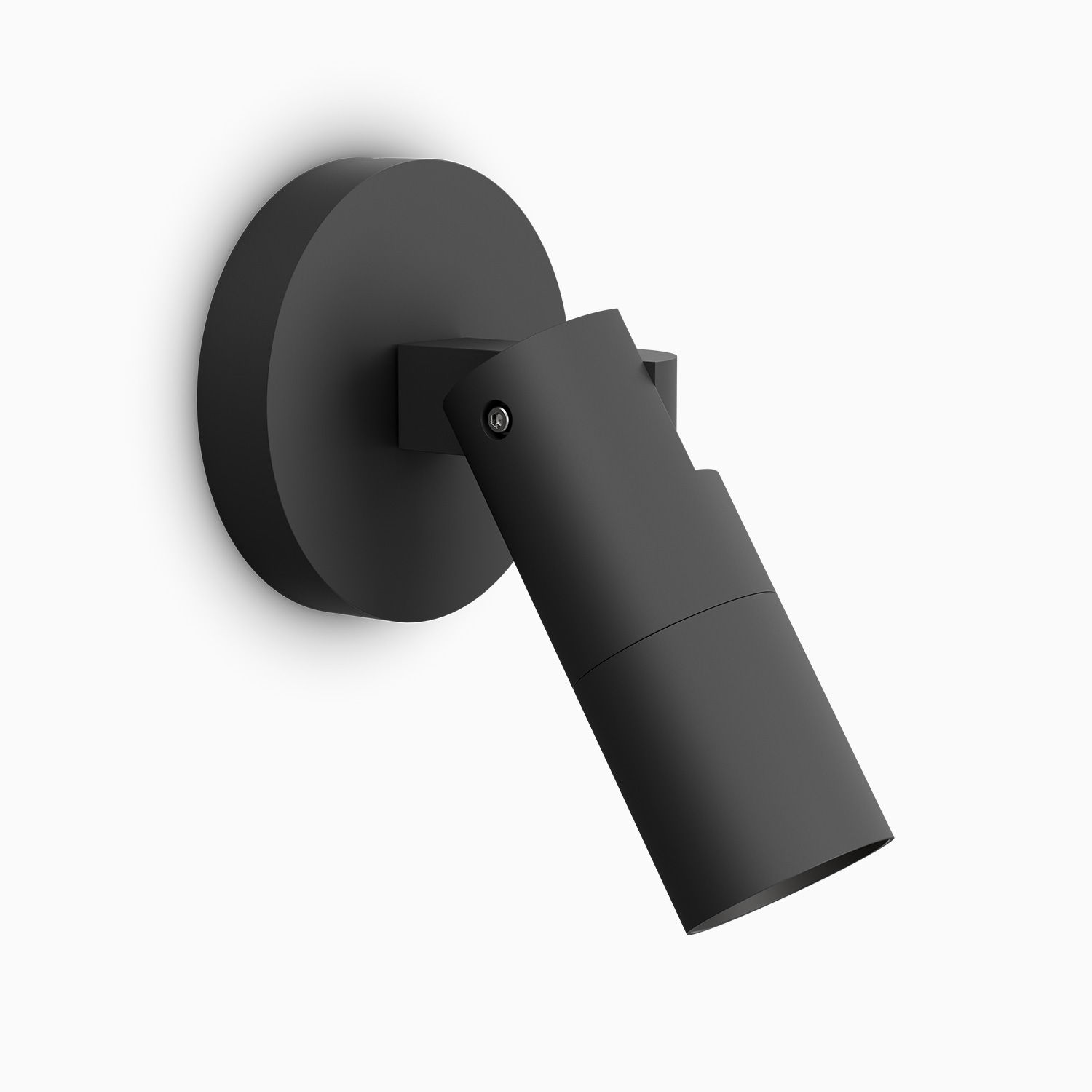

Single or double-head modern side pivot style line-voltage (GU10) fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting.
FEATURES
- SORAA. (GU10) lamp-based Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the ACBA1 or ACBA2 4.75″ Surface Mount Box.
Flexible lamp configurations include the SORAA Brilliant™ HL LED installed in our patented Thermobuster™ heat sink or your preferred GU10 LED or halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
180º vertical and 360º horizontal adjustment via locking swivel stem design.
Field-changeable optical lensing available.
Adjustable Angled Glare Shield available.
- Every fixture tested end of line for water tightness and light quality.
Sentinel ARTOS16 GU10

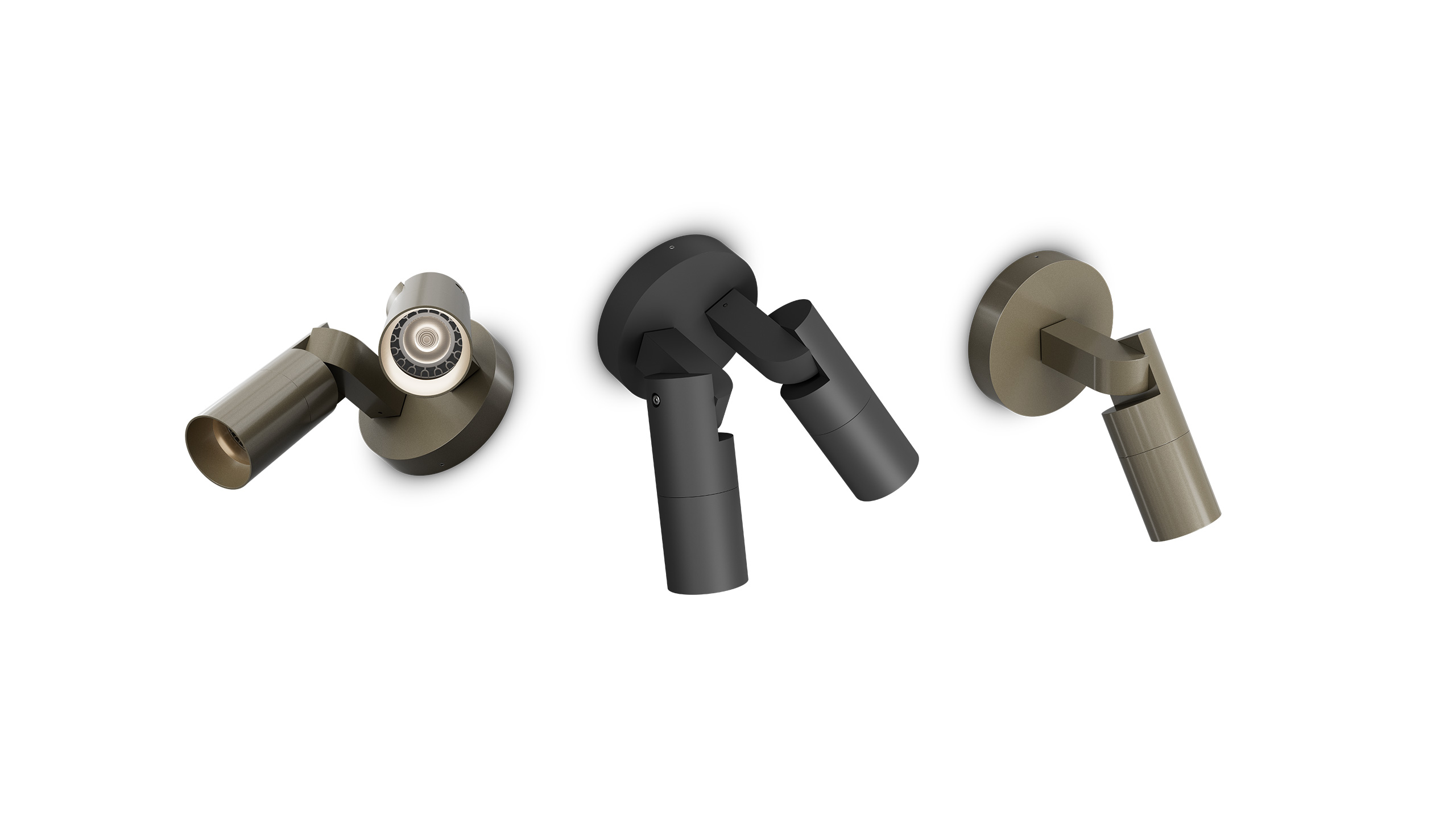

The 120V ARTOS16 GU10 combines a replaceable GU10 lamp platform with multiple beam options, fully aimable heads, discreet glare control, and marine-grade construction. It delivers precise architectural security lighting without a separate low-voltage transformer—or the harsh, blanket brightness of conventional fixtures.
Marine-Grade Construction.
Proven Performance.
Built on HK’s proven Accent Light platforms, corrosion-resistant finishes and architectural-grade construction deliver long-term performance in demanding outdoor environments.
Accessories
Visibility by design, never by excess.

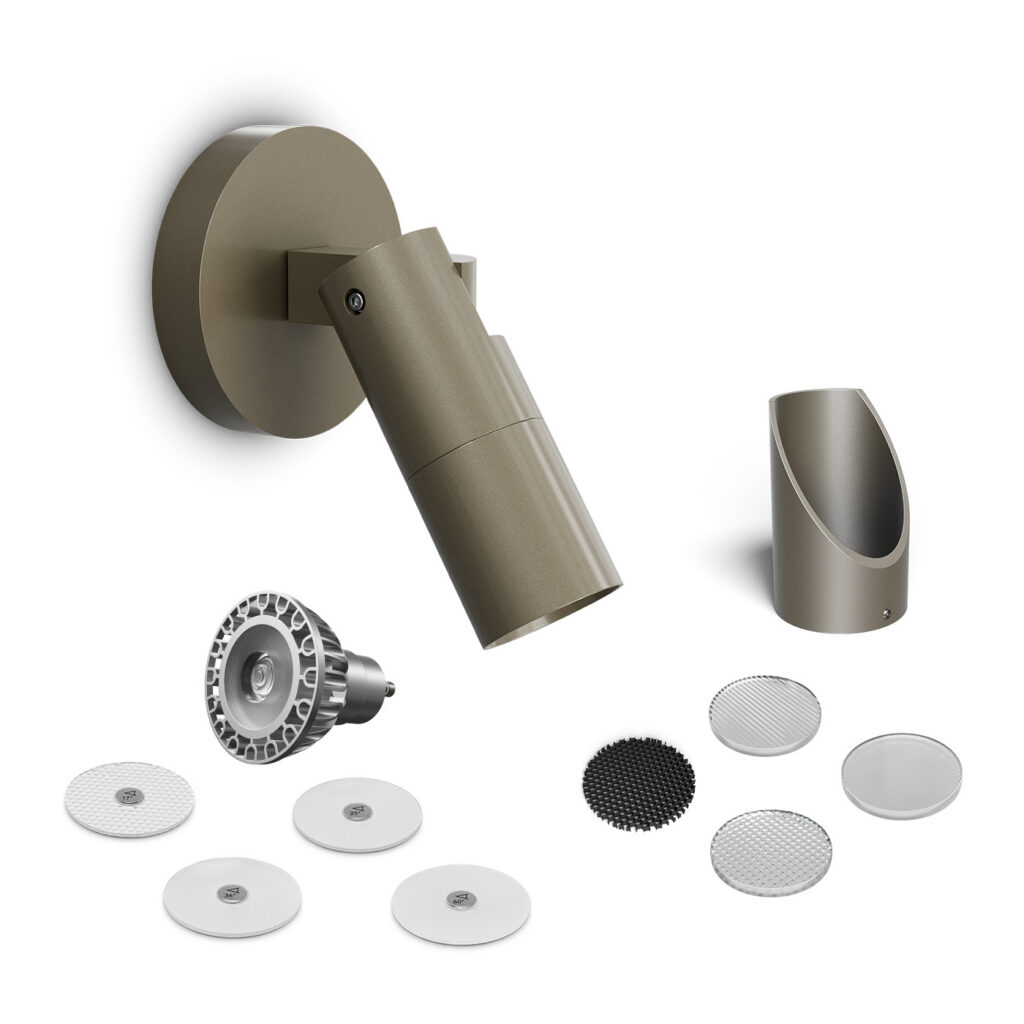

Fully aimable fixture heads, multiple optical distributions, and field-changeable accessories provide precise control over coverage and light placement.
COMPATIBLE ACCESSORIES
Specifications
ARTOS16 GU10 Specs
BUILD
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Finish
Aluminum fixtures are anodized and then powder coated to create a robust, marine-grade, natatorium-grade finish.
Hood and Glare Shield
Aluminum fixtures are anodized and then powder coated to create a robust, marine-grade, natatorium-grade finish.
Lamp Base / Socket
Porcelain GU10 twist-lock lamp base.
LIGHT OUTPUT
Optics
Provided SORAA lamp delivers a 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 optical accessories secured in place with metal snap ring.
Light Engine
GU10 Halogen lamp or GU10 LED lamp. Compatible with SORAA Brilliant HL and other 120V GU10 lamp selections.
POWER & CONTROLS
Voltage
120V AC.
Wattage
Max 9W per light head for SORAA GU10 lamp with Thermobuster. Max 50W per light head for halogen lamp.
Dimming
MLV, ELV Phase Control Dimming at 120V. Please refer to website for SORAA GU10 dimmer compatibility.
MOUNTING

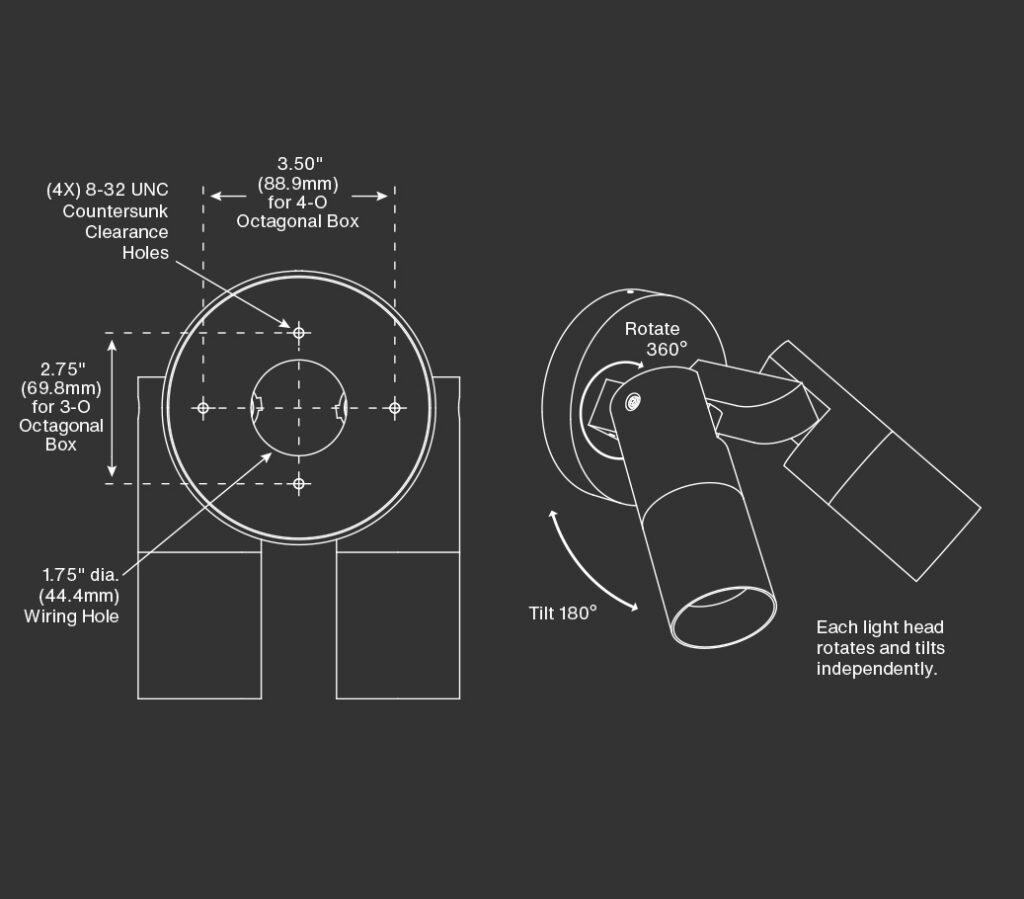

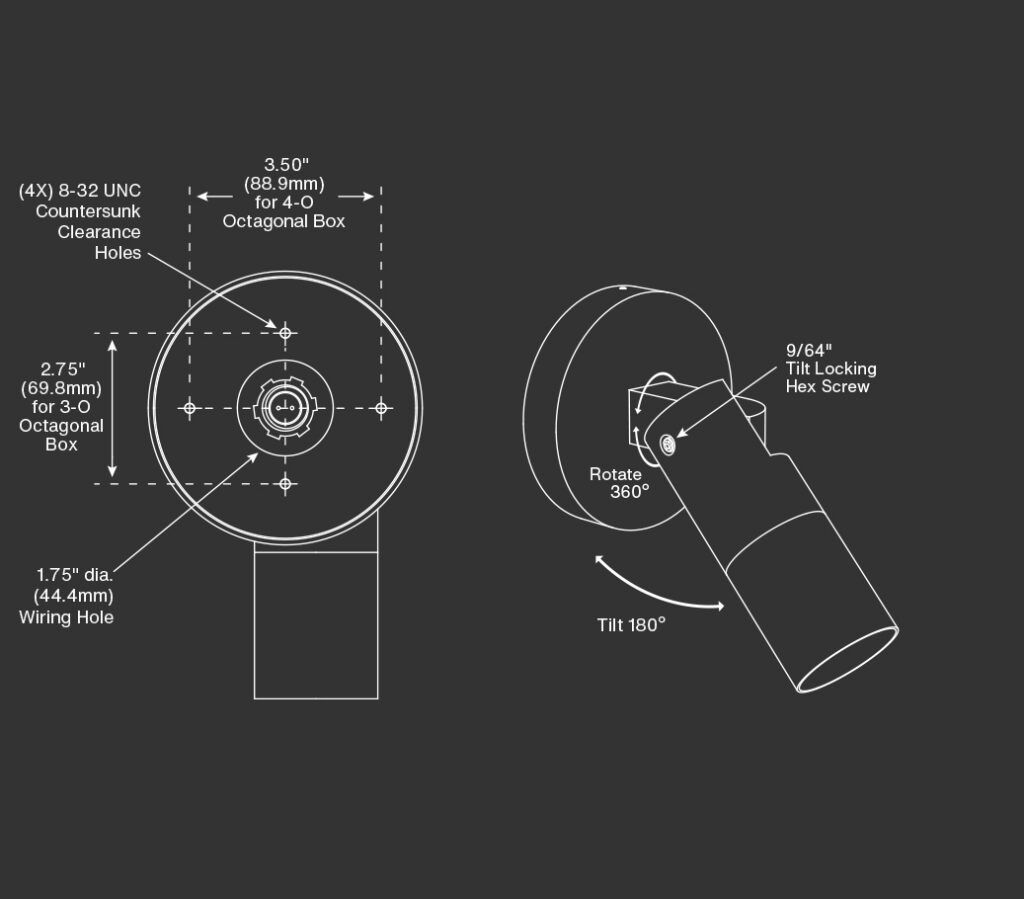

Single Area Light (Type-S1) ships mounted to a ACBA1 Surface Mount Box. Double Area Light (Type-S2) ships pre-mounted to a ACBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½”-14 NPS male fitting that is compatible with the included Surface Mount Box or is compatible with a wide range of HK Lighting mounting accessories.
LISTINGS
CSA Listed for Wet Location (UL1838), IP67 Standard RoHS Compliant.

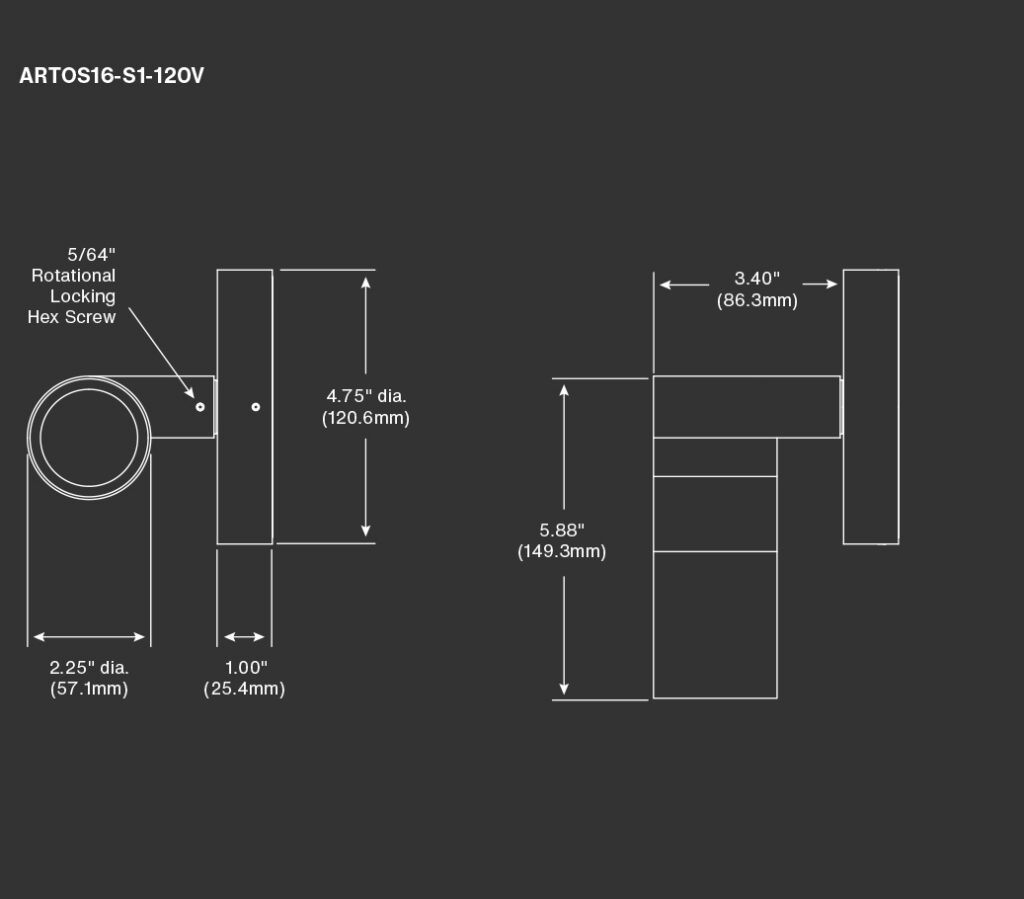

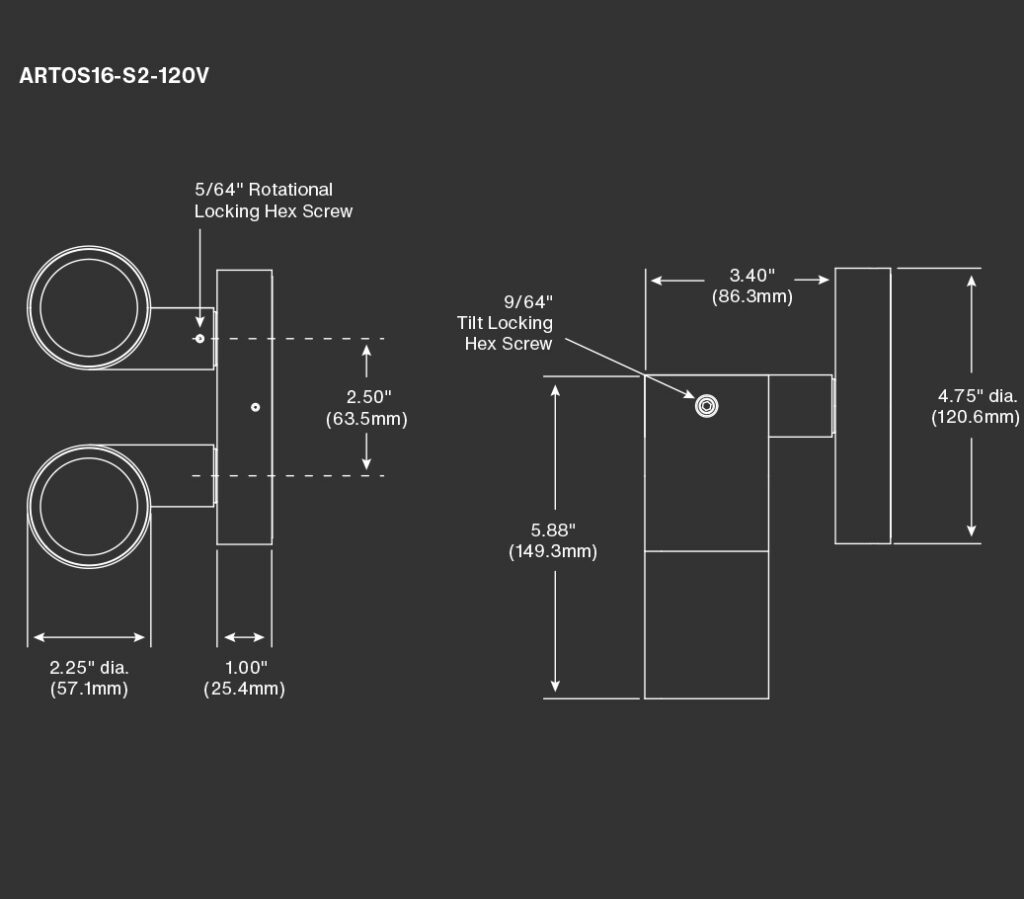

ARTOS16 GU10 Dimensions
ARTOS16 GU10 brings line-voltage simplicity, serviceable lamp flexibility, and lasting outdoor performance together—placing light exactly where it’s needed, without excess.
