ARTOSL11 12V LED Security Light

Sentinel ARTOSL11

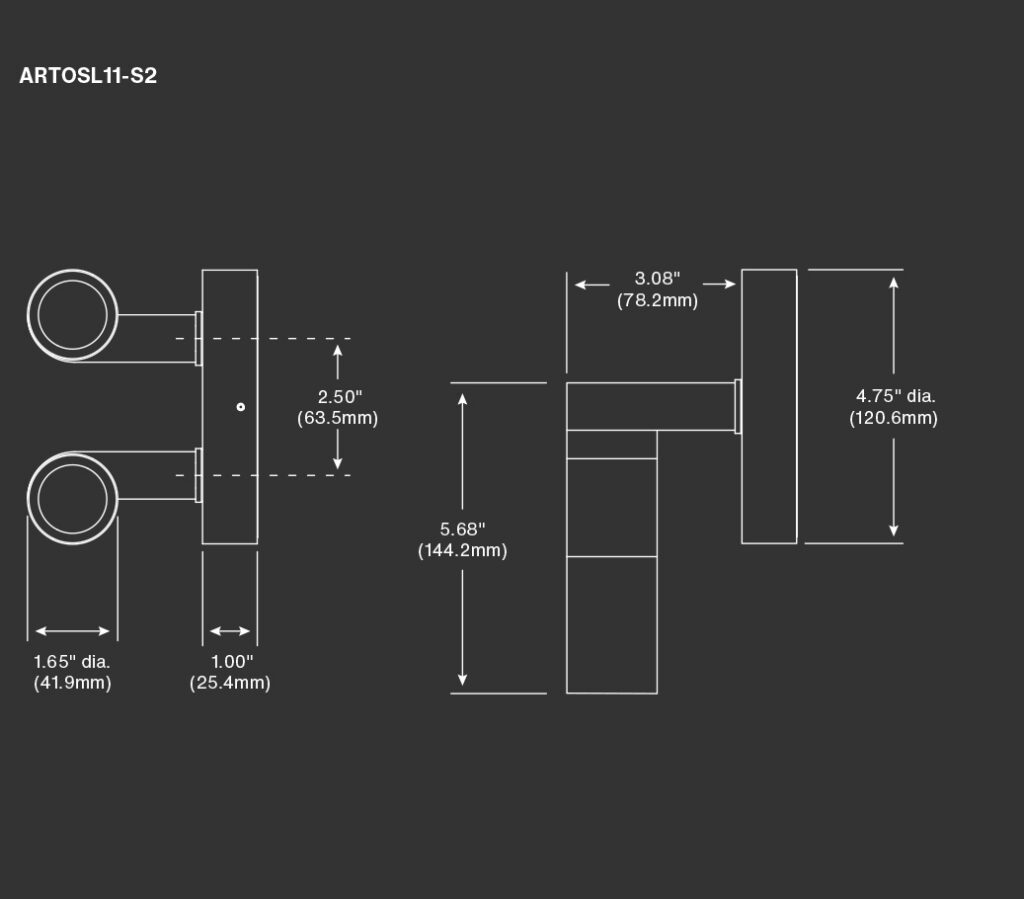

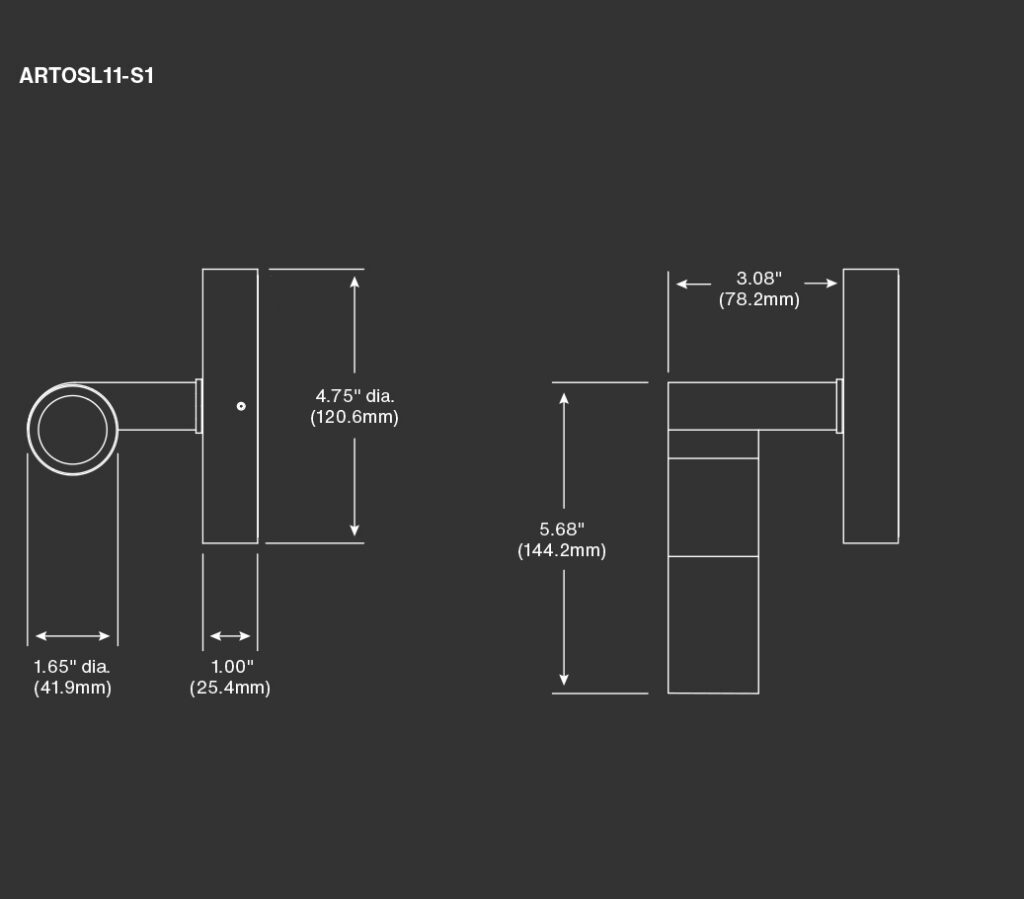

SECURITY | 1.65″ dia.
5–7W (450–675lm) | 12V | HK LED, Amber

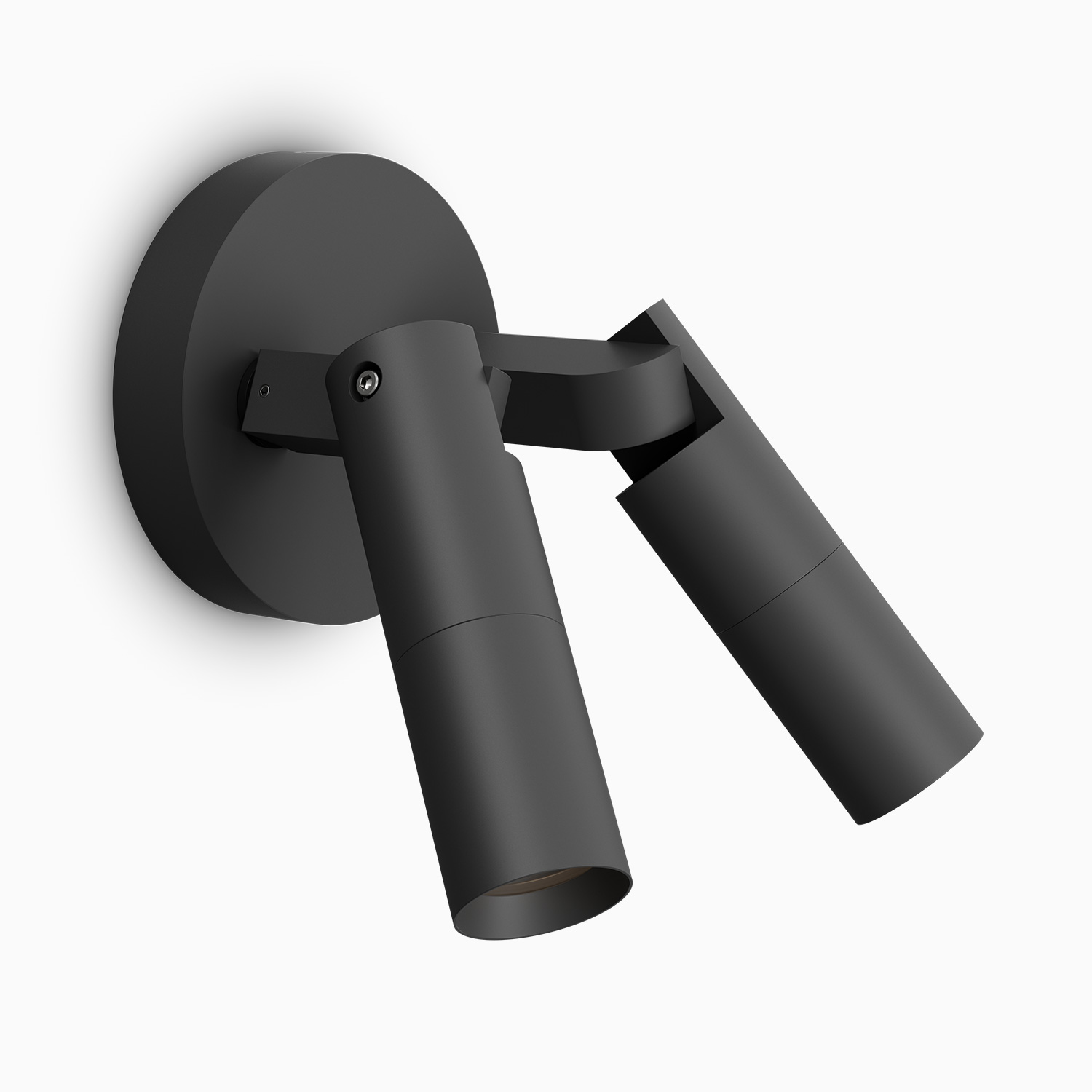

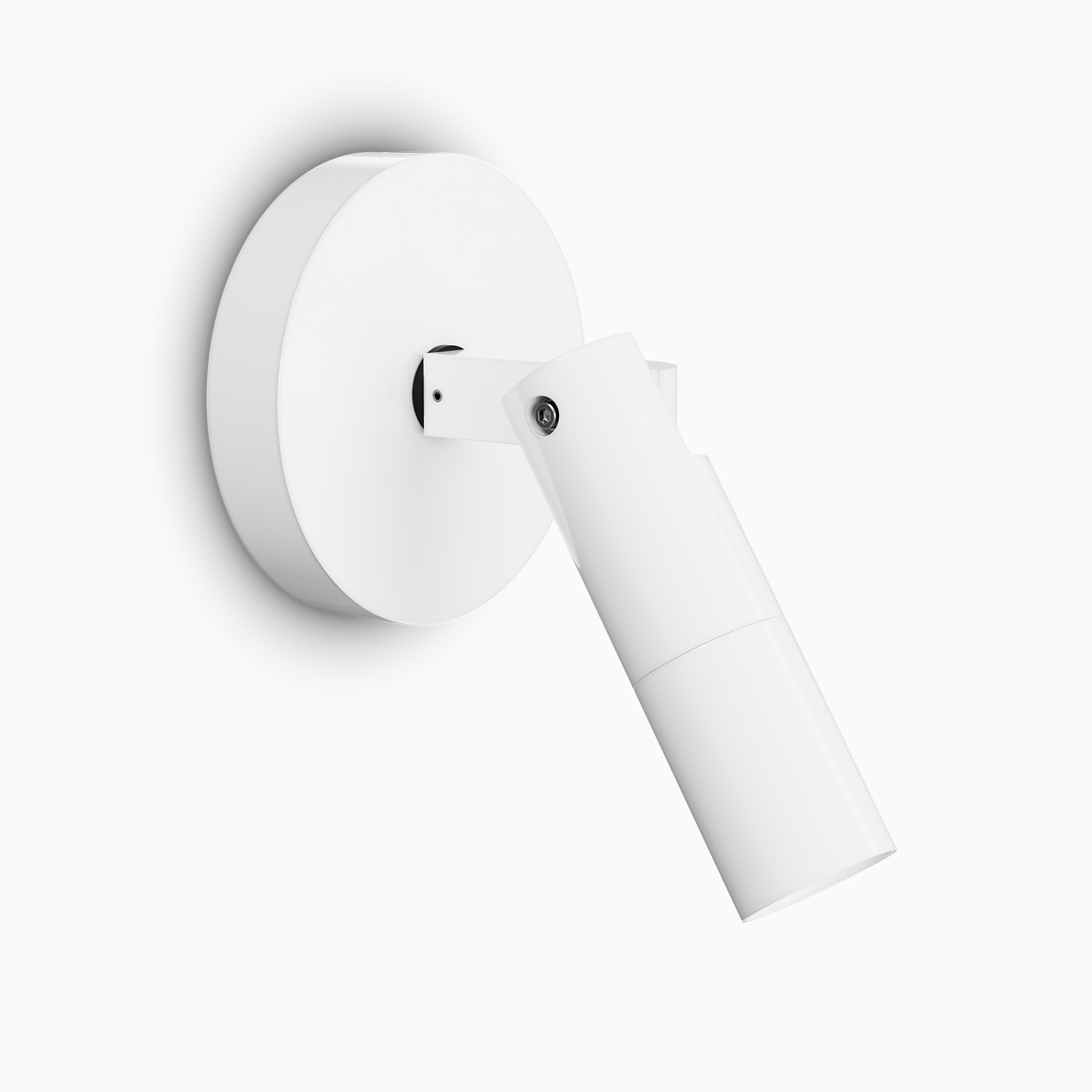

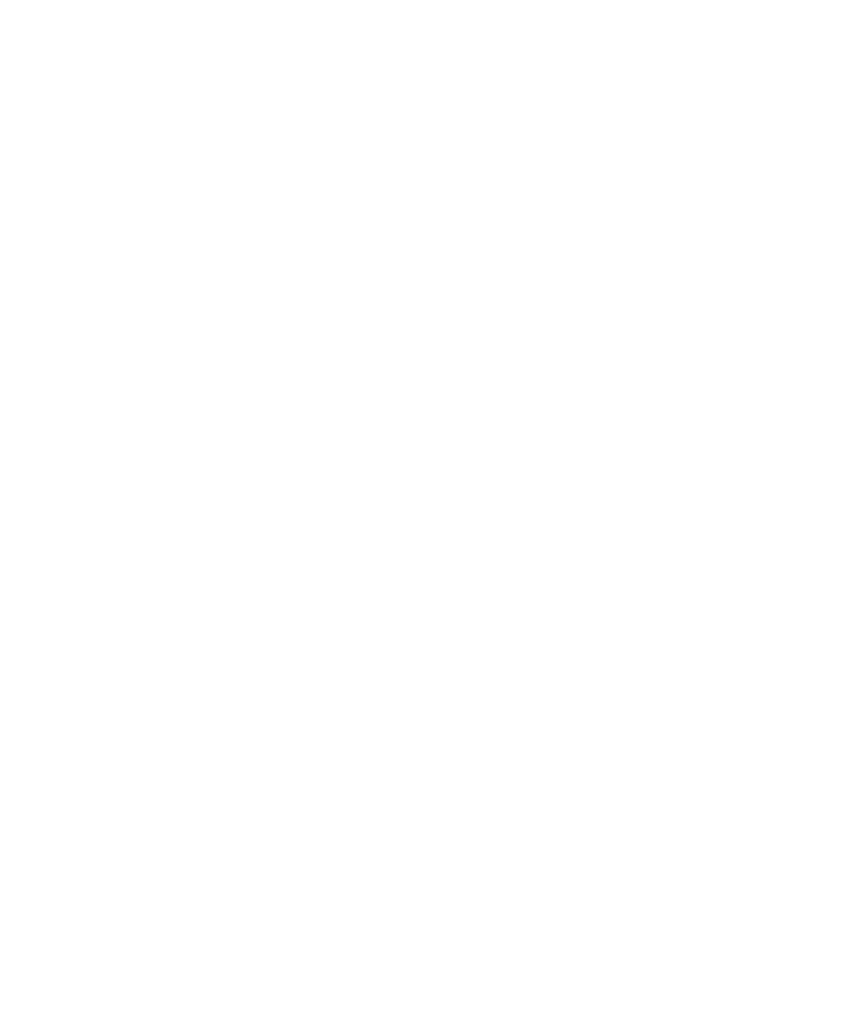

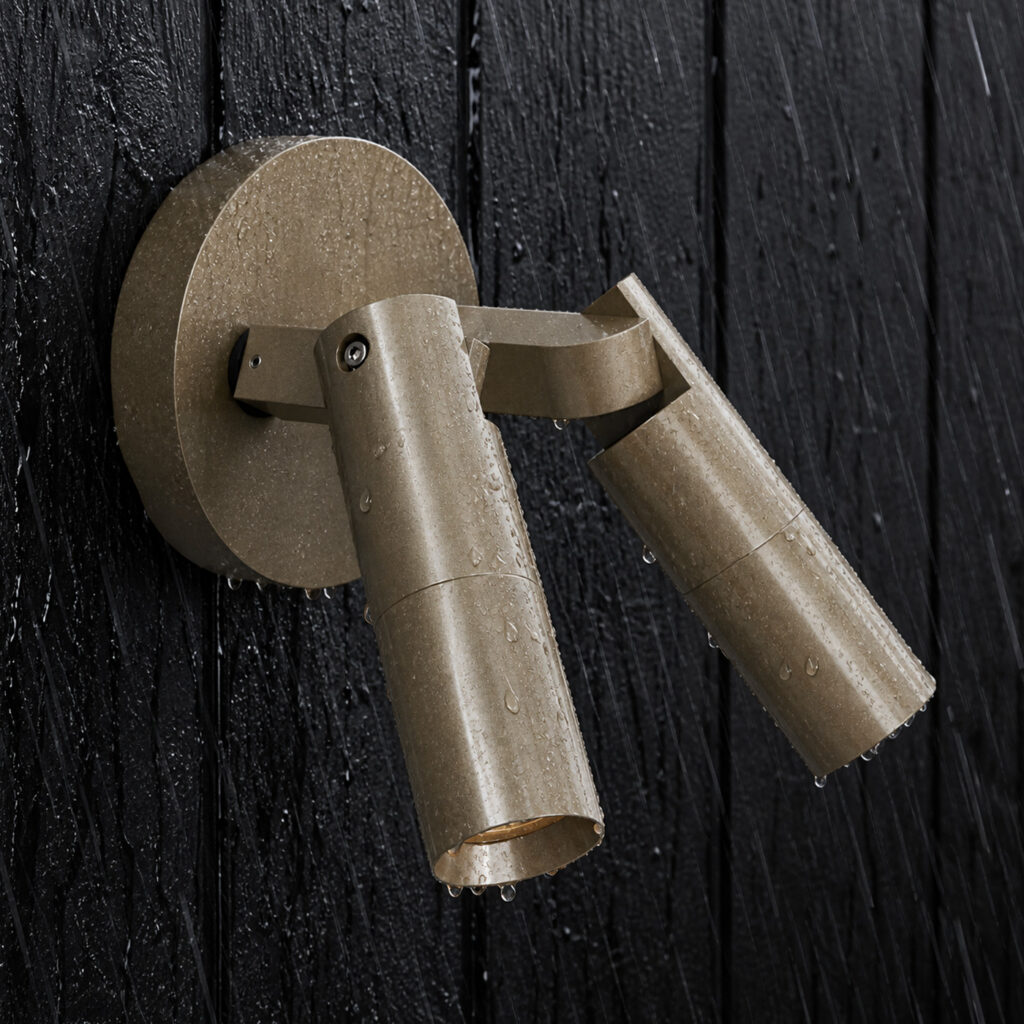

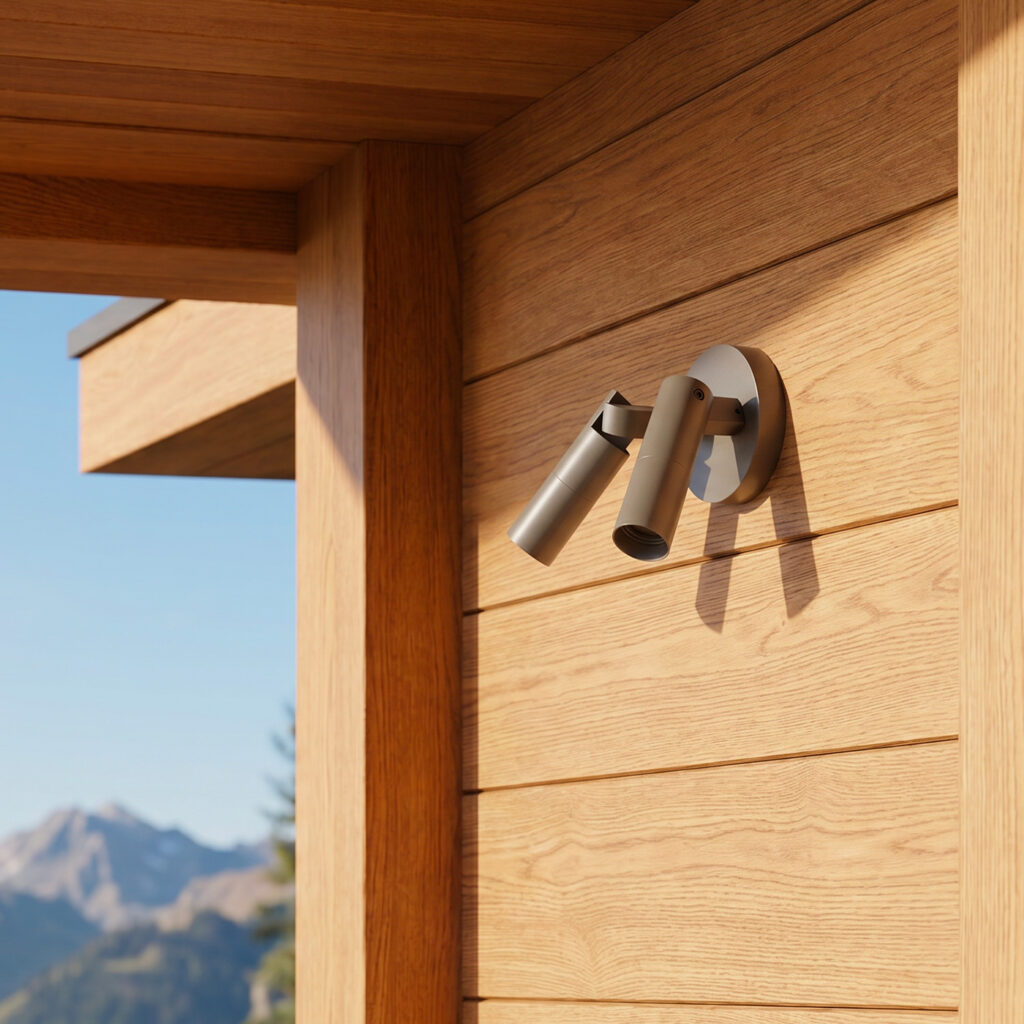

Single or double-head modern side pivot style low-voltage, 12V LED fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting.

FEATURES

Built on the ARTOAL11 Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the new ACBA1 or ACBA2 4.75″ Surface Mount Box.
5W, 7W integrated HK LED delivering 450–675 lumens per light head. 2700K and 3000K CCT options. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
Wet Location Listed, IP67 Standard.

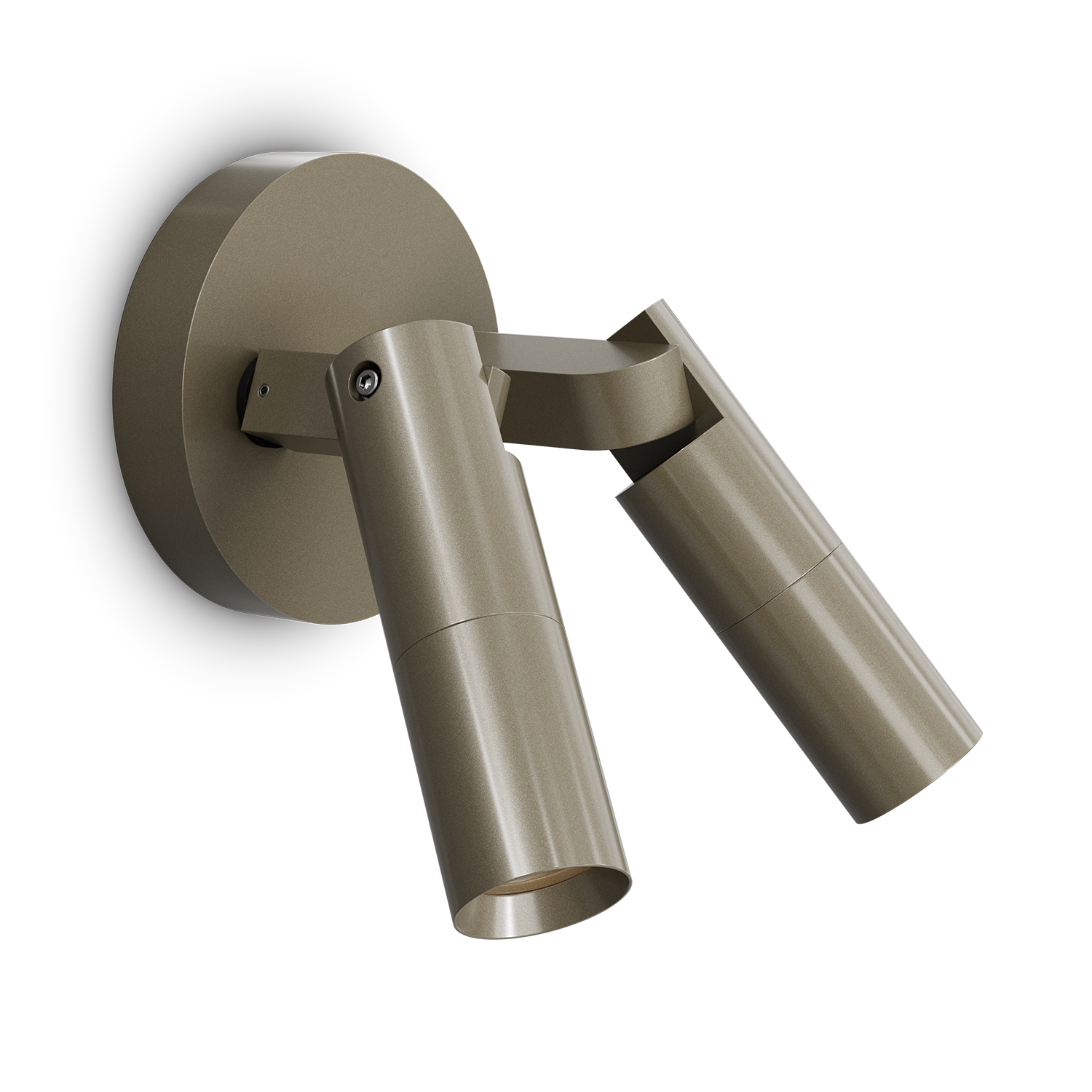

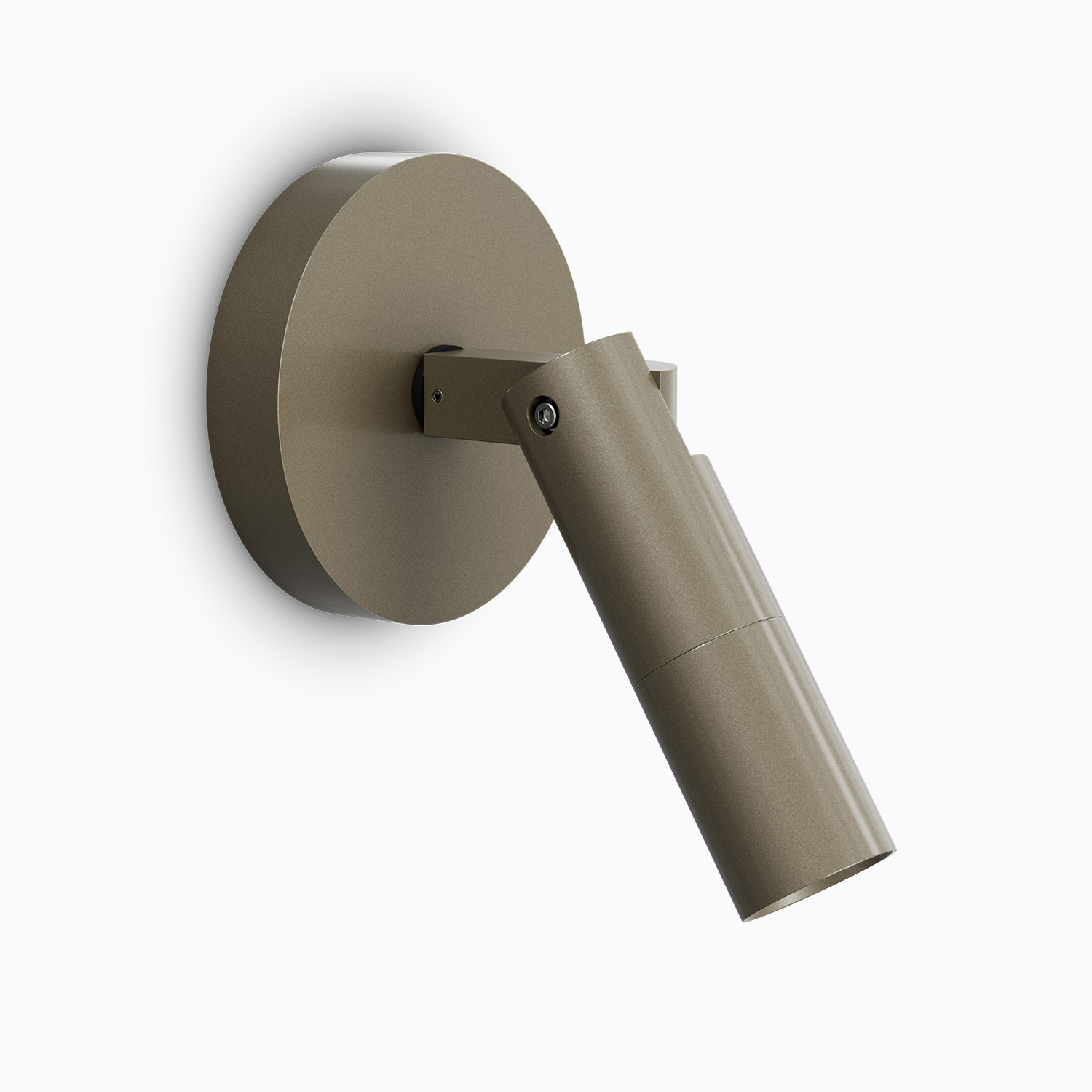

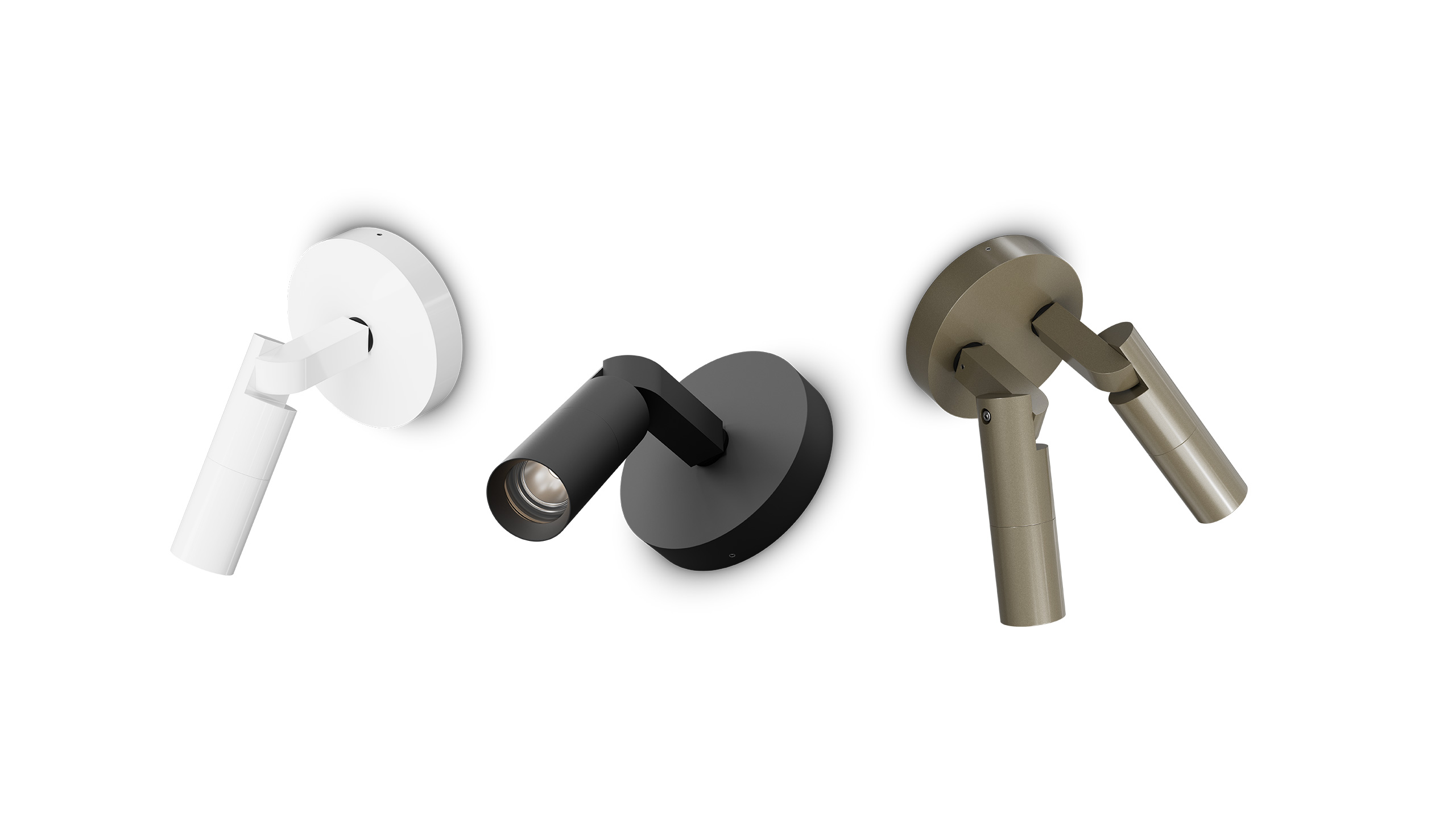

Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
180º vertical and 360º horizontal adjustment via locking swivel stem design.

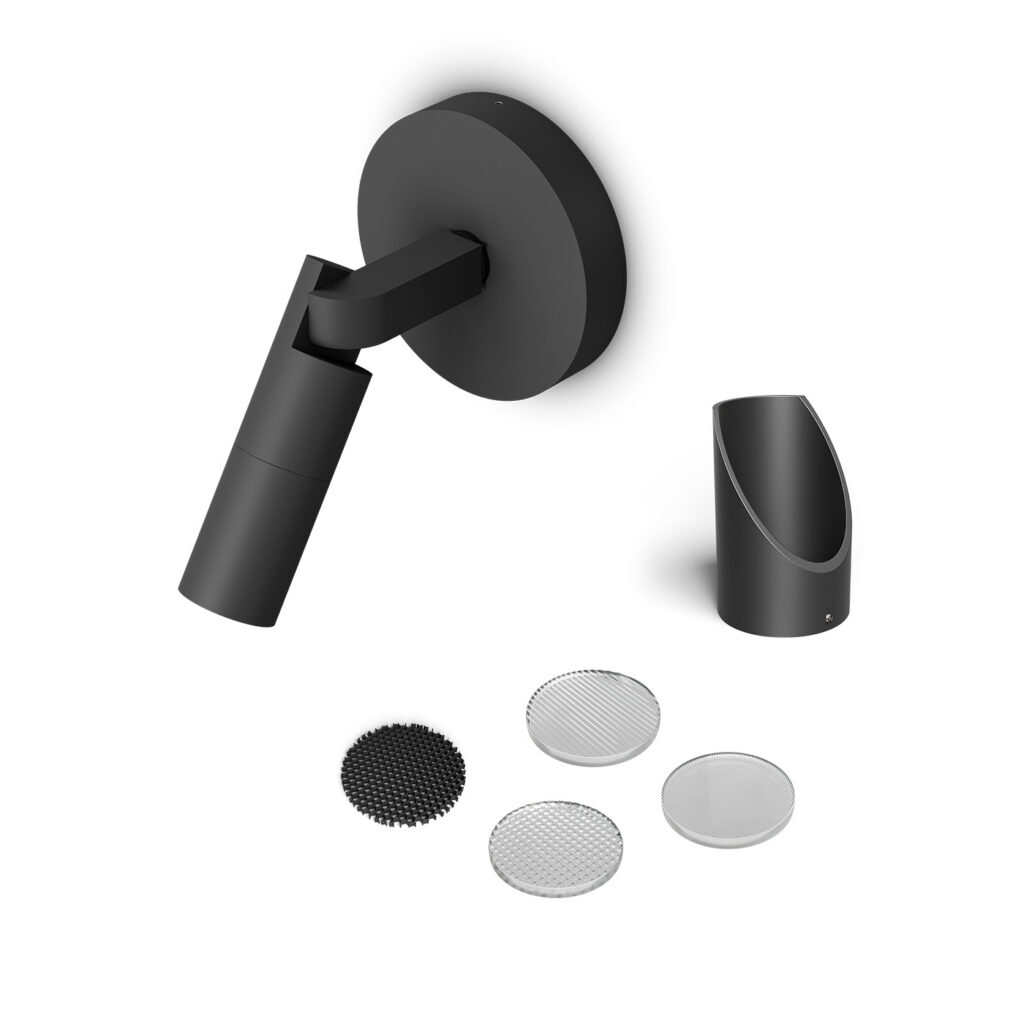

Modular components, field changeable LED optical beams, and lenses.
Adjustable Angled Glare Shield available.
Every fixture tested end of line for water tightness and light quality.

Sentinel ARTOSL11

The most compact fixture in the Sentinel Series, ARTOSL11 brings refined architectural illumination, confident nighttime visibility, and precise control to outdoor spaces.

Big Performance. Small Presence.

At just 1.65 inches in diameter, ARTOSL11 delivers up to 675 lumens per light head. Fully aimable with field-changeable optics, it puts substantial performance exactly where it’s needed.

Marine-Grade Construction.
Proven Performance.

Built on HK’s proven Accent Light platforms, corrosion-resistant finishes and architectural-grade construction deliver long-term performance in demanding outdoor environments.

Visibility by Design, Never by Excess.

Fully aimable fixture heads, multiple optical distributions, and field-changeable accessories provide precise control over coverage and light placement.

COMPATIBLE ACCESSORIES

Specifications

ARTOSL11 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.

Finish

Aluminum fixtures are anodized and then powder coated to create a robust, marine-grade, natatorium-grade finish.

Hood and Glare Shield

Clean aesthetic, non-weeping Hood Style. Set screw Angled Glare Shield. (See page 5 of Spec Sheet for details)

LIGHT OUTPUT

Optics

Narrow (29º), Medium (40º), and Wide (57º) beam spread options available. Accepts up to 3 optical accessories secured in place with metal snap ring.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K and 3000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

5 or 7W HK LED delivers 450–675 lumens per light head.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

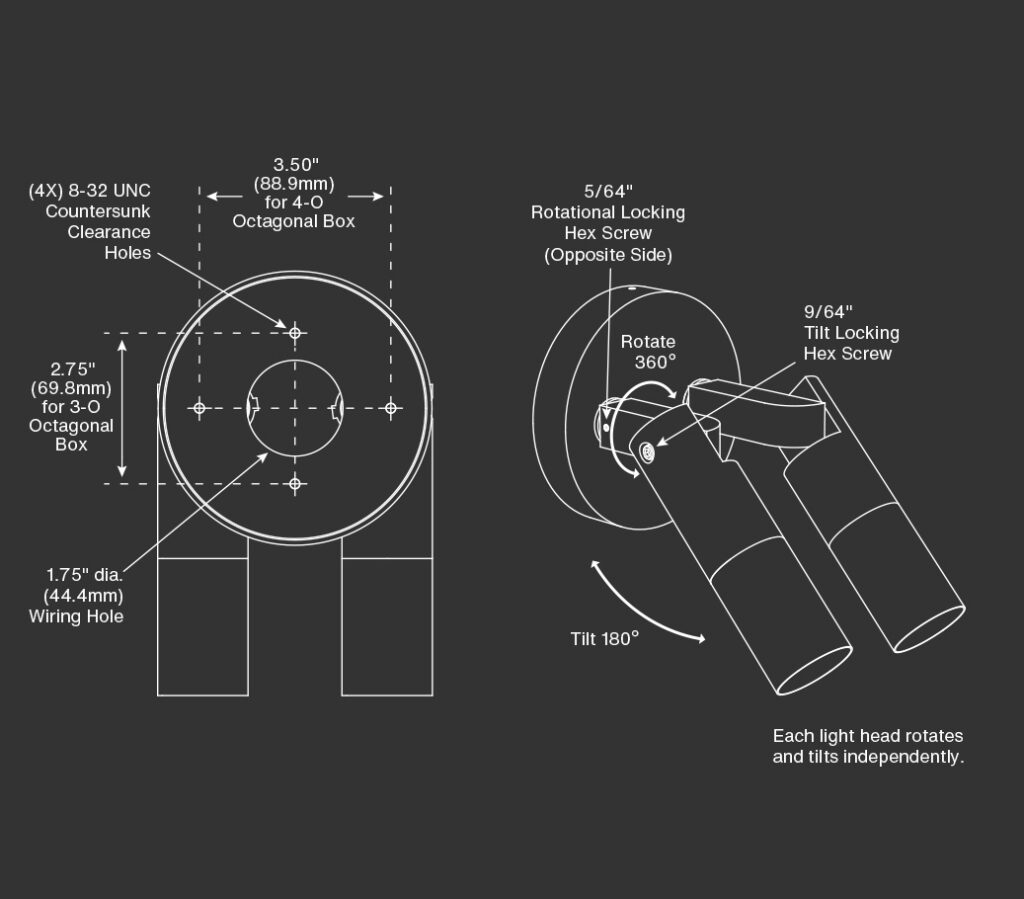

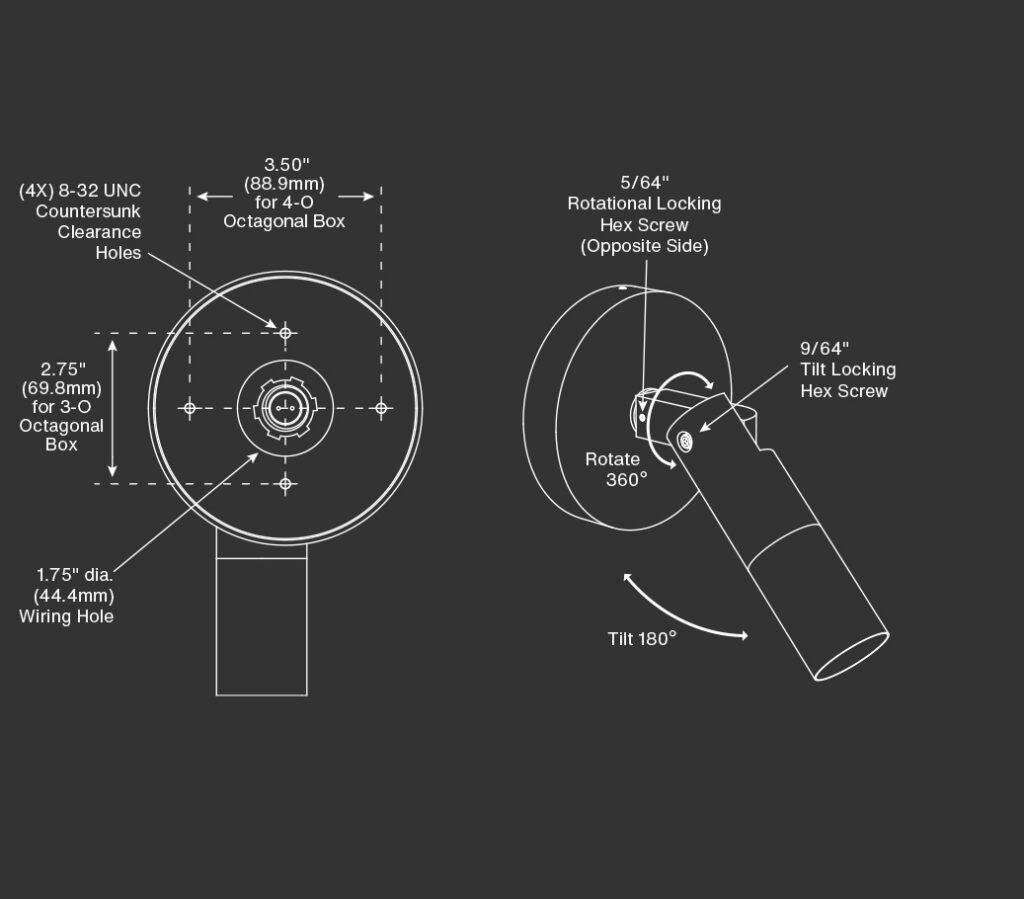

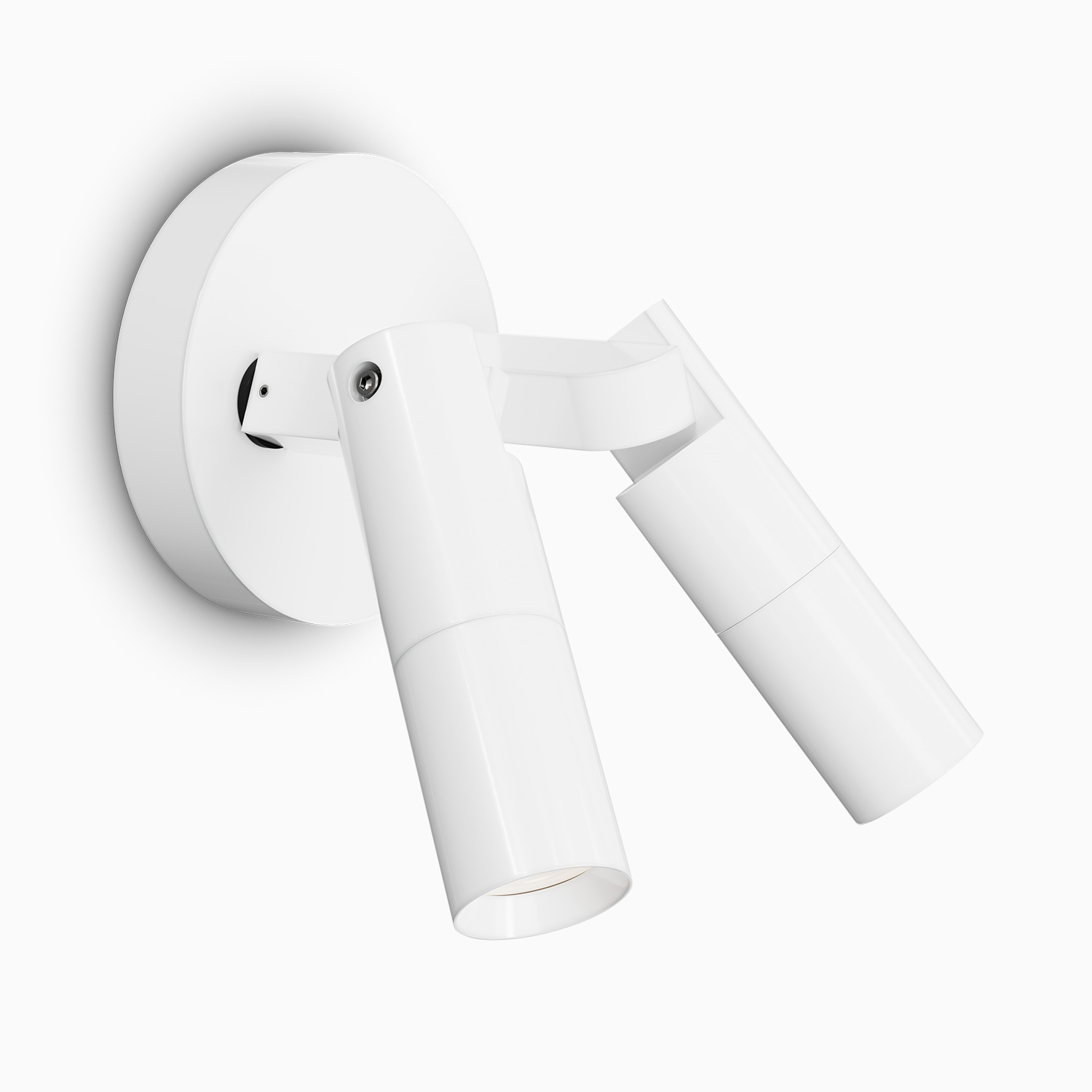

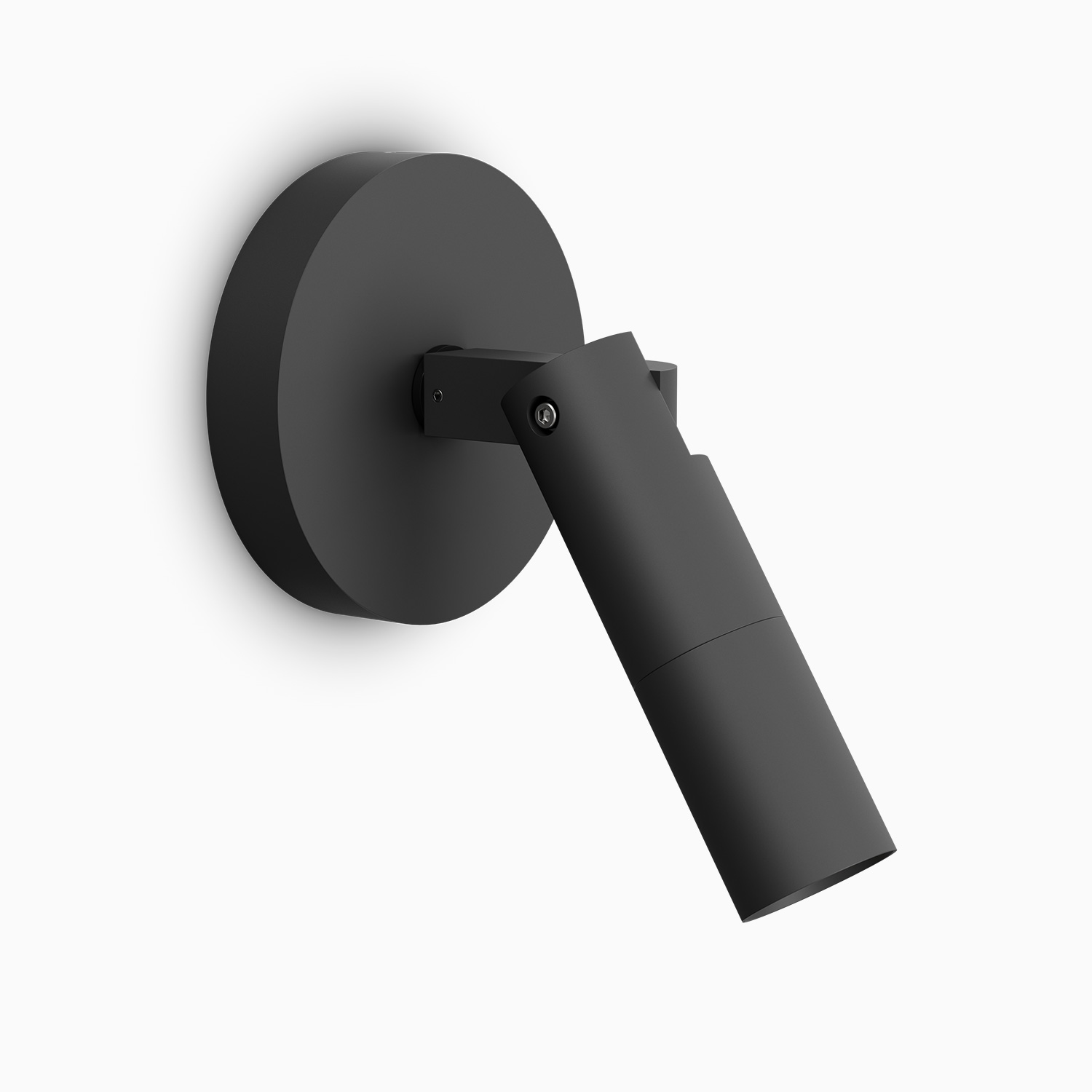

Single Area Light (Type-S1) ships pre-mounted to a ACBA1 Surface Mount Box. Double Area Light (Type-S2) ships pre-mounted to a ACBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½”-14 NPS male fitting compatible with the included Surface Mount Box and the full range of HK Lighting mounting accessories.

LISTINGS

CSA Listed for Wet Location (UL1838), IP67 Standard RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.
