ATXM-150/300
ACCESSORIES | Transformer & Wiring

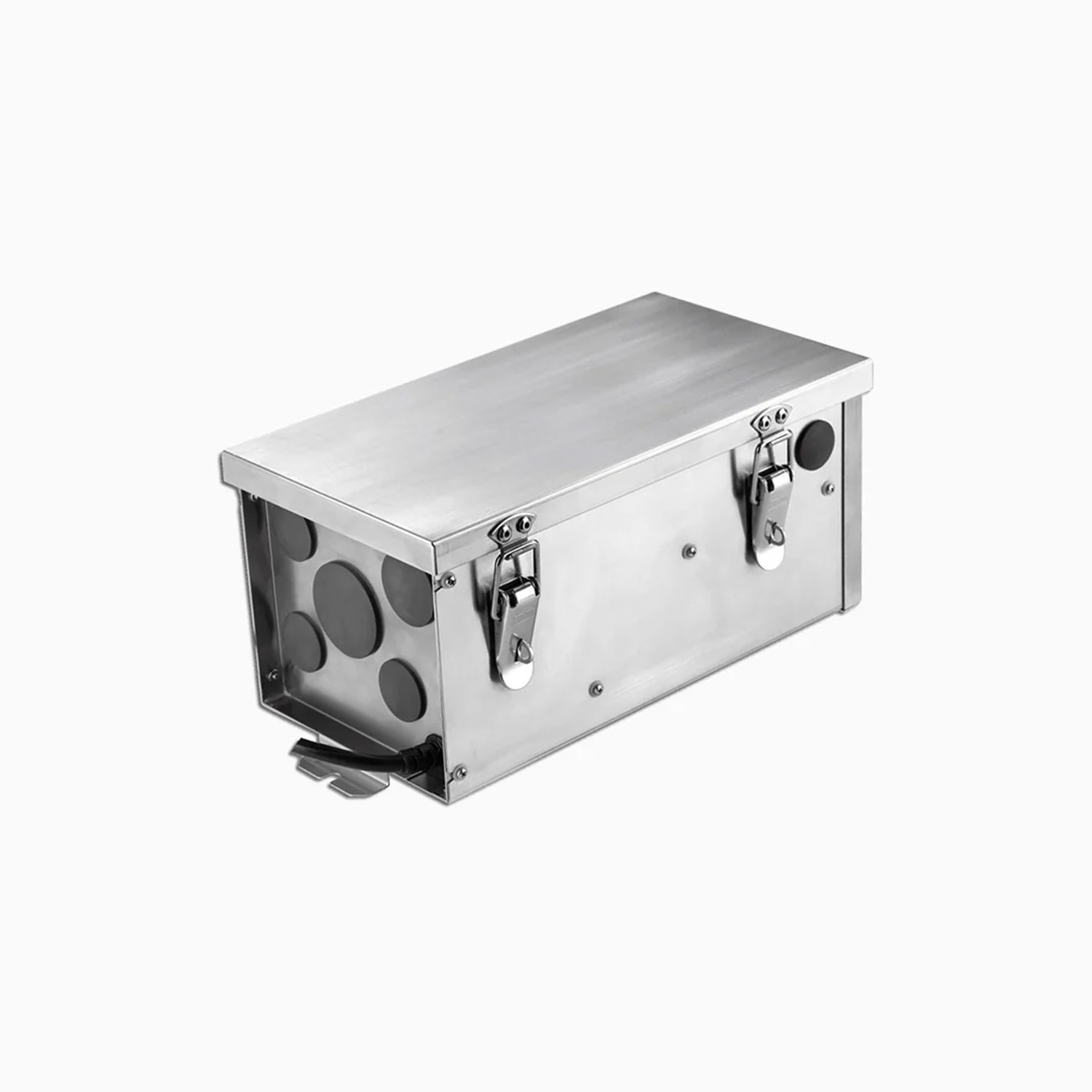

Landscape Transformer, 150W or 300W.
FEATURES
- UL Listed for Wet Location (UL1838), IP65 Standard.
- 20 gauge, 304 stainless steel maritime grade construction.
- 120VAC input – Multitap output 12/13/14/15 VAC Nominal.
- MLV phase control dimming down to 30% when transformer is loaded to 50% or greater.
- Integrated surge protection guards against lighting strikes and power surges. Surge protection is both inbound and outbound.
- Wall or Stanchion mount, pre-punched knockouts for ¾”, 1″ and 2″.
- Quick removal door and bottom panel with large wire connections.
- Weight: 12lbs (150W) or 14lbs (300W).
Specifications
ATXM-150/300 Specs
INPUT
Input Voltage Range 150W & 300W
120VAC± 10%
Input Frequency 150W & 300W
50 / 60Hz
Input Current 150W
1.25A
Input Current 300W
2.45A
Efficiency 150W & 300W
>91%
OUTPUT
12V Tap (typ.) @Max Load 150W
150MAX (11.22VAC, 13.44A)
12V Tap (typ.) @Max Load 300W
270 MAX (10.97VAC 24.67A)
13V Tap (typ.) @Max Load 150W
150MAX (11.85VAC, 12.71A)
13V Tap (typ.) @Max Load 300W
270 MAX (11.86VAC 23.66A)
14V Tap (typ.) @Max Load 150W
150MAX (12.87VAC, 11.67A)
14V Tap (typ.) @Max Load 300W
300 MAX (12.62VAC 23.87A)
15V Tap (typ.) @Max Load 150W
150MAX (13.84VAC, 10.97A)
15V Tap (typ.) @Max Load 300W
300 MAX (13.61VAC 22.05A)
OUTPUT TERMINAL BLOCK
Wire Gauge Capacity 150W & 300W
16 AWG to 2 AWG
ENVIRONMENTAL
Ingress Protection Rating 150W & 300W
IP65
Minimum Installation Spacing 150W & 300W
5″ side/top, 1 ft. above ground
Thermal Class 150W & 300W
B130°C
Knockout Plug UV Rating 150W & 300W
UL746C
PROTECTION
Thermal Switch (Primary) 150W & 300W
Auto Reset
Circuit Breaker (Secondary) 150W & 300W
Manual Reset
Surge Protector 150W & 300W
Quick snap-in/plug-in installation engineered to meet ANSI surge protection standard for multiple lightning strikes. (Ships pre-installed on all ATXM tranformer models)

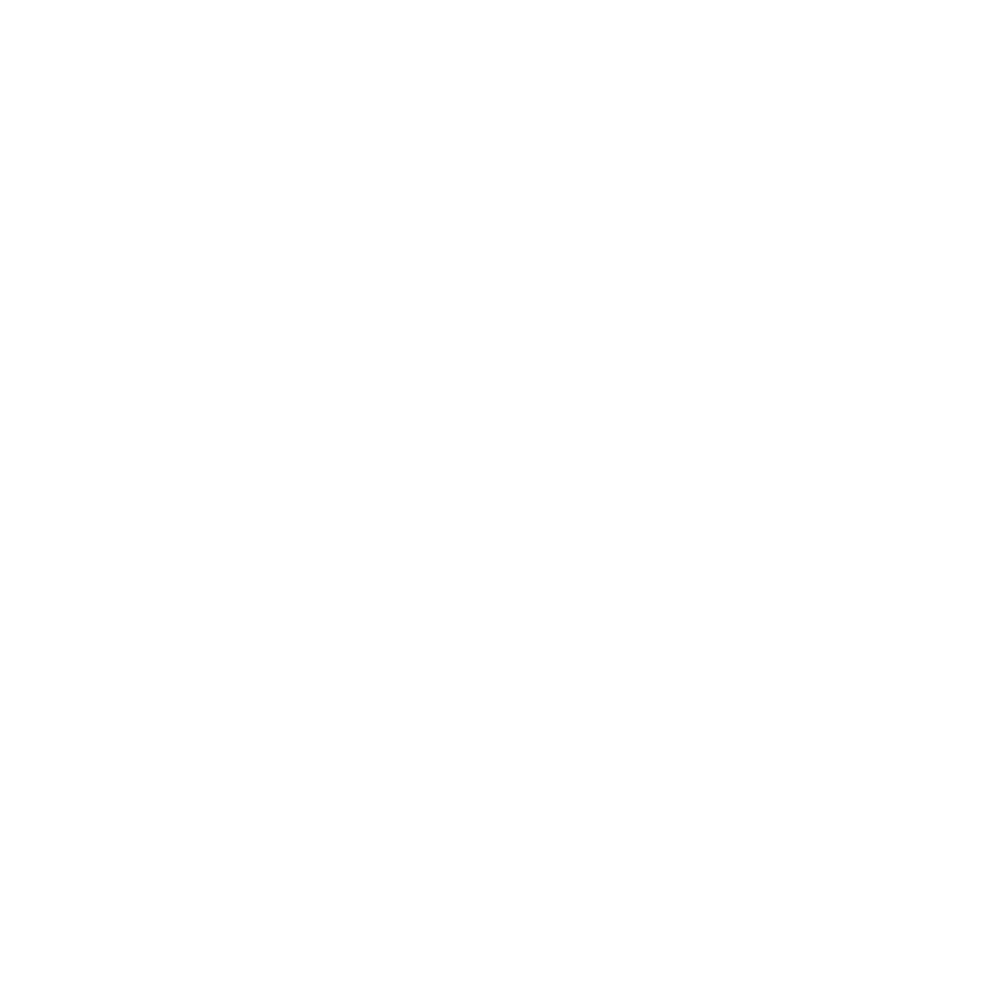

ATXM-150/300 Dimensions
