PATH  |  1.13″

3W (125lm)  |  12V  |  HK LED

360º square post light for paths, low plantings, and general area lighting.

Aluminum Black



  • Square modern 12V LED L style path light for residential landscape environments. Most appropriate for lighting pathways, open areas, and low plantings with even, low-profile illumination. Perfect for residential pathways and general illumination.
  • 3W integrated HKLED delivering 125 lumens of soft, pleasing light. 2700K, 3000K CCT.
  • Wet Location Listed, IP67 standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
  • 360° vertical and 360° horizontal adjustment via unique swivel stem design.
  • Mounting height options at 12″ and 24″.
  • Every fixture tested end of line for water tightness and light quality.
SPEC SHEET
INSTALL GUIDE
WHERE TO BUY

ARTOPLLT

Overview
Accessories
Specification

This 1″ square post light delivers up to 125 lumens in a smooth 360º spread. It’s ideal for lighting paths, open areas, and low plantings with even, low-profile illumination. Available in 12″ and 24″ heights, the clean aesthetic compliments modern landscapes.

The ARTOPLLT’s modern form delivers up to 125 lumens in a smooth 360º pool of illumination.

The 12″ ARTOPLLT Path Light sits low to the ground, providing subtle illumination for narrow residential pathways and architectural boundaries.

Accessories

Robust three-prong in-ground stakes and color-matched architectural mounts expand the ARTOPLLT Path Light performance and installation versatility.

COMPATIBLE ACCESSORIES

AMH02-06

GROUND MOUNT

6″ Spike Ground Mount

AMH02-12

GROUND MOUNT

12″ Spike Ground Mount

AJB-1

GROUND MOUNT

Brass Junction Box

ACM3

CANOPY MOUNT

4.75″ Square Canopy Mounting Plate

ACM5

CANOPY MOUNT

5″ Round Canopy Mounting Plate

AMHCS-12

GROUND MOUNT

12″ PVC Stake Ground Mount

AMHCS-06

GROUND MOUNT

6″ PVC Stake Ground Mount

ACMLJ

SURFACE MOUNT

Compact Round Surface Mount Box

ACB4.0

SURFACE MOUNT

4″ Weatherproof Round Surface Mount Box

ACB5.5

SURFACE MOUNT

5″ Weatherproof Round Surface Mount Box

ATXM

TRANSFORMER

Outdoor Magnetic Transformer

Specifications

ARTOPLLT Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

LIGHT OUTPUT

Optics

Includes Solite Soft Focus lens for smooth, even distribution of light.

Light Engine

Innovative HK LED light engine. CRI 90 Standard. 2700K, 3000K CCT.

POWER & CONTROLS

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

3W HK LED delivering 125 lumens.

Dimming

MLV or ELV Phase Control dimming.

MOUNTING

Mounts using ½”-14 NPS male fitting compatible with all HK Lighting mounting devices. Ships with extended 36″ wiring leads with two Small (Blue) LightingShrink® connectors to ensure fast and watertight connections. (See page 4 of Spec Sheet for details)

LISTINGS

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

ARTOPLLT Dimensions

The ARTOPLLT Path Light is built to your specifications. Configure light color, finish, product height and select from available mounting options. Ships in 2 to 4 weeks.

WHERE TO BUY

Products

ACCESSORIES  |  Glare Shield

Eliminates glare at the fixture.

Aluminum Black
FEATURES



  • Angled Glare Shield.

  • Eliminates visible light at the source, reducing glare.

  • Depth and 360º rotation are fully adjustable after installation, with final positioning locked in place by a set screw.

  • For use with weeping style fixture hood on the following models: ARTOAL08, ARTOAL11, ARTOA16, ARTOPL11.

  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.

SPEC SHEET
WHERE TO BUY

Specifications

AGSA Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

AGSA Dimensions

Products

ACCESSORIES | Ground Mount / Spike

Three-prong ground stake for high stability

Aluminum Bronze
FEATURES


  • Stainless Steel 3-Prong Low Voltage (12V) Spike, Bronze.

  • Highly stable machined stainless steel ground stake is powder coated bronze to blend seamlessly in residential soil and mulch environments.

  • A unique ground plate works to stabilize fixture position in soft soil conditions.

  • Available in 6″ or 12″ prong lengths.

  • For 12V installation.

  • Optional anti-theft barbs expand below grade, locking the fixture securely in place.

SPEC SHEET
WHERE TO BUY

Specifications

AMH02 Specs

BUILD

Materials

Solid billet 304 stainless steel body and hardware.

Finish

Powder coated for a robust, marine grade finish

POWER & CONTROLS

Voltage

For 12V AC/DC use only.

MOUNTING

Accepts ½”-14 NPS male fitting. Mounts directly into soil, mulch, and other ground substrates.

AMH02 Dimensions

Products

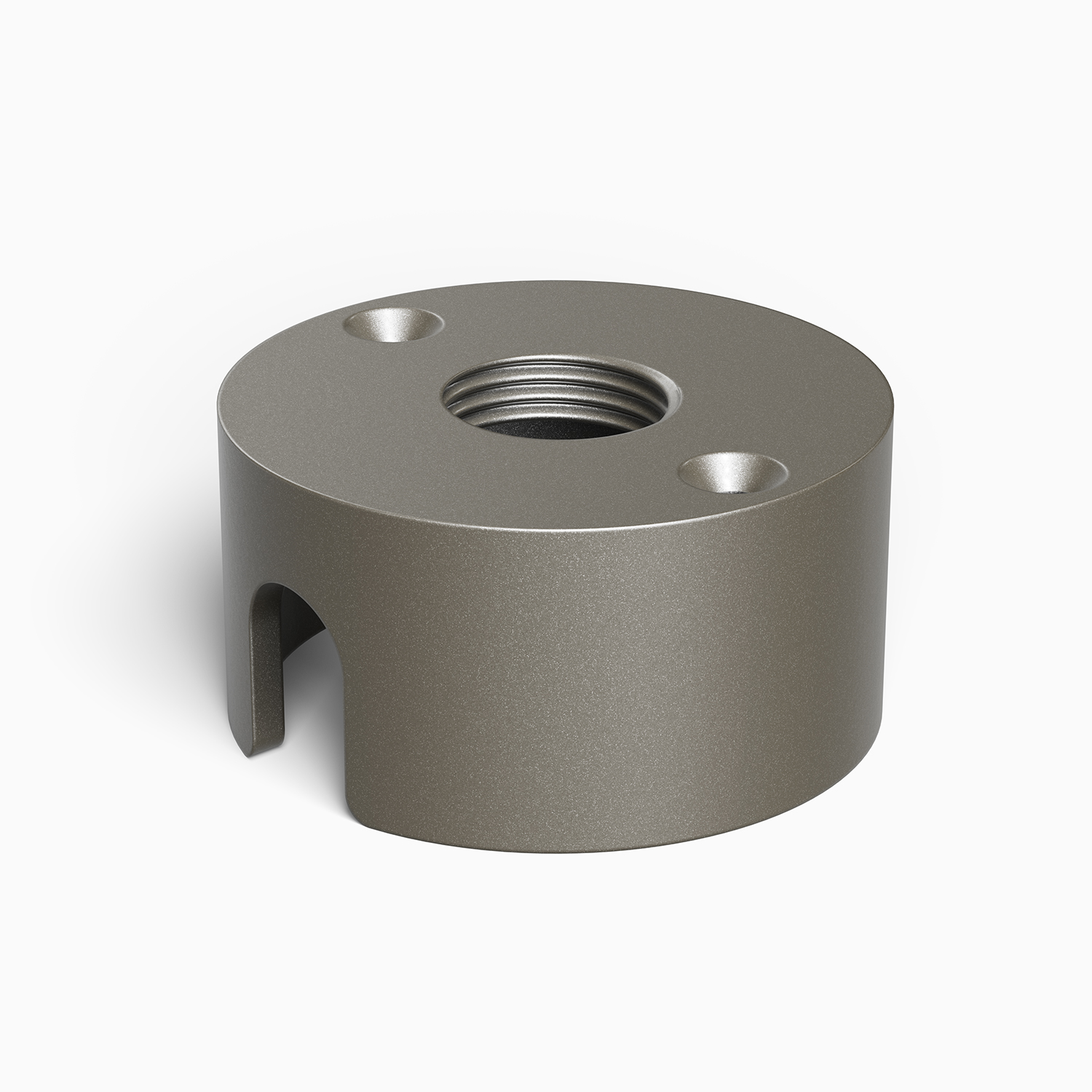

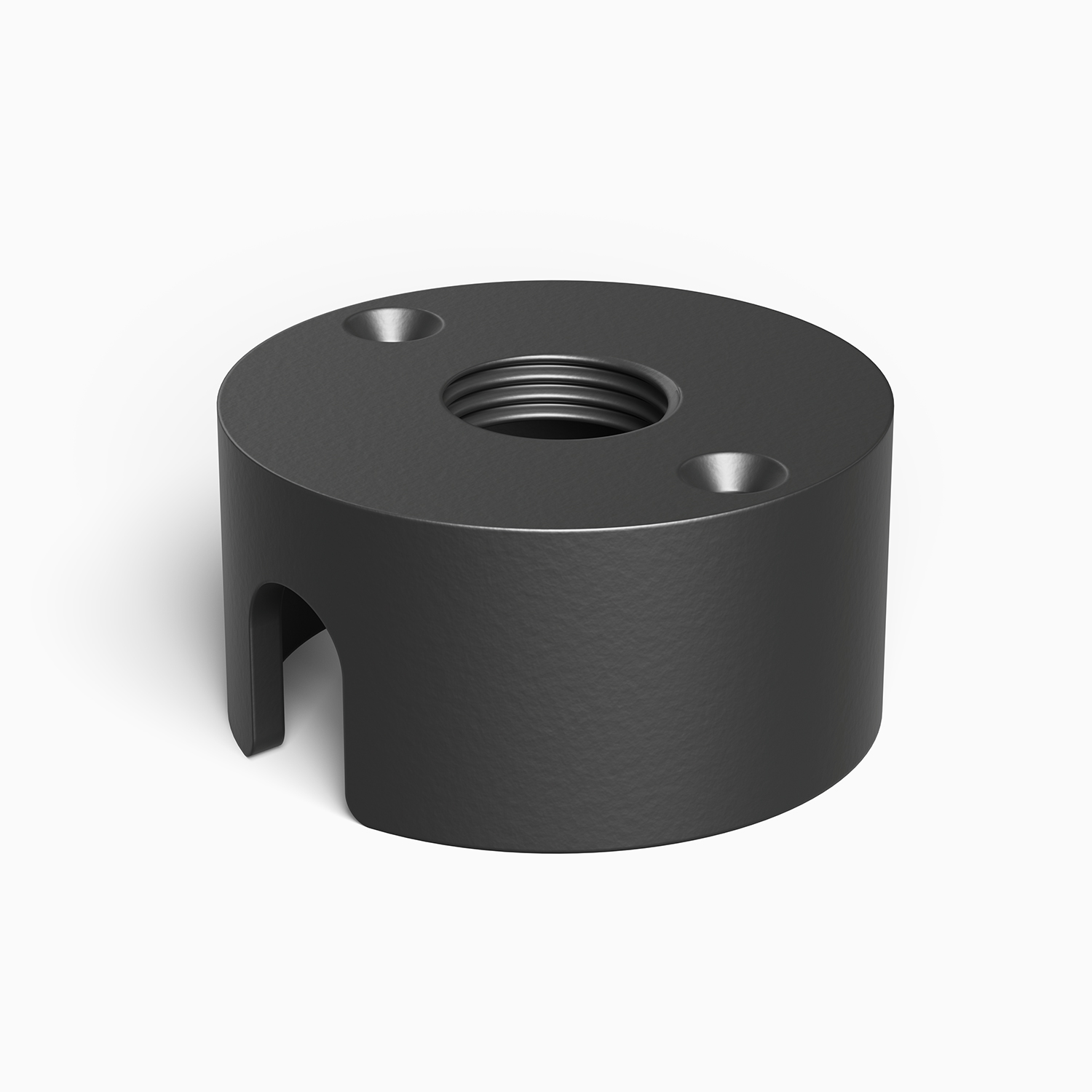

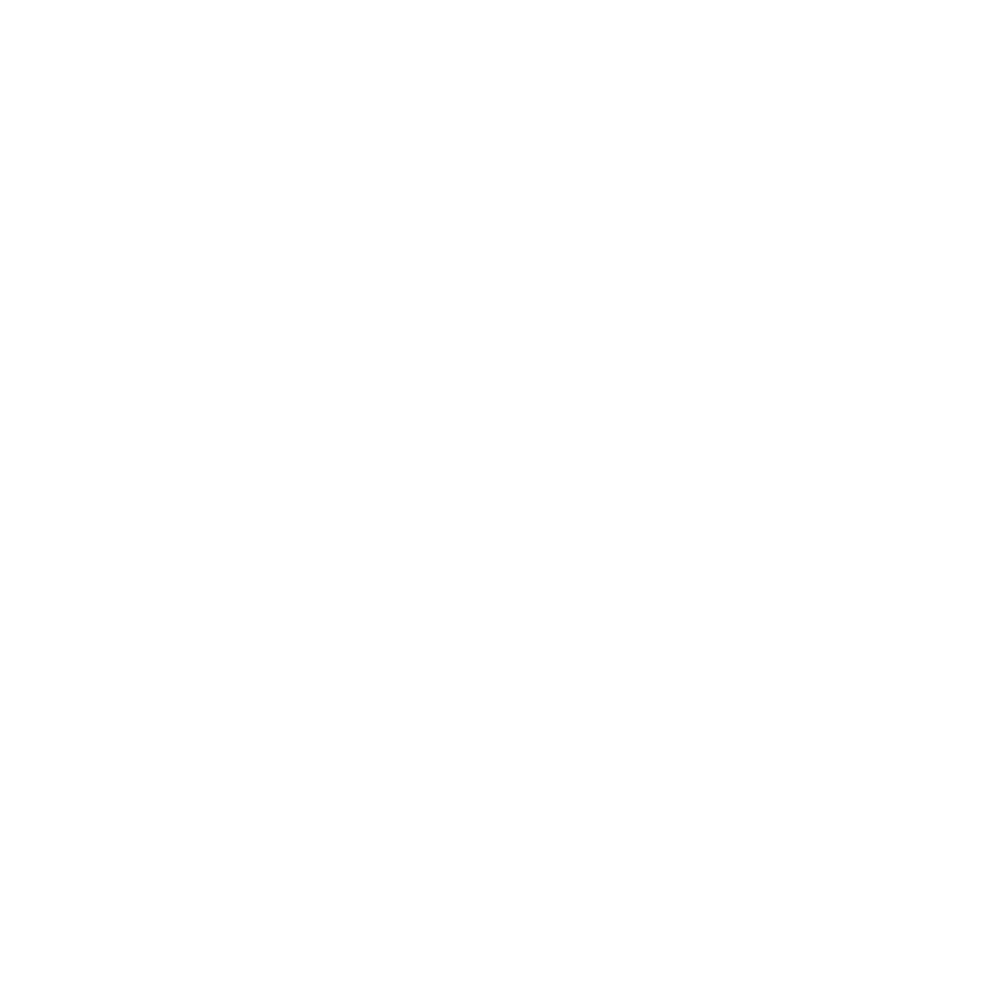

ACCESSORIES  |  Tree Mount

Small Fixture Tree Mounting Device

Aluminum Black
FEATURES


  • Cup-shape tree mounting device.

  • Crafted from aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish.

  • For 12V small fixture installation.

SPEC SHEET
WHERE TO BUY

Specifications

ATMR2 Specs

BUILD

Materials

Machined from solid billet 6061-T6 corrosion-resistant aluminum.

Finish

Aluminum materials are anodized and then powder coated for a robust, marine-grade finish.

POWER & CONTROLS

Voltage

For use with 12V AC/DC.

MOUNTING

Accepts ½”- 14 NPS male fittings.

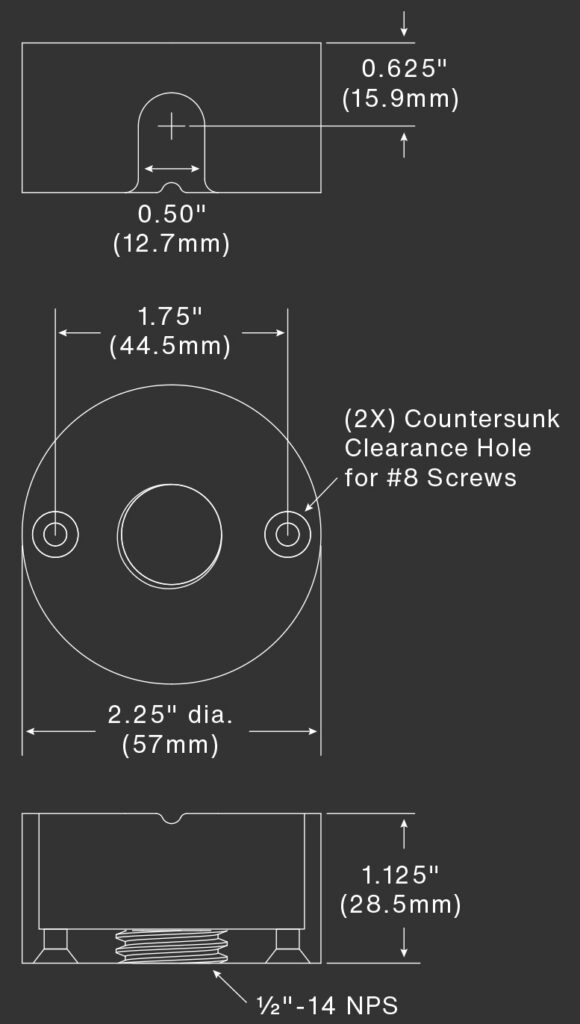

ATMR2 Dimensions

Products

ACCESSORIES  |  Ground Mount / Spike

6″ & 12″ ground stakes for accent/flood lights

FEATURES



  • PVC single prong low voltage (12V) spike with stainless steel coupler.

  • Simple residential ground stake is perfect for mounting small accent and flood light fixtures in stable soil.

  • Available in 6″ or 12″ prong lengths

SPEC SHEET
WHERE TO BUY

Specifications

AMHCS Specs

BUILD

Materials

PVC stake with solid billet 304 stainless steel coupler.

POWER & CONTROLS

Voltage

For 12V AC/DC use only.

MOUNTING

Accepts ½”-14 NPS male fitting. Mounts directly into soil, mulch, and other ground substrates.

AMHCS Dimensions

Products

ACCESSORIES  |  Ground Mount / Junction Box

Brass, concrete-pour-rated junction box

FEATURES



  • Brass junction box for in-grade wire connections, including concrete-pour environments.

  • Side walls allow one conduit entry per side, while top-entry screws and gasketing support watertight service after installation.

  • Two Bottom Entries, ½”-14 NPS. One ½”-14 NPS hub on Top Plate.

  • For use with 12V AC/DC or 120V – 277V AC power wiring

SPEC SHEET
WHERE TO BUY

Specifications

AJB-1 Specs

BUILD

Materials

Housing: Die-cast brass.
Top Plate: Machined Solid Natural Brass. Hardware: 316 stainless steel.

Finish

Superior corrosion resistant Natural Brass for a robust marine grade finish.

POWER & CONTROLS

Voltage

For use with 12V AC/DC or 120V – 277V AC power wiring.

MOUNTING

Accepts all ½”-14 NPS male fittings.

AJB-1 Dimensions

ACM3

ACCESSORIES  |  Canopy Mount

Square canopy cover for 3O, 4O, and 4S J-boxes

Aluminum Black
FEATURES



  • Square Canopy Cover.
  • Complements fixtures mounted to architectural surfaces and fits standard 3O, 4O, and 4S junction boxes.

  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.

  • ½”-14 NPS female thread, compatible with all HK Lighting mountable fixtures.
SPEC SHEET
WHERE TO BUY

Specifications

ACM3 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

MOUNTING

Accepts all ½”-14 NPS male fittings.

ACM3 Dimensions

Products

ACCESSORIES  |  Canopy Mount

Round canopy cover for 3O and 4O J-boxes

Aluminum Black
FEATURES



  • Round Canopy Cover.

  • Complements fixtures mounted to architectural surfaces and fits standard 3O, 4O, and 4S junction boxes.

  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.

  • ½”-14 NPS female thread, compatible with all HK Lighting mountable fixtures.
SPEC SHEET
WHERE TO BUY

Specifications

ACM5 Specs

BUILD

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

MOUNTING

Accepts all ½”-14 NPS male fittings.

ACM5 Dimensions

Products

ACCESSORIES  |  Surface Mount Box

Surface box for exposed conduit

Aluminum Black
FEATURES



  • 3.5″ weatherproof, machined surface mount junction box.

  • Crafted from arcraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.

  • Designed for exposed conduit and contains (4) .5″ side access knockouts.

  • Ample room for multiple connections and a small power supply unit.

  • For use with 12V AC/DC or 120V – 277V AC power wiring.

SPEC SHEET
WHERE TO BUY

Specifications

ACB4.0 Specs

BUILD

Materials

Housing: Die-cast aluminum.
Top Plate: Machined Solid billet 6061-T6 corrosion resistant aluminum.
Hardware: 316 stainless steel.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

POWER & CONTROLS

Voltage

For use with 12V AC/DC or 120V – 277V AC power wiring.

MOUNTING

Accepts all ½”-14 NPS male fittings. Standard (4) each of ½” knockouts.

ACB4.0 Dimensions

Products

ACCESSORIES  |  Surface Mount Box

Architectural surface box for structural mounting

Aluminum Black
FEATURES



  • 5.5″ weatherproof, machined surface mount junction box.

  • Highly aesthetic and crafted from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.

  • Designed for bottom-feed wiring and to blend seamlessly with fixture finishes.

  • Ample room for multiple connections and a small power supply unit.

  • For use with 12V AC/DC or 120V – 277V AC power wiring

SPEC SHEET
WHERE TO BUY

Specifications

ACB5.5 Specs

BUILD

Materials

Machined from billet 6061-T6 corrosion resistant aluminum.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish.

POWER & CONTROLS

Voltage

For use with 12V AC/DC or 120V – 277V AC power wiring.

MOUNTING

Accepts all ½”-14 NPS male fittings.

ACB5.5 Dimensions
